- RS 제품 번호:
- 267-9636
- 제조사 부품 번호:
- B68G-NNK-AR3-RLN
- 제조업체:
- Norgren
- RS 제품 번호:
- 267-9636
- 제조사 부품 번호:
- B68G-NNK-AR3-RLN
- 제조업체:
- Norgren
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- CZ
제품 세부 사항

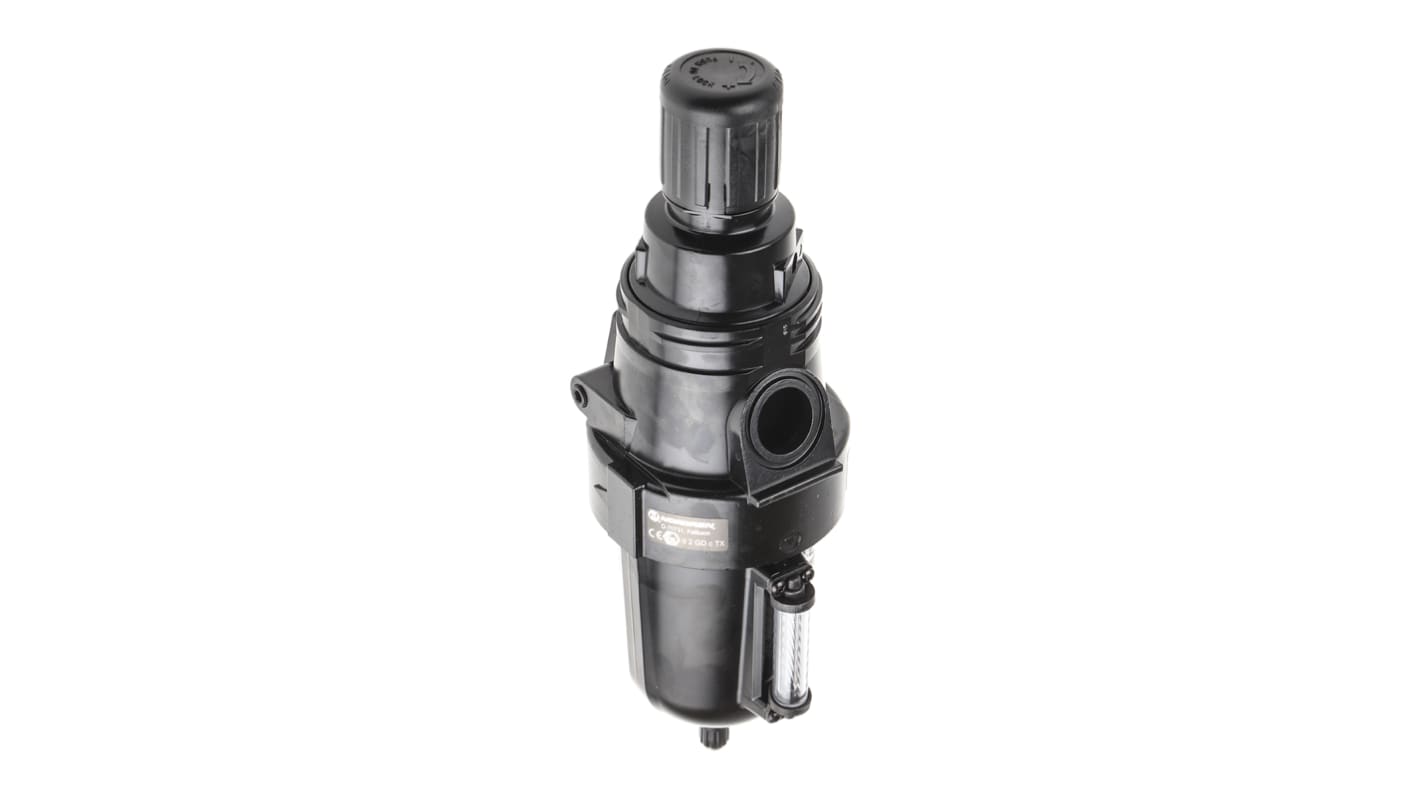

Filter/Regulator
Combined filter and regulator in one, integral unit
Large filter element area provides minimum pressure drop
40μm sintered filter element
Aluminium bowl and body
Pyrex liquid level indicator
Auto drain
Weight 2.9kg
Large filter element area provides minimum pressure drop
40μm sintered filter element
Aluminium bowl and body
Pyrex liquid level indicator
Auto drain
Weight 2.9kg
Regulator, Filter/Regulator
These high capacity units, with large valve and diaphragm, have excellent flow and regulation characteristics. The redesigned, upgraded products are fully interchangeable with existing Olympian® 15 series units. Each fits into a G 3/4 or G1 ported yoke assembly, ordered separately. In each case the body, bonnet and valve are in aluminium, the push-to-lock adjusting knob is in acetal resin and elastomers are synthetic rubber. Supplied with O rings (1in/1out).
사양
속성 | 값 |
---|---|
Port Connection | G 1 1/2, G 3/4 |
Maximum Operating Pressure | 17 bar |
Manufacturer Series | B68G |
Drain Type | Automatic |
Filtration Size | 40µm |
Pressure Gauge Port | Rc 1/8 |
Pressure Gauge Port Thread Size | 1/8 in |
Port Connection Thread Size | 1-1/2 in |
Maximum Ambient Operating Temperature | +80°C |
Minimum Operating Pressure | 0.3bar |
Port Connection Thread Standard | G |
Minimum Ambient Operating Temperature | -20°C |
Ambient Operating Temperature Range | -20 → +80°C |
