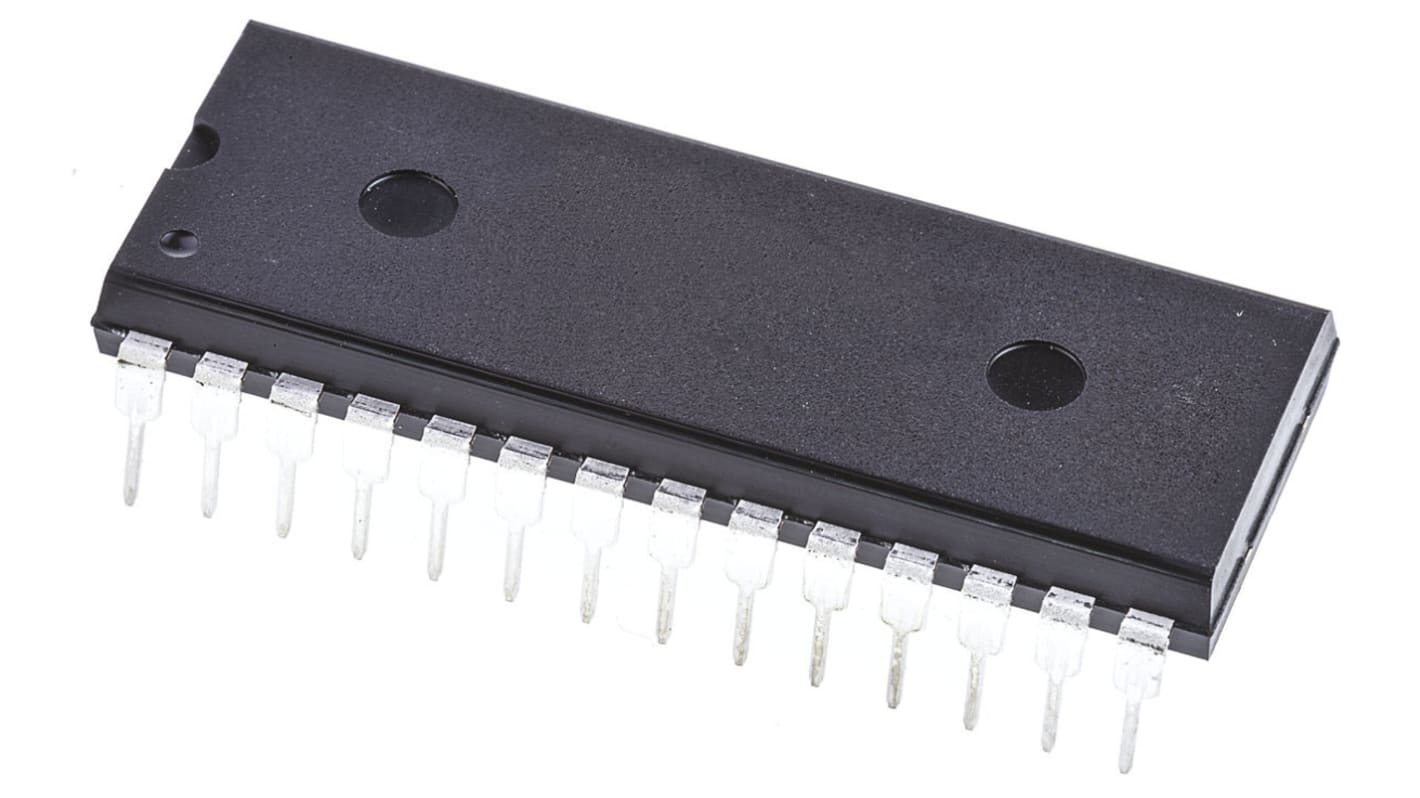

IDT 18kbit FIFO Memory, 28-Pin PDIP, IDT7203L12TPG
- RS 제품 번호:
- 170-2091
- 제조사 부품 번호:
- IDT7203L12TPG
- 제조업체:
- IDT
단종
- RS 제품 번호:
- 170-2091
- 제조사 부품 번호:
- IDT7203L12TPG
- 제조업체:
- IDT
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | IDT | |
| Memory Size | 18kbit | |
| Organisation | 2K x 9 bit | |
| Data Bus Width | 9bit | |
| Bus Directional | Bi-Directional | |
| Configuration | Dual | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 28 | |
| Expansion Support | Yes | |
| Dimensions | 34.3 x 7.62 x 3.3mm | |
| Length | 34.3mm | |
| Width | 7.62mm | |
| Number of Bits per Word | 9bit | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Minimum Operating Temperature | 0 °C | |
| Number of Words | 2K | |
| Height | 3.3mm | |
| Maximum Operating Temperature | +70 °C | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Random Access Time | 12ns | |
