Vent-Axia VSP56034 VSP Square Wall Mounted Plate Fan, 3.11m³/s, 57dB, Lightweight, Thermal Overload Protection, Duct
- RS 제품 번호:
- 135-6504
- 제조사 부품 번호:
- VSP56034
- 제조업체:
- Vent-Axia
59 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩1,425,640.199
| 수량 | 한팩당 |
| 1 + | ₩1,425,640.199 |
- RS 제품 번호:
- 135-6504
- 제조사 부품 번호:
- VSP56034
- 제조업체:
- Vent-Axia
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

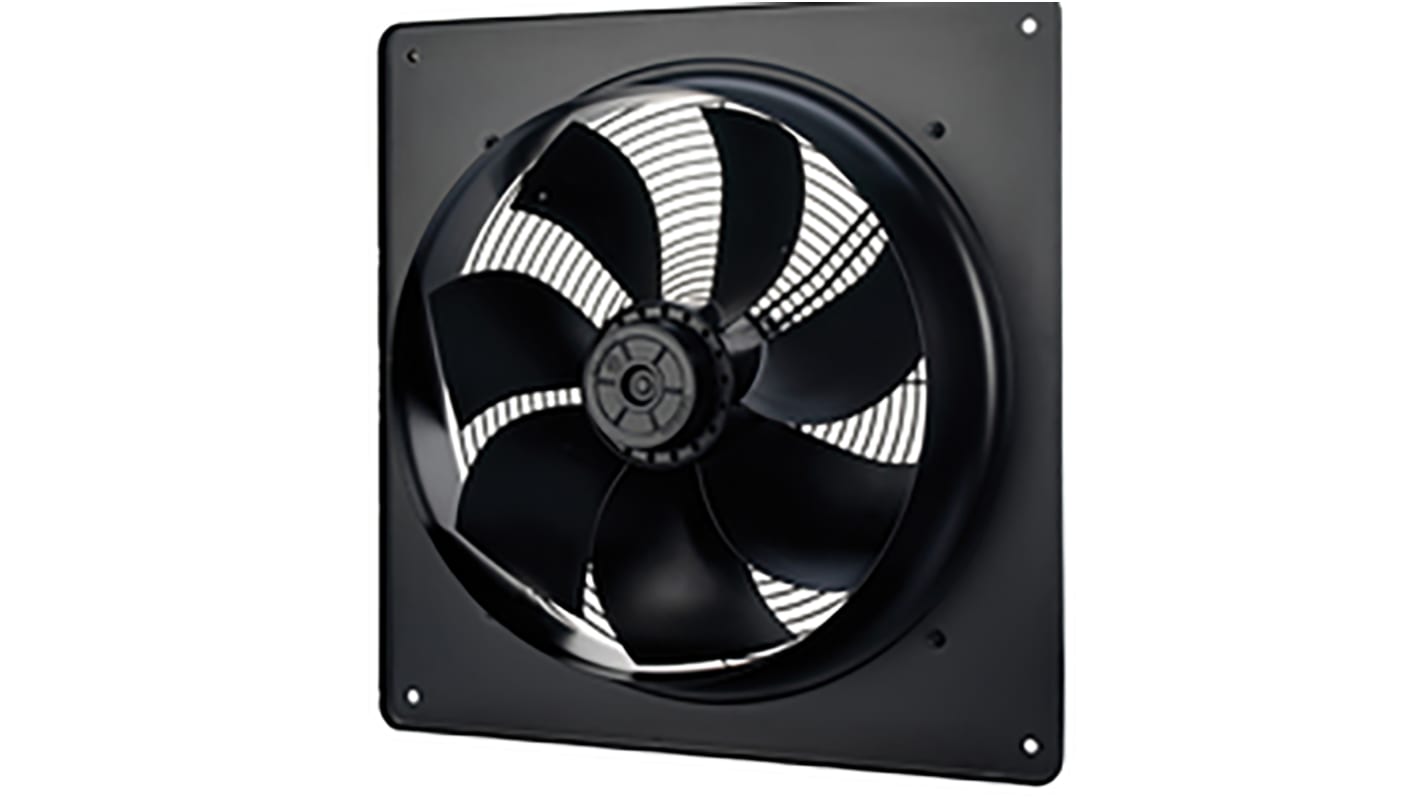

Vent-Axia Plate Mounted Sickle Fan
The Vent-Axia plate mounted sickle fan has an airflow of 3.11m³/s and a supply voltage rating of 400VAC. It is the latest innovation designed with the FE2 Owlett impeller in a purpose-designed mounting plate or duct casing. This ensures optimum airflow and minimum noise in all installations. Additionally, the impellers are matched to motors with the latest in external rotor motor technology to ensure maximum efficiency. It is available with a height of 725mm, width of 725mm and depth of 245mm.
Features and Benefits
Fan speed of 1280rpm
Noise level is 57dB(A)
Power consumption of 742W
AC operation
Blade diameter is 568mm
Direction of curve is backward
Ball bearing
Electronic commutation
Maximum current is 8.8A
Thermal overload protection
Lead wire termination
Noise level is 57dB(A)
Power consumption of 742W
AC operation
Blade diameter is 568mm
Direction of curve is backward
Ball bearing
Electronic commutation
Maximum current is 8.8A
Thermal overload protection
Lead wire termination
Applications
Factories
Warehouses
Warehouses
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
사양
속성 | 값 |
|---|---|
| Fan Type | Axial Plate Fan |
| Air Flow | 3.11m³/s |
| Noise Level | 57dB |
| Mounting | Wall Mounted |
| Face Dimensions | 725 x 725 x 245mm |
| Depth | 245mm |
| Duct Size | 560mm |
| Supply Voltage | 415 V ac |
| Special Features | Lightweight, Thermal Overload Protection |
| Termination Type | Leadwires |
| Configuration | Square |
| Series | VSP |
