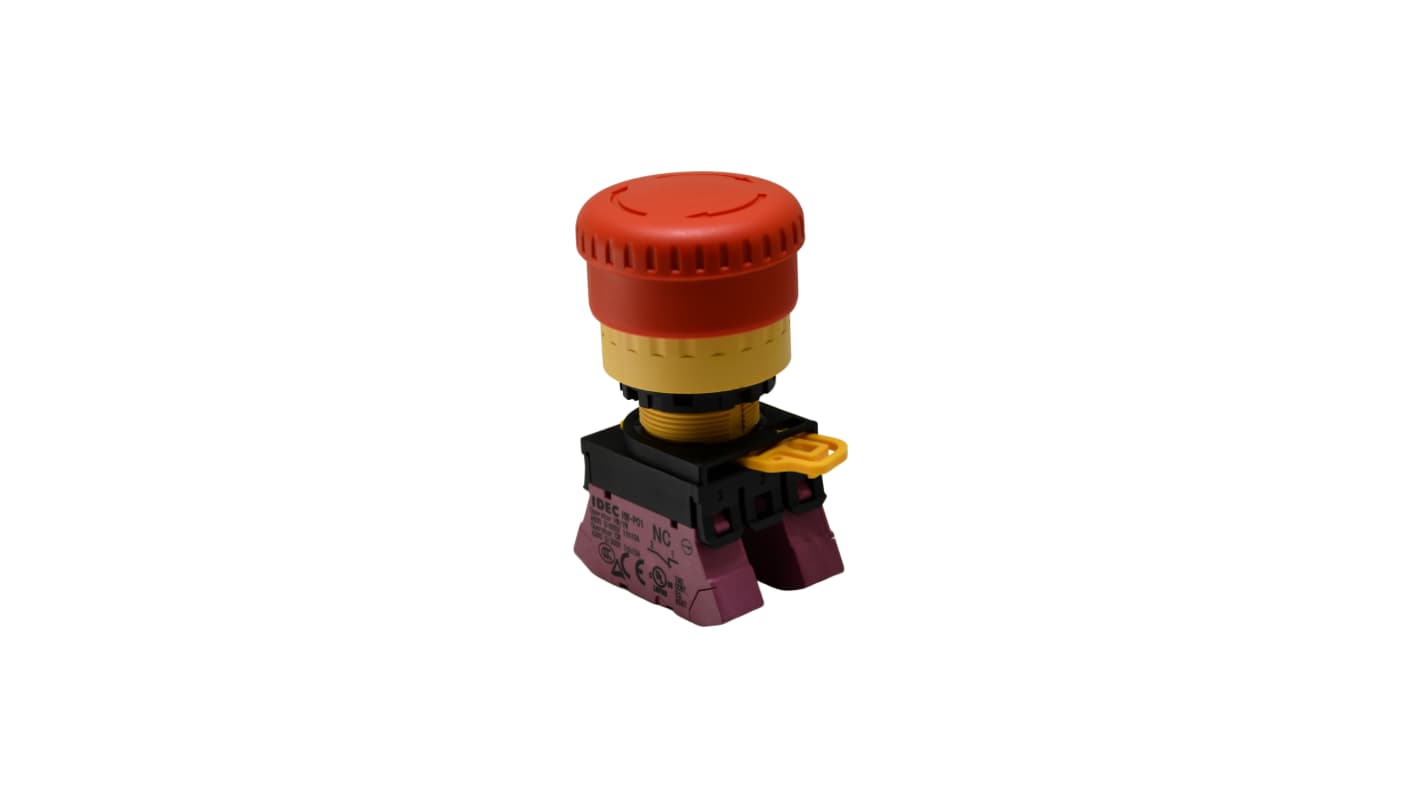

Idec YW1B Series Push Lock Turn Reset Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2XNC, IP65, IP67, IP69K

The Idec 22 XW Series emergency stop switches feature two reset operations (push lock pull or turn reset) and a reverse energy structure. They are equipped with a safety lock mechanism (IEC60947-5-5 6.2) and a direct opening action mechanism (IEC60947-5-5 5.2, IEC60947-5-1 annex K). These switches offer protection degrees IP65, IP67 (IEC60529), and IP69K (ISO20653).

Rated insulation voltage (Ui) 250V
Rated current (Ith) 5A
Mechanical Life 250,000 times min
Compact unibody structure with 3-terminal configuration suitable for a wide range of applications in limited space
One contact (blue) can be used as a lamp terminal or as a NO contact for monitoring
Status indicator and escape structure
UL type 4X certified making them the ideal E-stops for use in wet, windy, and snowy environments
Safer E-stop with reverse energy structure
