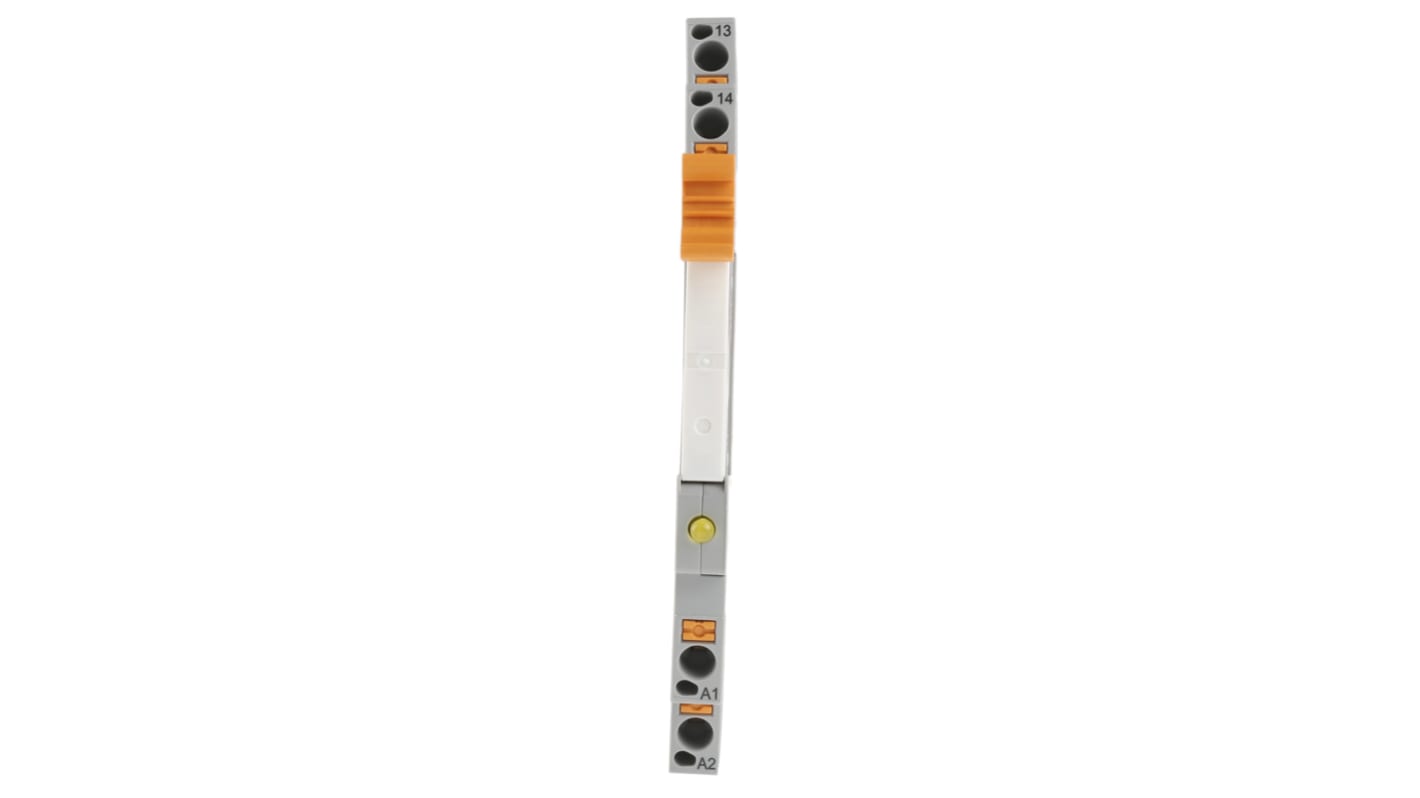

Phoenix Contact RIF-0-RPT-12DC/1 Series Interface Relay, DIN Rail, 12V dc Coil, SPST, 16mA
- RS 제품 번호:
- 794-3765
- Distrelec 제품 번호:
- 304-02-032
- 제조사 부품 번호:
- 2903362
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩14,781.00
재고있음
- 추가로 2026년 4월 20일 부터 157 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩14,781.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 794-3765
- Distrelec 제품 번호:
- 304-02-032
- 제조사 부품 번호:
- 2903362
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Interface Relay | |
| Coil Resistance | 847Ω | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | RIF-0-RPT-12DC/1 | |
| Terminal Type | Plug-In | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Coil Current | 16mA | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 60°C | |
| Width | 66mm | |
| Length | 6.2mm | |
| Height | 93mm | |
| Standards/Approvals | EAC, DNV GL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Interface Relay | ||
Coil Resistance 847Ω | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series RIF-0-RPT-12DC/1 | ||
Terminal Type Plug-In | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Coil Current 16mA | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 60°C | ||
Width 66mm | ||
Length 6.2mm | ||
Height 93mm | ||
Standards/Approvals EAC, DNV GL | ||
- COO (Country of Origin):
- CZ
Phoenix Contact Interface Relay, 5ms Typical Response Time, Polarised Drive Type - RIF-0-RPT-12DC/ 1 - 2903362
Looking for a reliable way to control large electrical circuits? Go with this interface relay from Phoenix Contact. By providing it with 12V DC, you can safely activate or deactivate a connected component with a voltage rating up to 250V AC/DC. The unit typically draws just 16mA, so you can trust it to use minimal power.
Mounting the relay's a breeze – just snap it straight onto a DIN rail in any position. As it's tested up to 6kV, it holds up against sudden electrical surges. You can put it to work in harsh settings, thanks to a broad operating temperature range between -40°C and +60°C. You'll find devices like this commonly used in automation networks and powerful radio-electronic installations.
Features & Benefits
• Rated service life of around 20 million cycles, so it's highly reliable
• Bright yellow LED display lets you monitor operating voltage at a glance
• Accepts conductors in a cross-section range between 0.14 and 1.5mm² for wiring flexibility
• Measures just 6.2 (W) x 93 (H) x 66mm (D), so it's suitable for tight areas
• IP20 rating on the base means it's touch-proof and shielded from objects larger than 12mm
