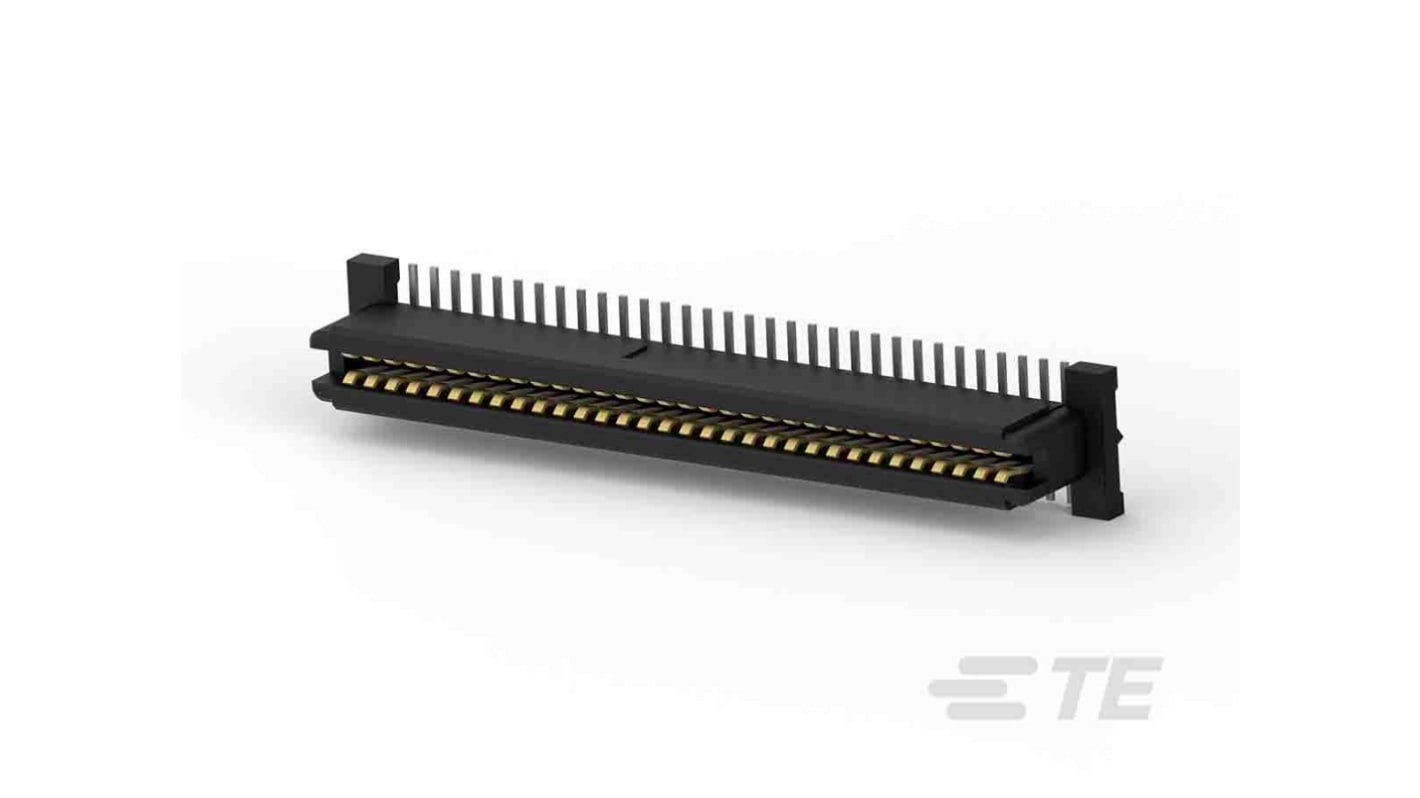

TE Connectivity Vertical Female Edge Connector, Surface Mount, 64-Contacts, 1mm Pitch, 2-Row, Solder Termination
- RS 제품 번호:
- 189-5774
- 제조사 부품 번호:
- 5146893-1
- 제조업체:
- TE Connectivity
1300 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(650개가 1릴안에)
₩4,263.953
| 수량 | 한팩당 | Per Reel* |
| 650 - 650 | ₩4,263.953 | ₩2,771,793.557 |
| 1300 - 1950 | ₩4,179.433 | ₩2,716,294.90 |
| 2600 + | ₩4,094.913 | ₩2,662,029.546 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 189-5774
- 제조사 부품 번호:
- 5146893-1
- 제조업체:
- TE Connectivity
참조 문서
제정법과 컴플라이언스
해당 안됨
제품 세부 사항
TE Connectivity 1.0mm Free Height (FH) IEEE 1386 Plug and Receptacle Connectors
Free Height (FH) IEEE 1386 SMT parallel stacking plug and receptacle connectors with high density packaging on a 1.0mm centreline for use in mezzanine board stacking applications. These Free Height (FH) IEEE 1386 stacking connectors have black UL 94V-0 thermoplastic housings, gold plated contacts and locating posts (apart from stock numbers 680-5261, 680-5264 and 720-1304) that enable accurate placement by hand or machine. Each of these Free Height (FH) IEEE 1386 connectors can achieve various stacking heights dependent on the mating connector that is selected, please refer to datasheet for details.
Standards
Meets EIA-700 AAAB specifications for IEEE 1386 applications
Approvals
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
1.0mm TE Connectivity IEEE 1386 Connectors
사양
속성 | 값 |
|---|---|
| Body Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 64 |
| Number of Rows | 2 |
| Pitch | 1mm |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Contact Material | Phosphor Bronze |
| Current Rating | 1A |
| Voltage Rating | 250 V ac |
| Housing Material | Thermoplastic |
| Depth | 6.05mm |
| Series Number | 5146893 |
| Length | 34.4mm |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -55°C |
| Width | 5.37mm |
