- RS 제품 번호:
- 264-5166
- 제조사 부품 번호:
- 40064 IB
- 제조업체:
- Savigny
2 <재고있음> 5-9영업일내 홍콩 발송
단가 개당가격(2개가 1팩안에)
₩35,545.014
| 수량 | 한팩당 | 한팩당* |
| 2 - 8 | ₩35,545.014 | ₩71,090.029 |
| 10 - 18 | ₩34,548.022 | ₩69,096.044 |
| 20 - 78 | ₩33,126.705 | ₩66,253.409 |
| 80 + | ₩32,202.158 | ₩64,404.316 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 264-5166
- 제조사 부품 번호:
- 40064 IB
- 제조업체:
- Savigny
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항

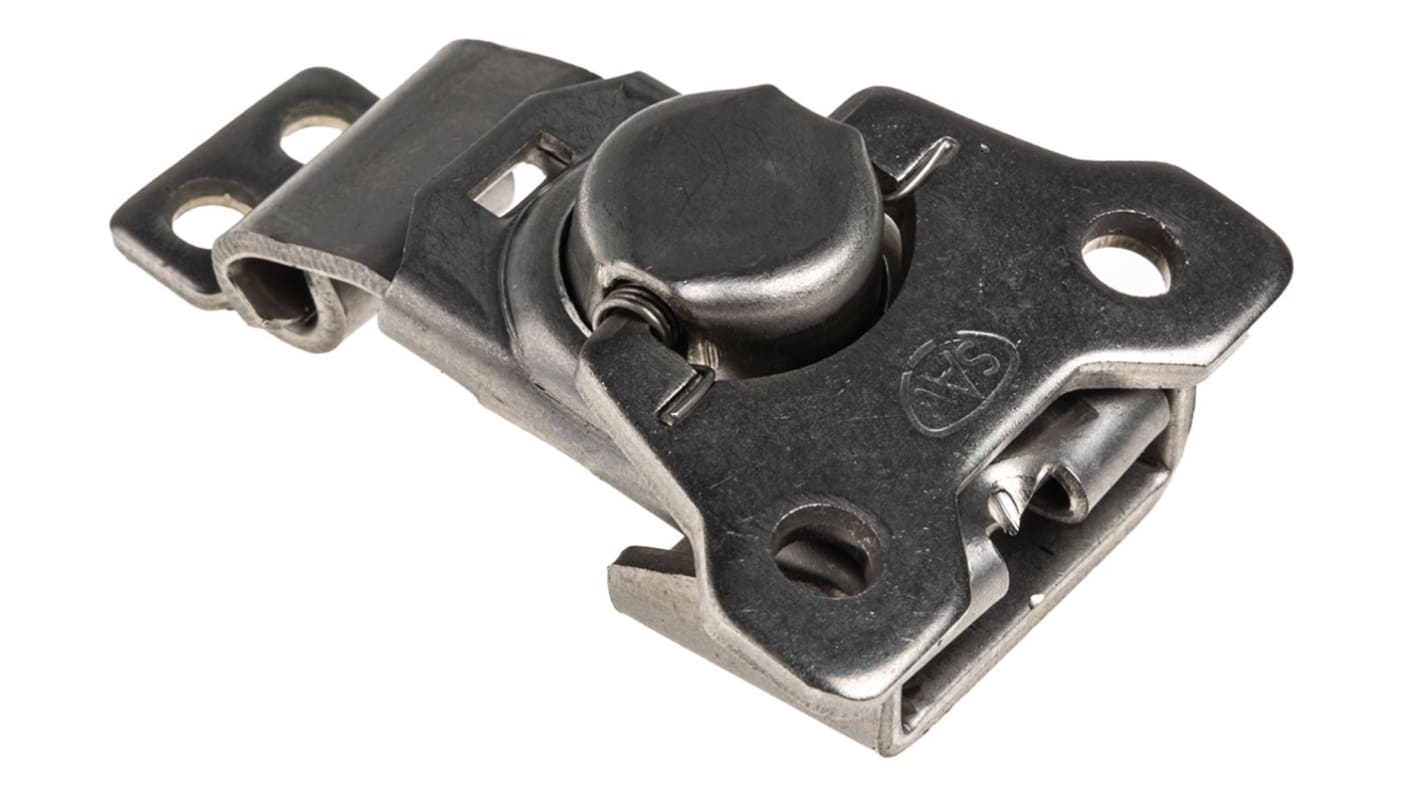

Turn Latch
This low profile latch is operated by lifting and turning the ’butterfly’ thumbscrew, which operates a cam, pulling down the link
The latch can be used with the catch plate supplied, or can grip directly into a groove
The thumbscrew is spring loaded to ensure that it always lies flat
M4 Fixing
80kgf operating tension
Latch to catch distance 32.7mm
The latch can be used with the catch plate supplied, or can grip directly into a groove
The thumbscrew is spring loaded to ensure that it always lies flat
M4 Fixing
80kgf operating tension
Latch to catch distance 32.7mm
사양
속성 | 값 |
|---|---|
| Material | Stainless Steel |
| Spring Loaded | Yes |
| Operating Tension | 785N |
| Latch Type | Toggle Latch |
| Dimensions | 43 x 38 x 15mm |
| Depth | 15 mm |
| Length | 43mm |
| Width | 38mm |
