Bridgetek, 5in Arduino Compatible Display with Resistive Touch Screen

모든 Displays For Arduino 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩249,673.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 08일 부터 24 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩249,673.40
5 +₩244,680.12

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
126-1742
제조사 부품 번호:
CleO50A
제조업체:
Bridgetek
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Bridgetek

Diagonal Display Size

5in

Display Technology

Resistive Touch Screen

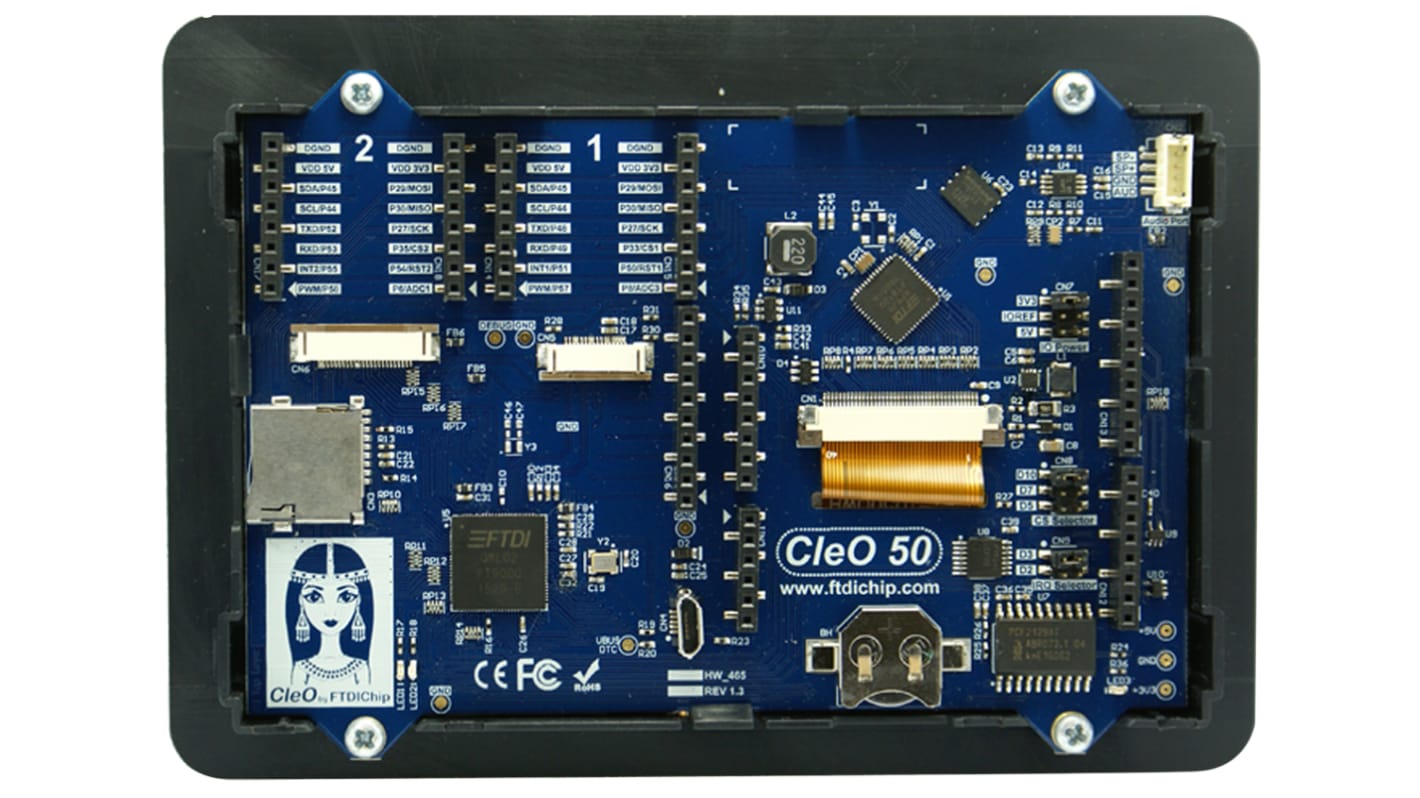

CleO 5.0in Touchscreen LCD for Arduino


The CleO50 graphics display panel allows easy development of Human-Machine Interfaces (HMI) based on an Arduino-format platform. Designed to work with an Arduino UNO R3 or compatible host processor board such as the NerO available from FTDI Chip.

5.0in 800 x 480pixel TFT LCD panel with resistive touchscreen
Landscape and portrait modes supported
Anti-Aliased graphics throughout for much finer image quality
Smooth animations at up to 60fps
Direct file transfers between microSD/eFlash and Graphics subsystem without using Host processor resources
FT812 Embedded Video Engine (EVE) graphic controller
FT900 32-bit microcontroller
MicroSD card socket
8MB eFlash memory
Real-Time Clock with battery back-up
USB DFU port for firmware updates
Camera interface via 24-pin 0.5mm pitch FFC/FPC, bottom-contact connector
Support for OmniVision OV2640 camera module or CleO-CAM1A camera
PWM audio supported with speaker amplifier
I²S and CAN bus interfaces
Headers for 2 x MikroBUS modules
CR1220 coin cell holder for battery back-up
Ready to use in a panel mountable bezel
Operating temperature range: -20 to +70°C

Compatible Accessories
110-9118 NerO-LP1 Energy-efficient Arduino-format processor board
124-1039 CleO-CAM1 5Mpixel camera
124-1042 MS-C6-8G MicroSD Flash card, 8GB, Class 6

Approvals

CE FCC
