Bridgetek, 3.5in Arduino Compatible Display with Resistive Touch Screen
- RS 제품 번호:
- 124-1038
- 제조사 부품 번호:
- CleO35A
- 제조업체:
- Bridgetek
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩140,191.60
재고있음
- 25 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩140,191.60 |
| 5 + | ₩135,980.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-1038
- 제조사 부품 번호:
- CleO35A
- 제조업체:
- Bridgetek
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bridgetek | |
| Diagonal Display Size | 3.5in | |
| Display Technology | Resistive Touch Screen | |
| For Use With | Arduino | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bridgetek | ||
Diagonal Display Size 3.5in | ||
Display Technology Resistive Touch Screen | ||
For Use With Arduino | ||

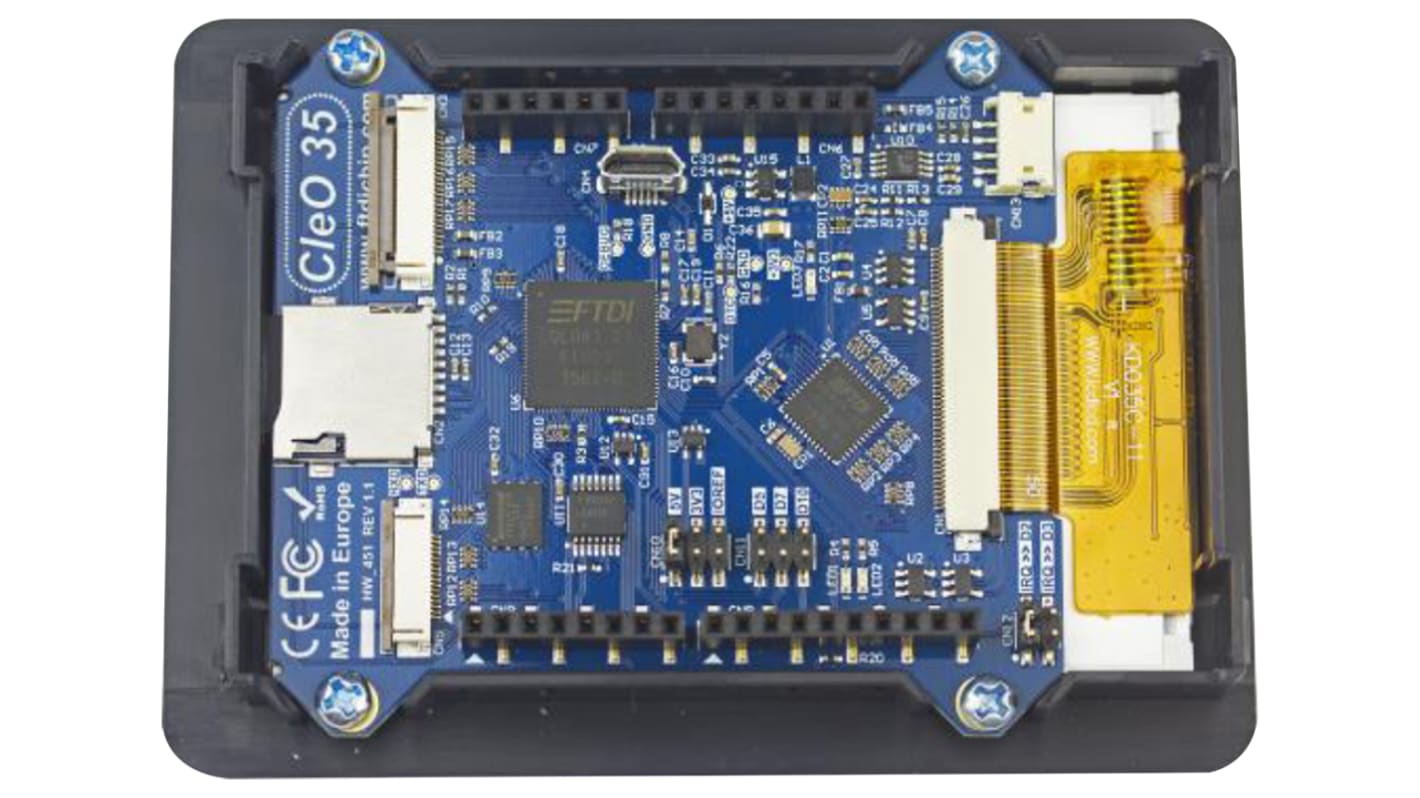

CleO 3.5in Touchscreen LCD for Arduino
The CleO graphics display panel allows easy development of Human-Machine Interfaces (HMI) based on an Arduino-format platform. Designed to work with an Arduino UNO R3 or compatible host processor board such as the NerO available from FTDI Chip.
3.5in 320 x 480pixel TFT LCD panel with resistive touchscreen
Landscape and portrait modes supported
Anti-Aliased graphics throughout for much finer image quality
Smooth animations at up to 60fps
Direct file transfers between microSD/eFlash and Graphics subsystem without using Host processor resources
FT810 Embedded Video Engine (EVE) graphic controller
FT903 32-bit microcontroller
MicroSD card socket
8MB eFlash memory
USB DFU port for firmware updates
Camera interface via 24-pin 0.5mm pitch FFC/FPC, bottom-contact connector
Support for OmniVision OV2640 camera module or CleO-CAM1A camera
PWM audio supported with speaker amplifier
Ready to use in a panel mountable bezel
Operating temperature range: -20 to +70°C
Compatible Accessories
110-9118 NerO-LP1 Energy-efficient Arduino-format processor board
124-1042 MS-C6-8G MicroSD Flash card, 8GB, Class 6
Landscape and portrait modes supported
Anti-Aliased graphics throughout for much finer image quality
Smooth animations at up to 60fps
Direct file transfers between microSD/eFlash and Graphics subsystem without using Host processor resources
FT810 Embedded Video Engine (EVE) graphic controller
FT903 32-bit microcontroller
MicroSD card socket
8MB eFlash memory
USB DFU port for firmware updates
Camera interface via 24-pin 0.5mm pitch FFC/FPC, bottom-contact connector
Support for OmniVision OV2640 camera module or CleO-CAM1A camera
PWM audio supported with speaker amplifier
Ready to use in a panel mountable bezel
Operating temperature range: -20 to +70°C
Compatible Accessories
110-9118 NerO-LP1 Energy-efficient Arduino-format processor board
124-1042 MS-C6-8G MicroSD Flash card, 8GB, Class 6
Approvals
CE FCC
