제조사부품번호

STMicroelectronics LED Driver, 20 V Output, 3 to 40 mA 12/16-bit PWM

RS 제품 번호:: 188-9302
제조사 부품 번호:: ALED1642GWXTTR
제조업체:: STMicroelectronics

STMicroelectronics LED Driver, 20 V Output, 3 to 40 mA 12/16-bit PWM

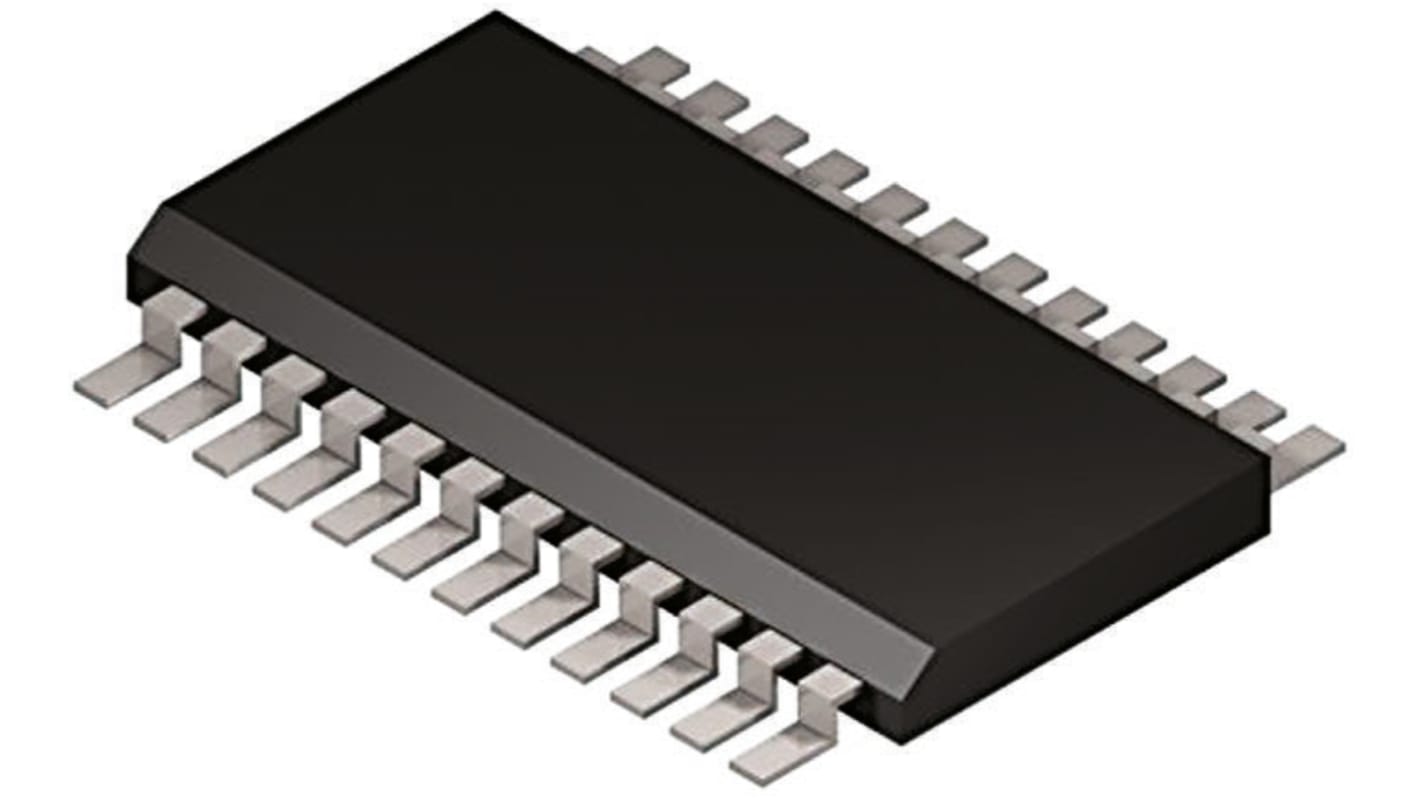

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩3,459.20

재고있음

9,435 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 624	₩3,459.20
625 - 1249	₩3,384.00
1250 +	₩3,290.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 188-9302
제조사 부품 번호:: ALED1642GWXTTR
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Display Driver
	Output Voltage	20 V
	Input Voltage	3 to 5.5 V
	Mount Type	Surface Mount
	Sub Type	LED Driver
	Dimming Operation	12/16-bit PWM
	Driver Current	3 to 40 mA
	LED Voltage	20 V
	Operating Modes	Power, Error detection mode
	Number of Outputs	16
	Series	ALED1642GW
	Standards/Approvals	AEC-Q100
	Primary Type	16 Channel LED driver

	모두 선택
	브랜드 STMicroelectronics
	Product Type Display Driver
	Output Voltage 20 V
	Input Voltage 3 to 5.5 V
	Mount Type Surface Mount
	Sub Type LED Driver
	Dimming Operation 12/16-bit PWM
	Driver Current 3 to 40 mA
	LED Voltage 20 V
	Operating Modes Power, Error detection mode
	Number of Outputs 16
	Series ALED1642GW
	Standards/Approvals AEC-Q100
	Primary Type 16 Channel LED driver

Datasheet ALED1642GWXTTR

16 constant current output channels

Output current: from 3 mA to 40 mA

Current programmable through external resistor

7-bit global current gain adjustment in two ranges

12/16-bit PWM grayscale brightness control

Programmable output turn-on/off time

Error detection mode (both open and shorted-LED)

Programmable shorted-LED detection thresholds

Auto power saving/auto-wakeup

Selectable SDO synchronization on the CLK falling edge

Gradual output delay (selectable)

Supply voltage: 3 V to 5.5 V

Thermal shutdown and overtemperature alert

Up to 30 MHz 4-wires Interface

20 V current generator rated voltage

Applications

Full color/monochrome displays

Dashboard (backlighting led indicators)

Automotive Interior lighting

STMicroelectronics LED Driver, 20 V Output, 3 to 40 mA 12/16-bit PWM
