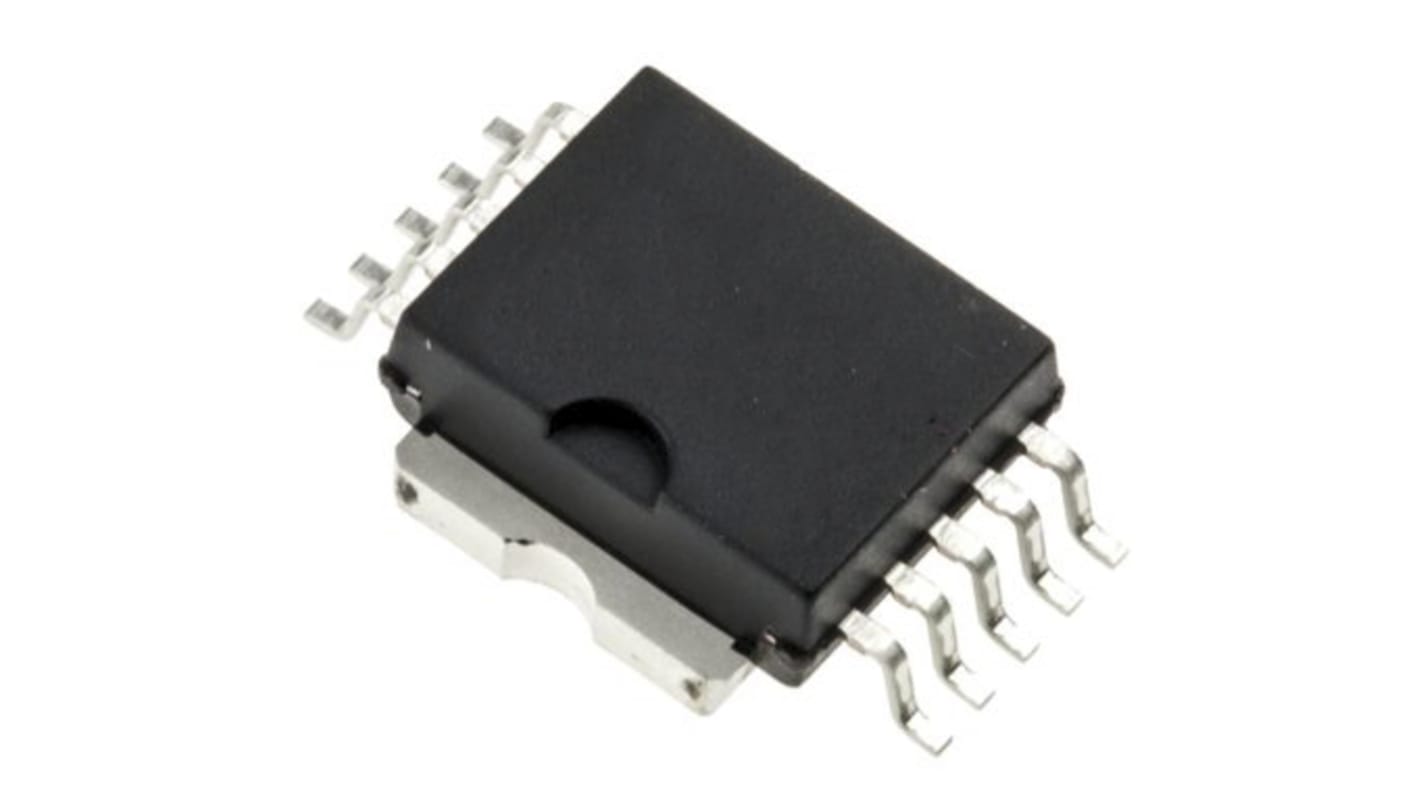

onsemi NCL30170ADR2G SOIC Display Driver, 1 Segment, 10 Pin, 4.5 → 40 V
- RS 제품 번호:
- 185-8035
- 제조사 부품 번호:
- NCL30170ADR2G
- 제조업체:
- onsemi
대량 구매 할인 기용 가능
Subtotal (1 reel of 2500 units)*
₩2,528,600.00
마지막 RS 재고
- 최종적인 2,500 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2500 - 2500 | ₩1,011.44 | ₩2,530,010.00 |
| 5000 - 7500 | ₩992.64 | ₩2,479,250.00 |
| 10000 + | ₩971.96 | ₩2,429,900.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 185-8035
- 제조사 부품 번호:
- NCL30170ADR2G
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Package Type | SOIC | |
| Display Type | LED | |
| Number of Pins | 10 | |
| Supply Voltage | 4.5 → 40 V | |
| Number of Segments | 1 | |
| Maximum Supply Current | 1.2mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Mounting Type | Surface Mount | |
| Width | 3.9mm | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Package Type SOIC | ||
Display Type LED | ||
Number of Pins 10 | ||
Supply Voltage 4.5 → 40 V | ||
Number of Segments 1 | ||
Maximum Supply Current 1.2mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Mounting Type Surface Mount | ||
Width 3.9mm | ||
Height 1.25mm | ||
Length 4.9mm | ||
- COO (Country of Origin):
- TW
Accurate LED CC regulation: <±1%
Workable for Constant Power regulation
Selectable LED Channel counts
High PF & Low THD : >0.99 / <10%
Proprietary Active Phase-Cut Dimmer Control Technique
Wide Analog Dimming range: 5∼100%
HV Startup Current Source
Protections - Input Over Voltage Protection - RCS Short Protection - Thermal Shutdown
Excellent Light Uniformity
Flexible Design
Easy Power Scalability 5∼300 W
Overpass global standard
Excellent Phase-cut dimmer Compatibility
Flexible Smart Lighting Design
Fast start up & Low eBOM
High System Reliability
Applications
LED Light - Non-Dimming, Phase-Cut Dimming, Analog Dimming (0-10)
End Products
LED Light - PAR, Down, Tube, Flat, Ceiling, Flood, High Bay, Street Light
Workable for Constant Power regulation
Selectable LED Channel counts
High PF & Low THD : >0.99 / <10%
Proprietary Active Phase-Cut Dimmer Control Technique
Wide Analog Dimming range: 5∼100%
HV Startup Current Source
Protections - Input Over Voltage Protection - RCS Short Protection - Thermal Shutdown
Excellent Light Uniformity
Flexible Design
Easy Power Scalability 5∼300 W
Overpass global standard
Excellent Phase-cut dimmer Compatibility
Flexible Smart Lighting Design
Fast start up & Low eBOM
High System Reliability
Applications
LED Light - Non-Dimming, Phase-Cut Dimming, Analog Dimming (0-10)
End Products
LED Light - PAR, Down, Tube, Flat, Ceiling, Flood, High Bay, Street Light
