- RS 제품 번호:
- 191-7875
- 제조사 부품 번호:
- 50462-6
- 제조업체:
- TE Connectivity
일시 품절-다음 입고 날짜는 12/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(2000개가 1봉지안에)
₩793.454
수량 | 한팩당 | Per Bag* |
2000 - 2000 | ₩793.454 | ₩1,586,908.00 |
4000 - 6000 | ₩777.93 | ₩1,555,169.84 |
8000 + | ₩762.406 | ₩1,524,121.64 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 191-7875
- 제조사 부품 번호:
- 50462-6
- 제조업체:
- TE Connectivity
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- US
제품 세부 사항

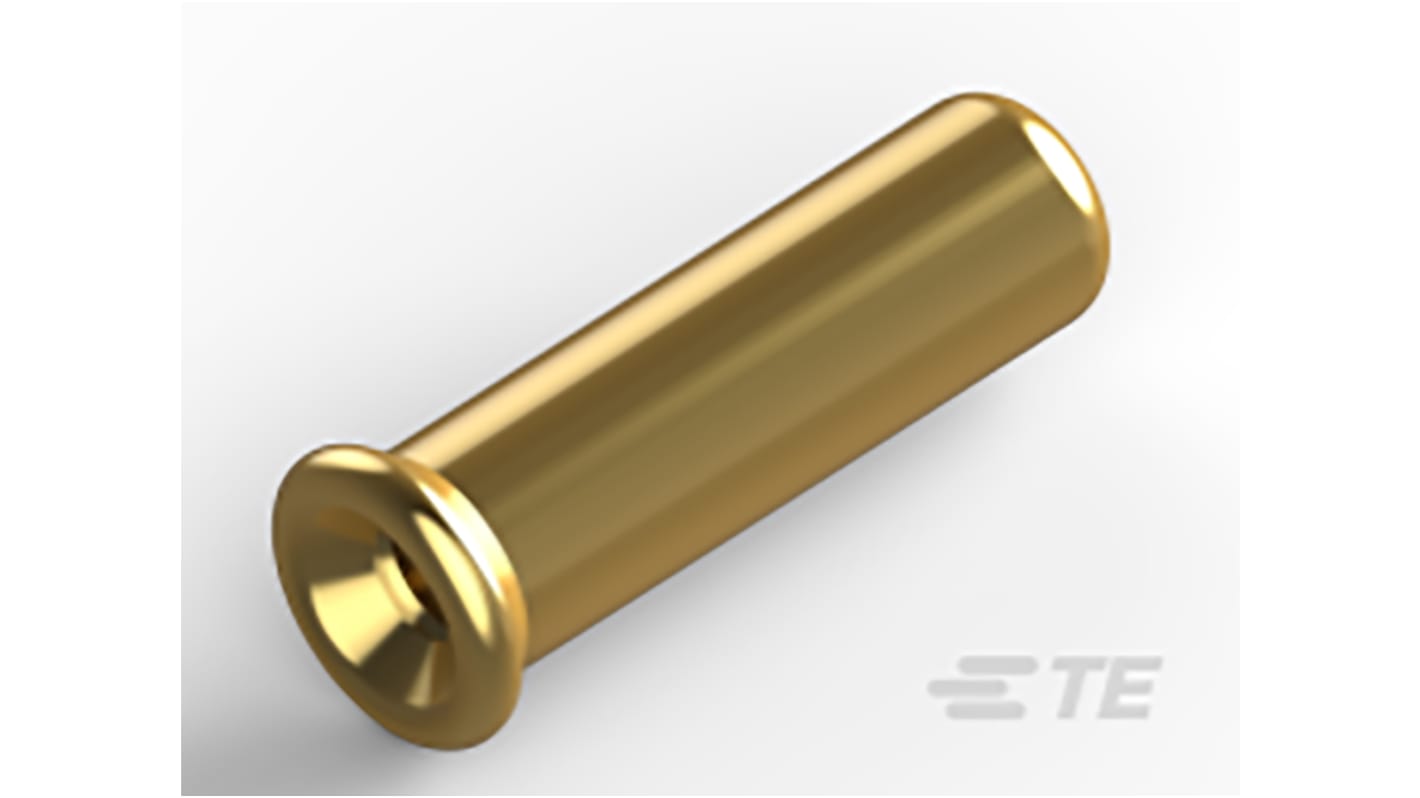

The Miniature Spring Socket Contacts can be soldered with wave, vapor phase, or infrared reflow processes, provided the temperatures and exposure time are within the ranges
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Gender | Female |
Minimum Wire Size mm² | 0.081mm² |
Maximum Wire Size mm² | 0.326mm² |
Series | 50462 |
Wire Size | 28 → 22 AWG |
Minimum Wire Size AWG | 22AWG |
Length | 4.52mm |
Maximum Wire Size AWG | 28AWG |
Number of Rows | 1 |
Body Orientation | Straight |
Contact Material | Beryllium Copper |
Contact Plating | Gold |
Current Rating | 5A |
Termination Method | Solder |
Number of Contacts | 1 |
