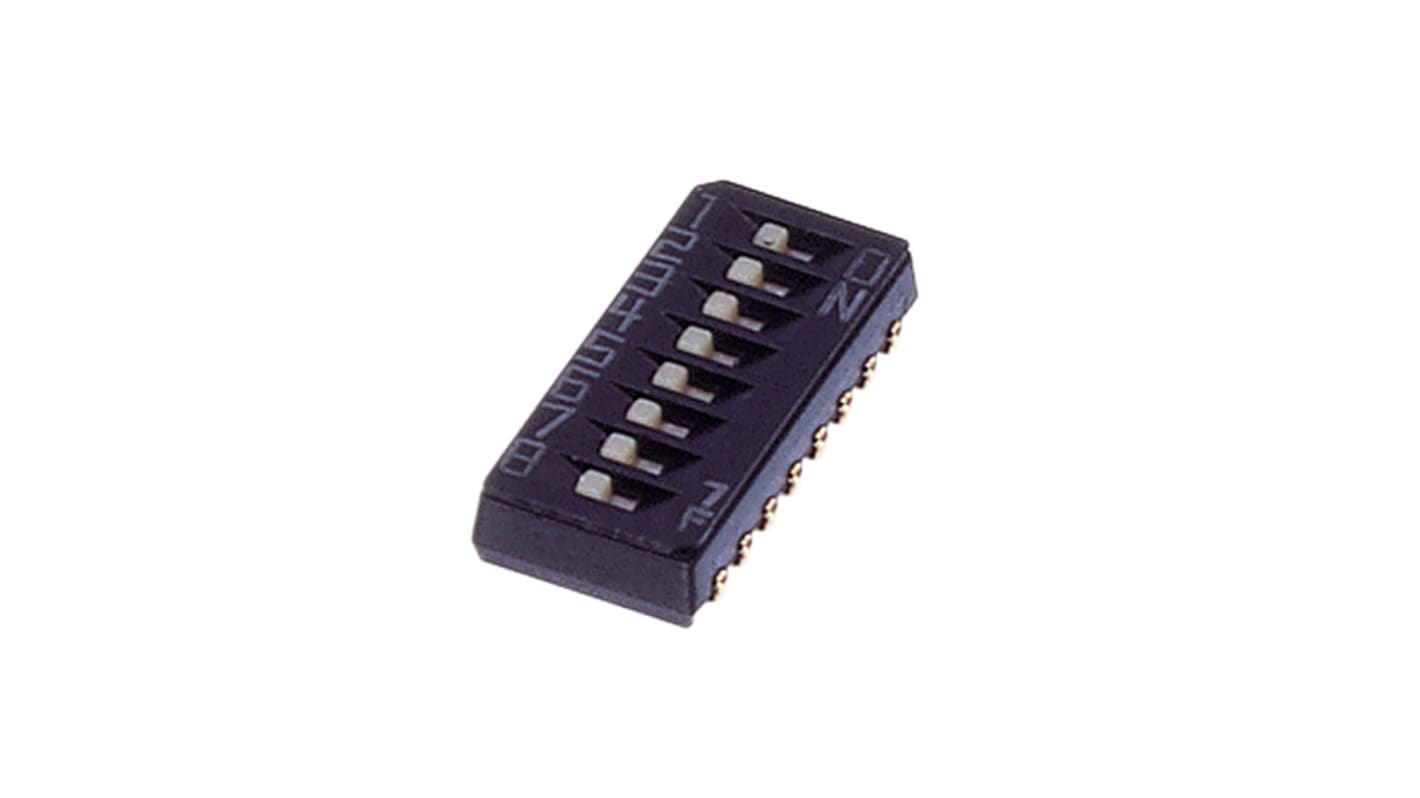

Nidec Components 8 Way Surface Mount DIP Switch SPST
- RS 제품 번호:
- 903-9811
- 제조사 부품 번호:
- CHS-08A
- 제조업체:
- Nidec Components
190 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(10개가 1봉지안에)
₩4,546.836
| 수량 | 한팩당 | Per Bag* |
| 10 - 40 | ₩4,546.836 | ₩45,470.089 |
| 50 - 190 | ₩4,410.569 | ₩44,103.968 |
| 200 - 490 | ₩4,274.302 | ₩42,739.572 |
| 500 - 1990 | ₩4,182.883 | ₩41,832.275 |
| 2000 + | ₩4,091.463 | ₩40,921.528 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 903-9811
- 제조사 부품 번호:
- CHS-08A
- 제조업체:
- Nidec Components
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
CHS Series
SMD mounting height 2.5mm low profile design
Complies with EIAJ SOP standard outline dimensions
Seal tape type
Excellent contact stability with twin Au plated contacts
Complies with EIAJ SOP standard outline dimensions
Seal tape type
Excellent contact stability with twin Au plated contacts
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
사양
속성 | 값 |
|---|---|
| Number of Positions | 8 |
| Mounting Type | Surface Mount |
| Contact Configuration | SPST |
| Contact Material | Copper Alloy |
| Package Style | DIP |
| Actuator Type | Slide |
| Contact Current Rating | 100 mA@ 6 V dc, 25 mA@ 24 V dc |
| Mechanical Life | 2000Cycles |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 6 V dc, 24V dc |
| Dielectric Strength | 500V ac |
