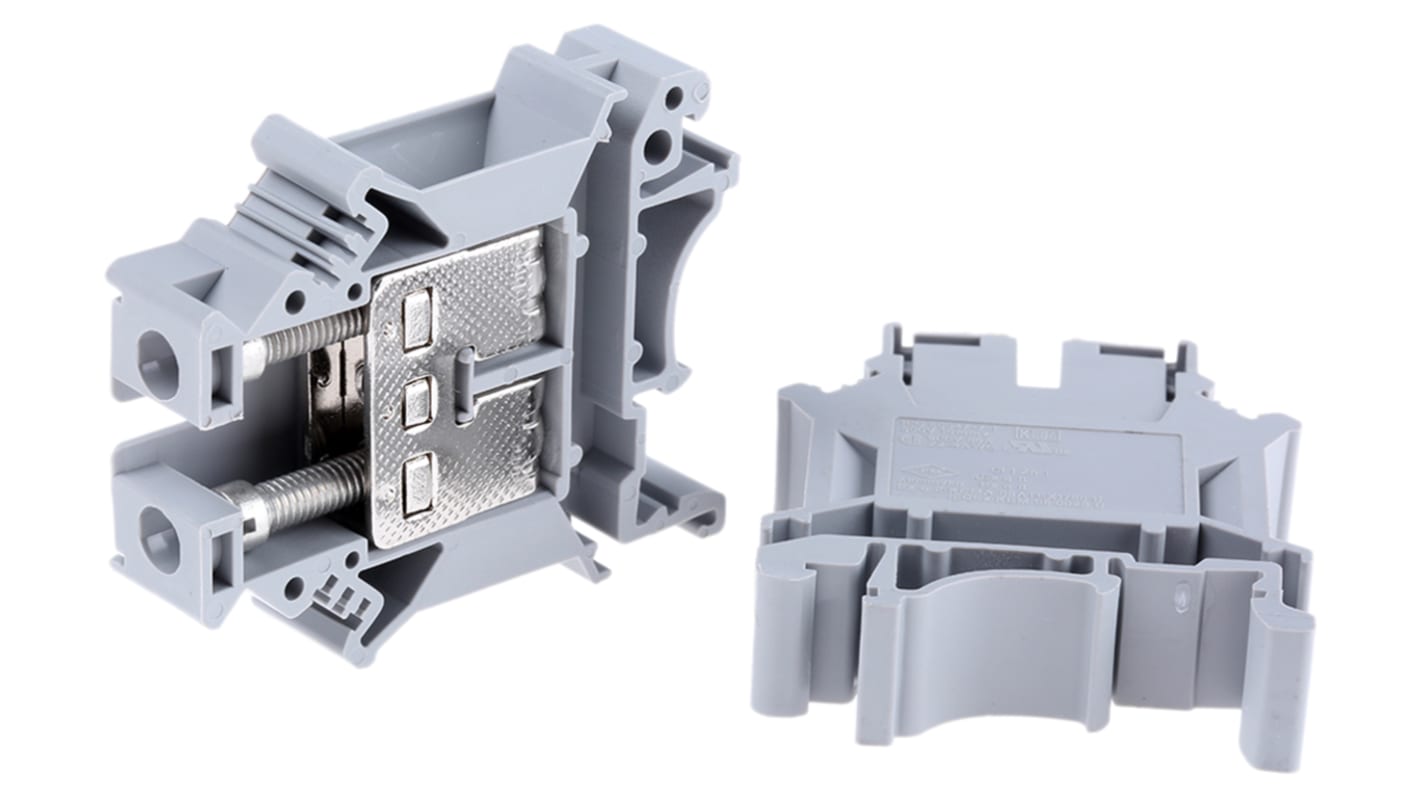

Phoenix Contact 3006043 UK 16 N Series Grey, 4 → 16mm², Single-Level, Screw Termination, ATEX

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

This terminal block from Phoenix Contact safely connects wires of different sizes along your DIN rail. Its built-in screws ensure a secure connection for a reliable power supply to your equipment. The versatile component joins cables with cross-sections between 4 and 16mm², meaning there's no need to replace wires or devices when you want to connect different appliances. Its screw-in termination method means the block's connections aren't fixed, making it simple to adjust your wiring when required.
As it supports currents up to 101A, this unit is ideal for managing large electrical loads. Due to its robust polyamide design, the risk of short-circuiting is minimised. By joining one pair of wires together per block, this block keeps your wiring organised for easy inspections. A compact width of just 12.2mm means it fits easily into busy setups to optimise the packing density of your DIN rail.

• UL94-V0 flammability class, indicating burning stops within 10 seconds to enhance fire safety
• ATEX certified for safe use in hazardous areas
• 8kV surge voltage rating means the block maintains your connection in the event of a spike in power

E Exei/II; KEMA
