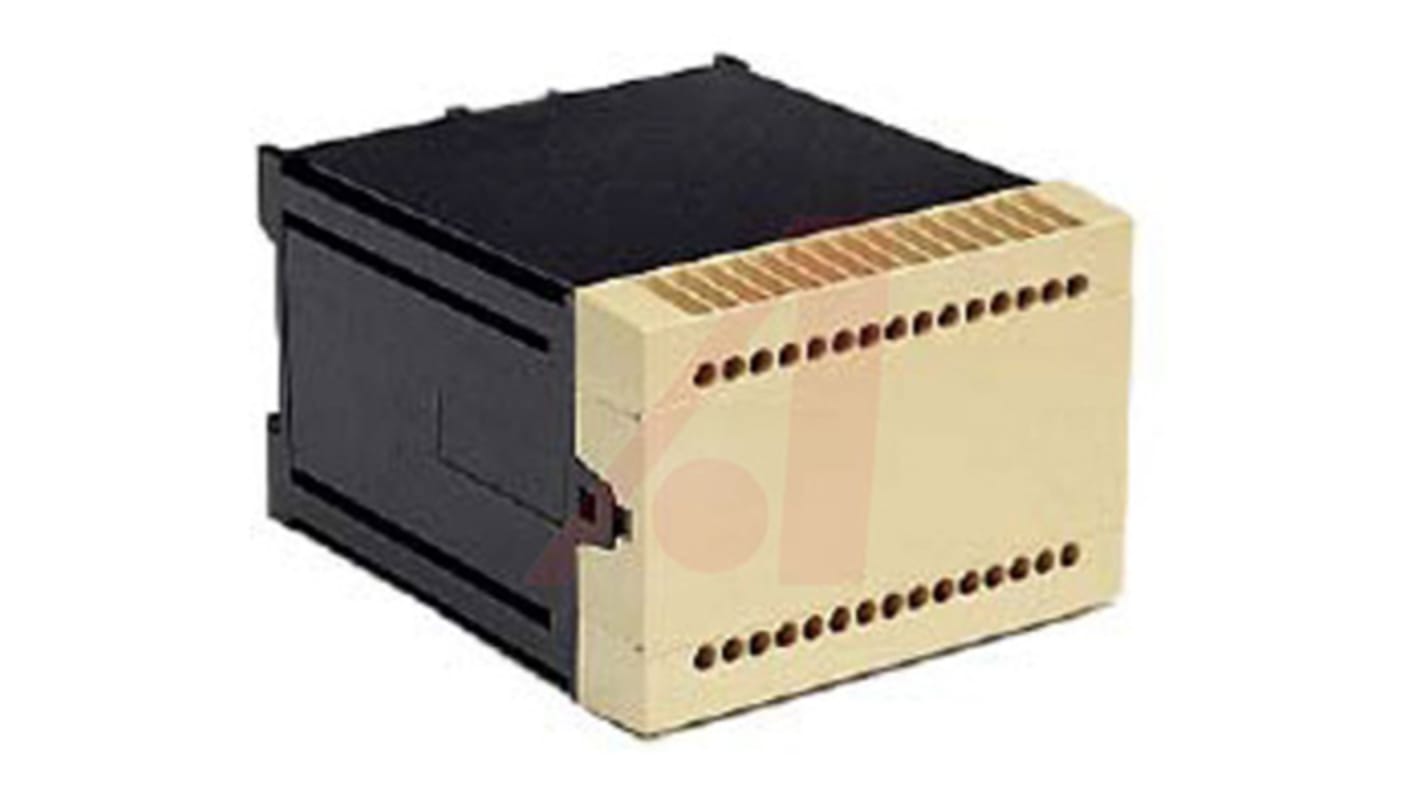

Altech Solid Enclosure Type KO4700 Series , 100 x 121 x 90mm, Glass Filled Polycarbonate DIN Rail Enclosure
- RS 제품 번호:
- 900-3516
- 제조사 부품 번호:
- 90.440
- 제조업체:
- Altech
단종
- RS 제품 번호:
- 900-3516
- 제조사 부품 번호:
- 90.440
- 제조업체:
- Altech
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Altech | |
| Enclosure Type | Solid | |
| Body Material | Glass Filled Polycarbonate | |
| Length | 100mm | |
| Dimensions | 100 x 121 x 90mm | |
| Width | 121mm | |
| Height | 90mm | |
| Maximum Terminals | 30 | |
| Colour | Black | |
| Series | KO4700 | |
| Maximum Operating Temperature | +125°C | |
| Enclosure Rating | IP20 | |
| Standards Met | UL 94V-0 | |
| Terminal Type | Box Clamp | |
| Special Features | Industrial Application, Standard Enclosures are Equipped with the Maximum Number of Terminal Strips | |
| Internal Mounting Type | DIN Rail | |
모두 선택 | ||
|---|---|---|
브랜드 Altech | ||
Enclosure Type Solid | ||
Body Material Glass Filled Polycarbonate | ||
Length 100mm | ||
Dimensions 100 x 121 x 90mm | ||
Width 121mm | ||
Height 90mm | ||
Maximum Terminals 30 | ||
Colour Black | ||
Series KO4700 | ||
Maximum Operating Temperature +125°C | ||
Enclosure Rating IP20 | ||
Standards Met UL 94V-0 | ||
Terminal Type Box Clamp | ||
Special Features Industrial Application, Standard Enclosures are Equipped with the Maximum Number of Terminal Strips | ||
Internal Mounting Type DIN Rail | ||
