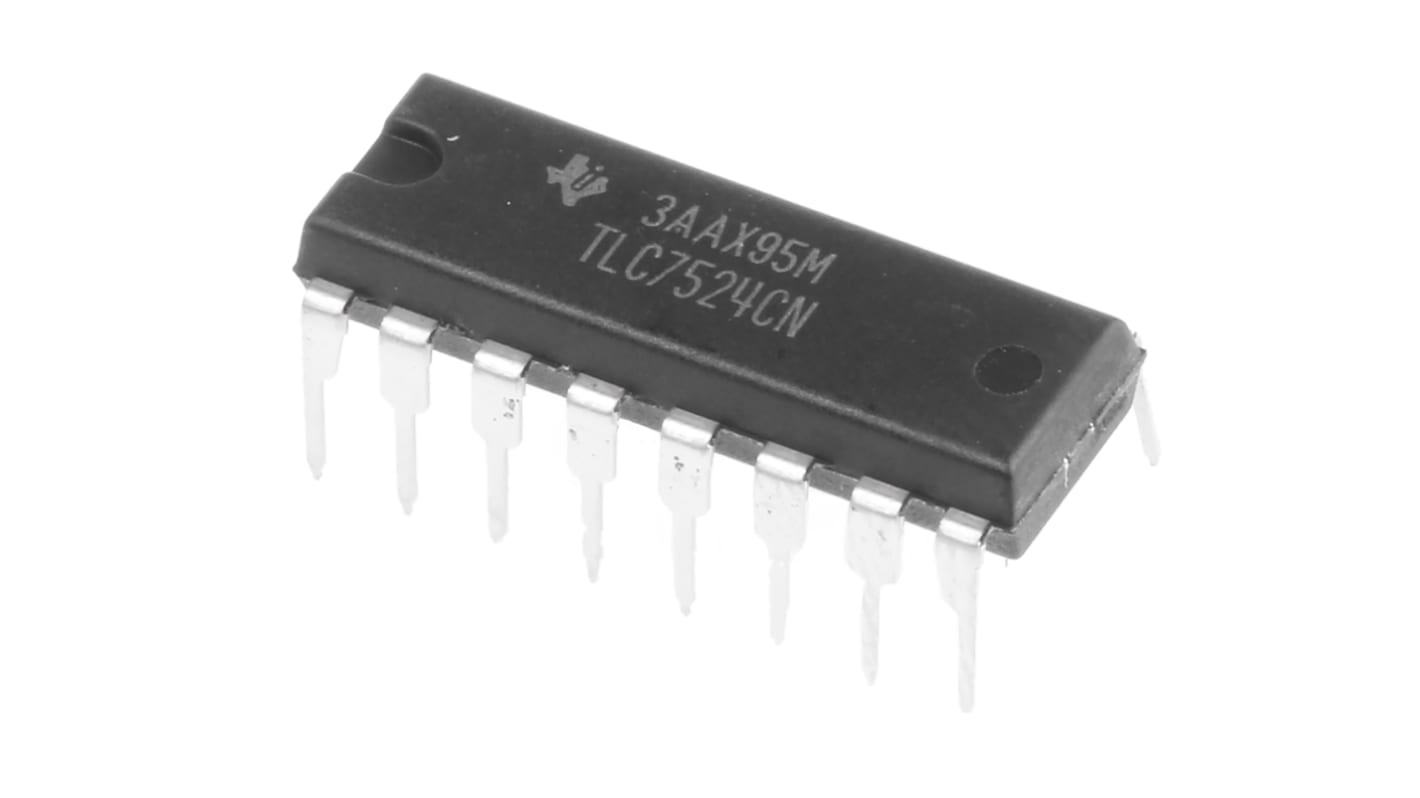

Texas Instruments, DAC 8 bit-, 10Msps, ±2.5LSB Parallel, 16-Pin PDIP
- RS 제품 번호:
- 650-087P
- 제조사 부품 번호:
- TLC7524CN
- 제조업체:
- Texas Instruments
대량 구매 할인 기용 가능
가격 개당(튜브에 담겨 공급됨)**
₩5,470.80
250 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
---|---|
5 + | ₩5,470.80 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 650-087P
- 제조사 부품 번호:
- TLC7524CN
- 제조업체:
- Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
---|---|---|
브랜드 | Texas Instruments | |
Architecture | R-2R, Resistor String | |
Resolution | 8 bit | |
Conversion Rate | 10Msps | |
Full Scale Error | ±2.5LSB | |
Integral Nonlinearity Error | ±0.5LSB | |
Number of DAC Channels | 1 | |
Mounting Type | Through Hole | |
Package Type | PDIP | |
Pin Count | 16 | |
Maximum Settling Time | 0.1µs | |
Digital Interface Type | Parallel | |
Voltage Reference | External | |
Power Supply Type | Single | |
Typical Single Supply Voltage | 15 V, 5 V | |
Minimum Operating Temperature | 0 °C | |
Maximum Operating Temperature | +70 °C | |
Dimensions | 19.3 x 6.35 x 4.57mm | |
