Lascar EL-USB-RT Temperature & Humidity Data Logger, USB, 1 Input Channel(s)
- RS 재고 번호:
- 126-723
- 제조 부품 번호:
- EL-USB-RT
- 제조업체:
- Lascar
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 재고 번호:
- 126-723
- 제조 부품 번호:
- EL-USB-RT
- 제조업체:
- Lascar
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lascar | |
| Model Number | EL-USB-RT | |
| Number of Input Channels | 1 | |
| Measurement Parameters | Humidity, Temperature, Dew Point | |
| Sensor Type | Humidity, Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature & Humidity | |
| Maximum Temperature Measurement | +60 °C | |
| Power Source | USB | |
| Best Temperature Measurement Accuracy | ±1.5 °C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Number of Readings Per Channel | Unlimited | |
| Alarm | Yes | |
| Battery Life | N/A | |
| Best Humidity Measurement Accuracy | ±4.5 %RH | |
| Model Number p | EL-USB-RT | |
| Dimensions | 77 x 18.6 x 10.6mm | |
| Battery Type | N/A | |
| Humidity Measurement Resolution | 0.5%RH | |
| Temperature Measurement Resolution | 0.5°C | |
| Maximum Humidity Measurement | 100%RH | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lascar | ||
Model Number EL-USB-RT | ||
Number of Input Channels 1 | ||
Measurement Parameters Humidity, Temperature, Dew Point | ||
Sensor Type Humidity, Temperature | ||
Interface Type USB | ||
Data Logger Type Temperature & Humidity | ||
Maximum Temperature Measurement +60 °C | ||
Power Source USB | ||
Best Temperature Measurement Accuracy ±1.5 °C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Number of Readings Per Channel Unlimited | ||
Alarm Yes | ||
Battery Life N/A | ||
Best Humidity Measurement Accuracy ±4.5 %RH | ||
Model Number p EL-USB-RT | ||
Dimensions 77 x 18.6 x 10.6mm | ||
Battery Type N/A | ||
Humidity Measurement Resolution 0.5%RH | ||
Temperature Measurement Resolution 0.5°C | ||
Maximum Humidity Measurement 100%RH | ||
- COO (Country of Origin):
- CN
Lascar Data Loggers

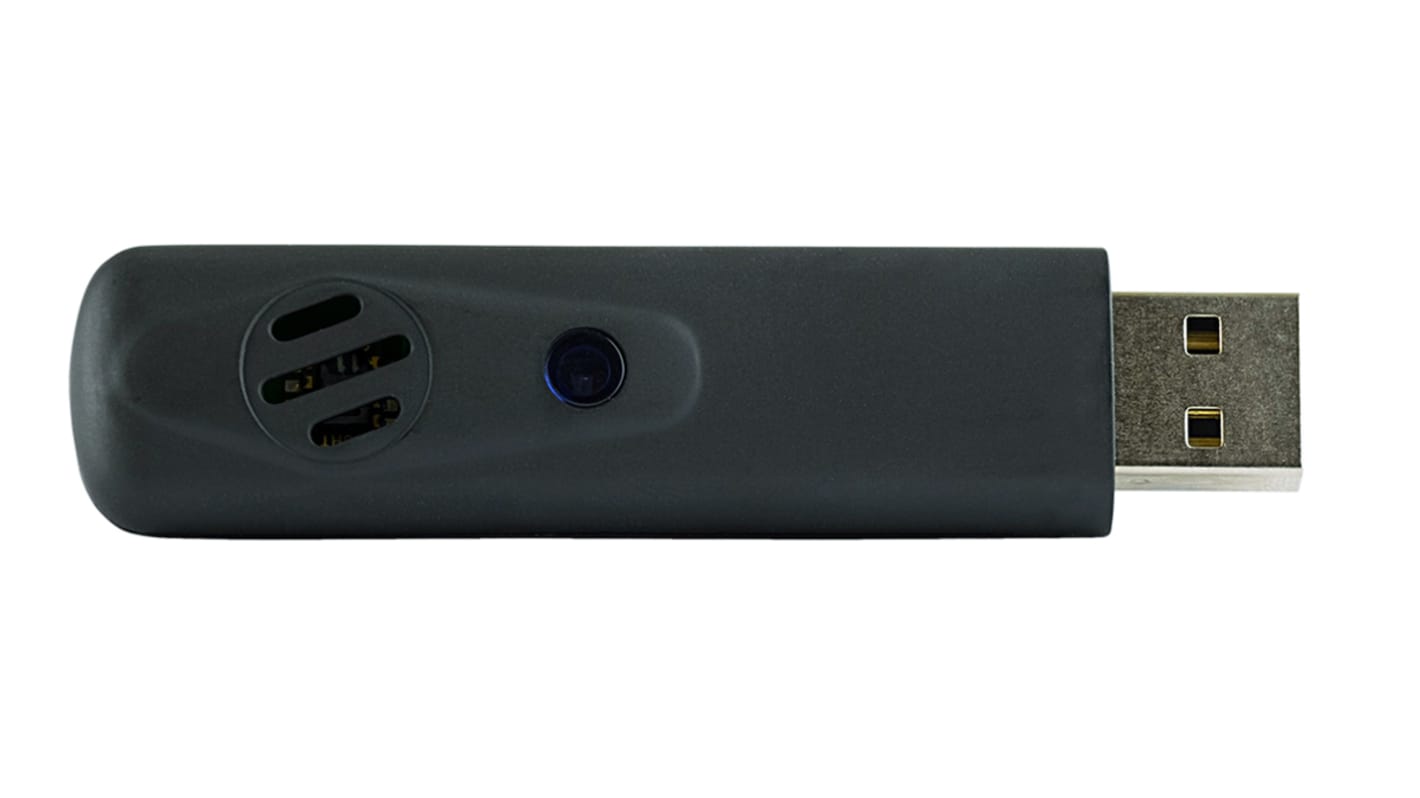

The Lascar EL-USB-RT data logger measures real-time temperature readings over a -10°C to 60°C (14°F to 140°F) range and relative humidity over a 0 to 100%RH range when plugged into the USB port of a PC which has EasyLog RT software installed. The PC displays the temperature, humidity and dew point in real-time and saves it to a file which can store up to 7 days worth of data. This data file is overwritten at the beginning of each new logging session. The software provides the option for the user to save the data file permanently to the hard-drive. All data can be graphed, printed and exported to other applications.
Note:
NOT compatible with 64-bit Windows operating systems
Supplied with
Instructions.
Note:
NOT compatible with 64-bit Windows operating systems
Supplied with
Instructions.
Features and Benefits
The temperature measurement ranges between -35°C and 80°C (-31°F and 176°F) and humidity measurement is 0 to 100% RH
Temperature measurement accuracy is ±.1.5°C
Humidity measurement accuracy is ±4.5%RH
Real time logging with logging rate of 1 second
User-programmable alarm thresholds for both, temperature and humidity
User programmable high/low alarm rates with e-mail notification function of any event
Saves data to the PC in a suitable format for import into popular spreadsheet applications
Powered by USB, batteries not required
Export to Excel functionality
Temperature measurement accuracy is ±.1.5°C
Humidity measurement accuracy is ±4.5%RH
Real time logging with logging rate of 1 second
User-programmable alarm thresholds for both, temperature and humidity
User programmable high/low alarm rates with e-mail notification function of any event
Saves data to the PC in a suitable format for import into popular spreadsheet applications
Powered by USB, batteries not required
Export to Excel functionality
Applications
Immediate temperature and humidity measurements
Housing and business premises
Housing and business premises
