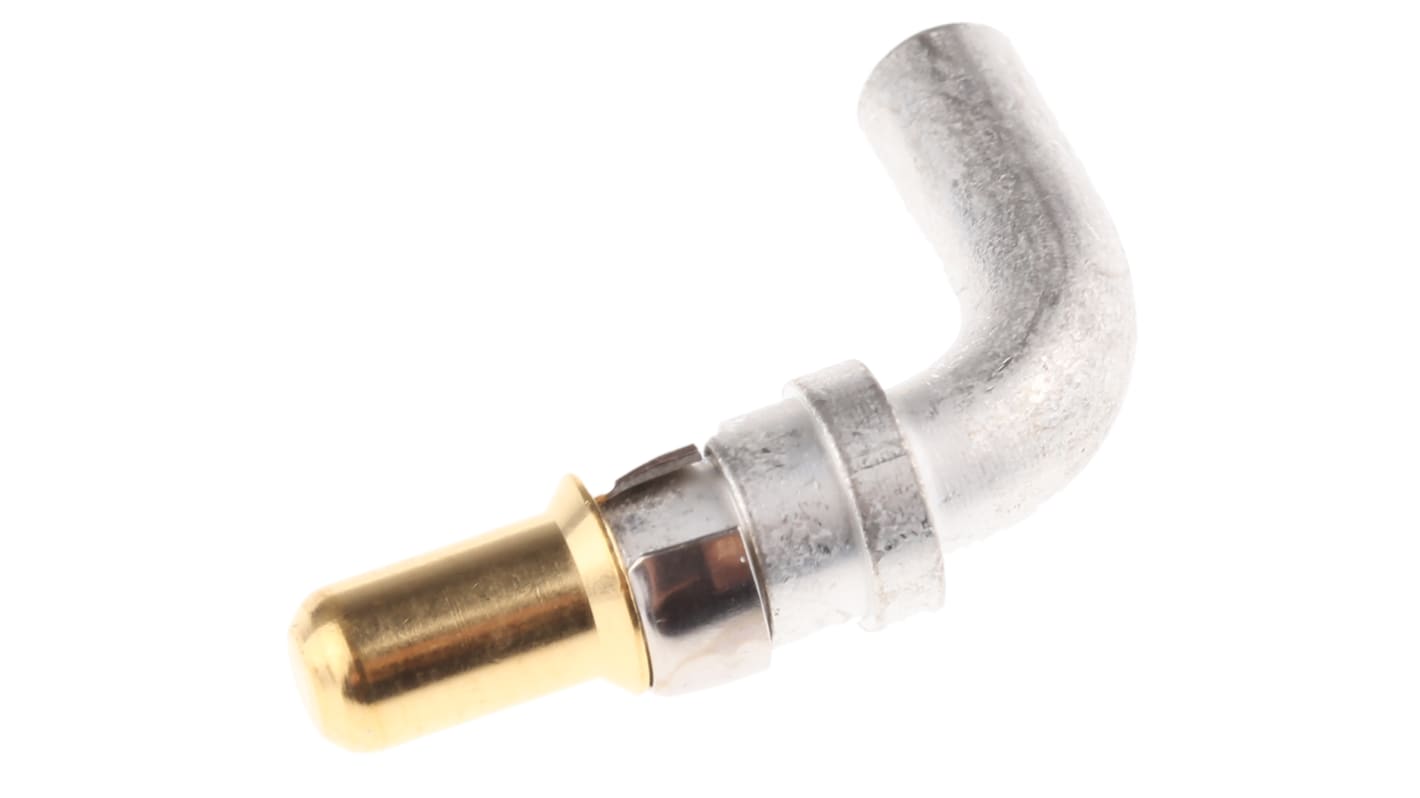

FCT from Molex, 173112 Series, Male PCB D-Sub Connector Power Contact, Gold over Nickel 16 AWG
- RS 제품 번호:
- 270-6687
- Distrelec 제품 번호:
- 303-99-400
- 제조사 부품 번호:
- FMP009P104 / 1731120081
- 제조업체:
- FCT from Molex
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩5,460.00
재고있음
- 4,293 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩5,460.00 |
| 25 - 74 | ₩5,323.50 |
| 75 - 199 | ₩5,089.50 |
| 200 - 999 | ₩4,953.00 |
| 1000 + | ₩4,114.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 270-6687
- Distrelec 제품 번호:
- 303-99-400
- 제조사 부품 번호:
- FMP009P104 / 1731120081
- 제조업체:
- FCT from Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | FCT from Molex | |
| Product Type | D-Sub Connector Power Contact | |
| Gender | Male | |
| Contact Material | Copper Alloy | |
| Current | 20A | |
| Contact Plating | Gold over Nickel | |
| Maximum Contact Resistance | 2.7mΩ | |
| Series | 173112 | |
| Termination Type | PCB | |
| Length | 17.7mm | |
| Standards/Approvals | UL Recognised File No. 168813, UL94V-0 | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 16AWG | |
| 모두 선택 | ||
|---|---|---|
브랜드 FCT from Molex | ||
Product Type D-Sub Connector Power Contact | ||
Gender Male | ||
Contact Material Copper Alloy | ||
Current 20A | ||
Contact Plating Gold over Nickel | ||
Maximum Contact Resistance 2.7mΩ | ||
Series 173112 | ||
Termination Type PCB | ||
Length 17.7mm | ||
Standards/Approvals UL Recognised File No. 168813, UL94V-0 | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 16AWG | ||
- COO (Country of Origin):
- DE
Power/Coaxial Contacts
A range of Contacts designed for use in mixed layout Connector shells including Power, Coaxial and High Voltage types.
PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia.
PCB mounting inserts are not suitable for use with right angle PCB connectors.
PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively.
Snap-fit contacts removed with tool, stock no. 485-221
'M' DIN41612 connectors may also be used with mixed layout D shells
50 Ohm Coaxial contacts (straight) accept RG178B/U & RG174A/U cables. Use crimp tool (stock no. 470-099) for the braid and solder for the centre contact. Contacts removed with tool, stock no. 485-221
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Note
Gender details relate to centre conductor
