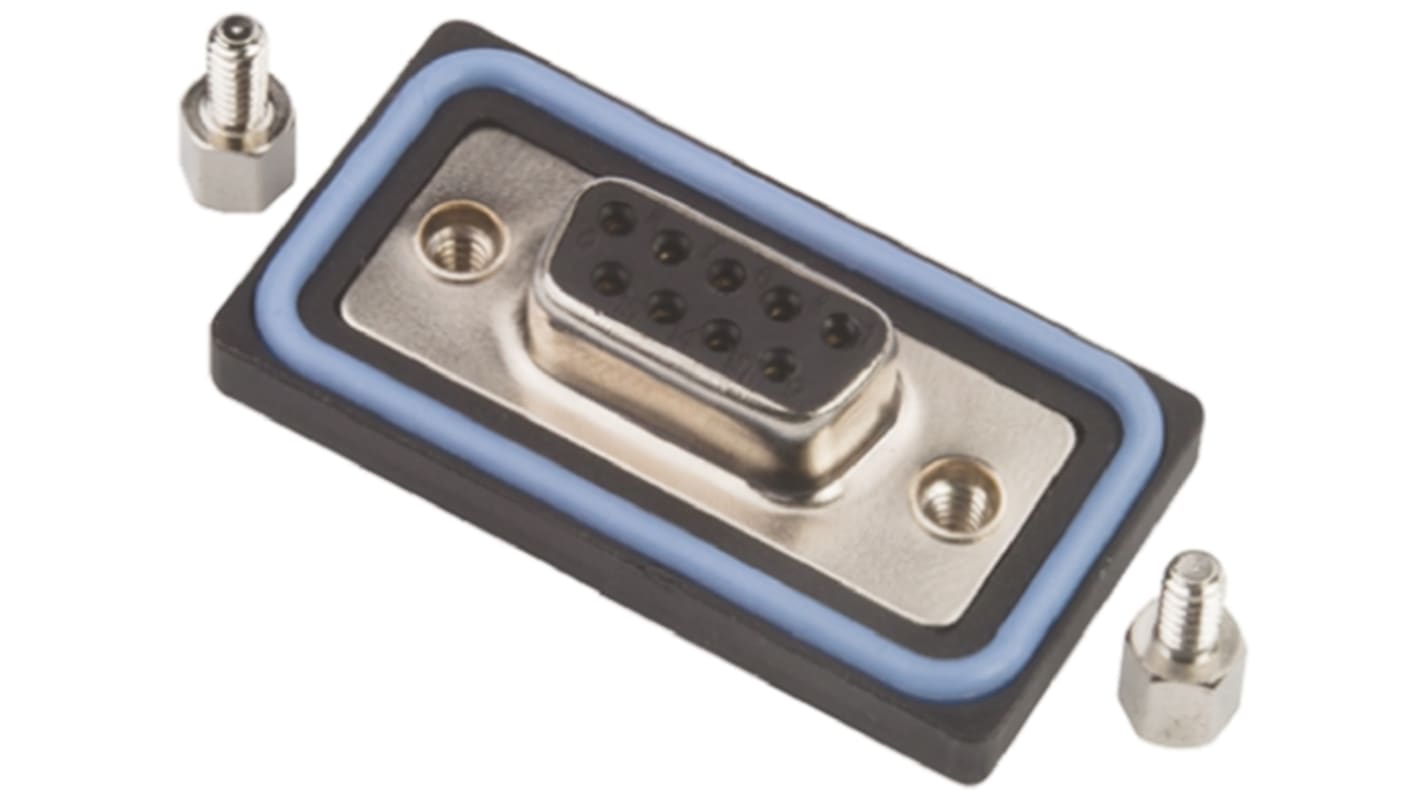

MH Connectors SDB 9 Way Panel Mount D-sub Connector Socket
- RS 제품 번호:
- 720-3114
- 제조사 부품 번호:
- SDB-09PFFS-SL8001
- 제조업체:
- MH Connectors
65 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩12,741.836
| 수량 | 한팩당 |
| 1 - 24 | ₩12,741.836 |
| 25 - 74 | ₩12,358.909 |
| 75 - 199 | ₩11,972.531 |
| 200 - 399 | ₩11,718.971 |
| 400 + | ₩11,465.41 |
- RS 제품 번호:
- 720-3114
- 제조사 부품 번호:
- SDB-09PFFS-SL8001
- 제조업체:
- MH Connectors
제정법과 컴플라이언스
제품 세부 사항
IP67 Sub-D Panel connectors, Wire solder
IP67 waterproof Sub-D connectors, with solder bucket terminations, for panel mount
Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness
Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness
Waterproof (IP67) 'D'
Suitable for military, industrial or commercial applications and computer interfacing etc.
사양
속성 | 값 |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| D Connector Type | Waterproof D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500 V ac |
| Length | 39.4mm |
| Width | 4.6mm |
| Depth | 21.0mm |
| Contact Plating | Gold |
| Contact Material | Brass |
| Dimensions | 39.4 x 4.6 x 21mm |
| Series | SDB |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40.0°C |
