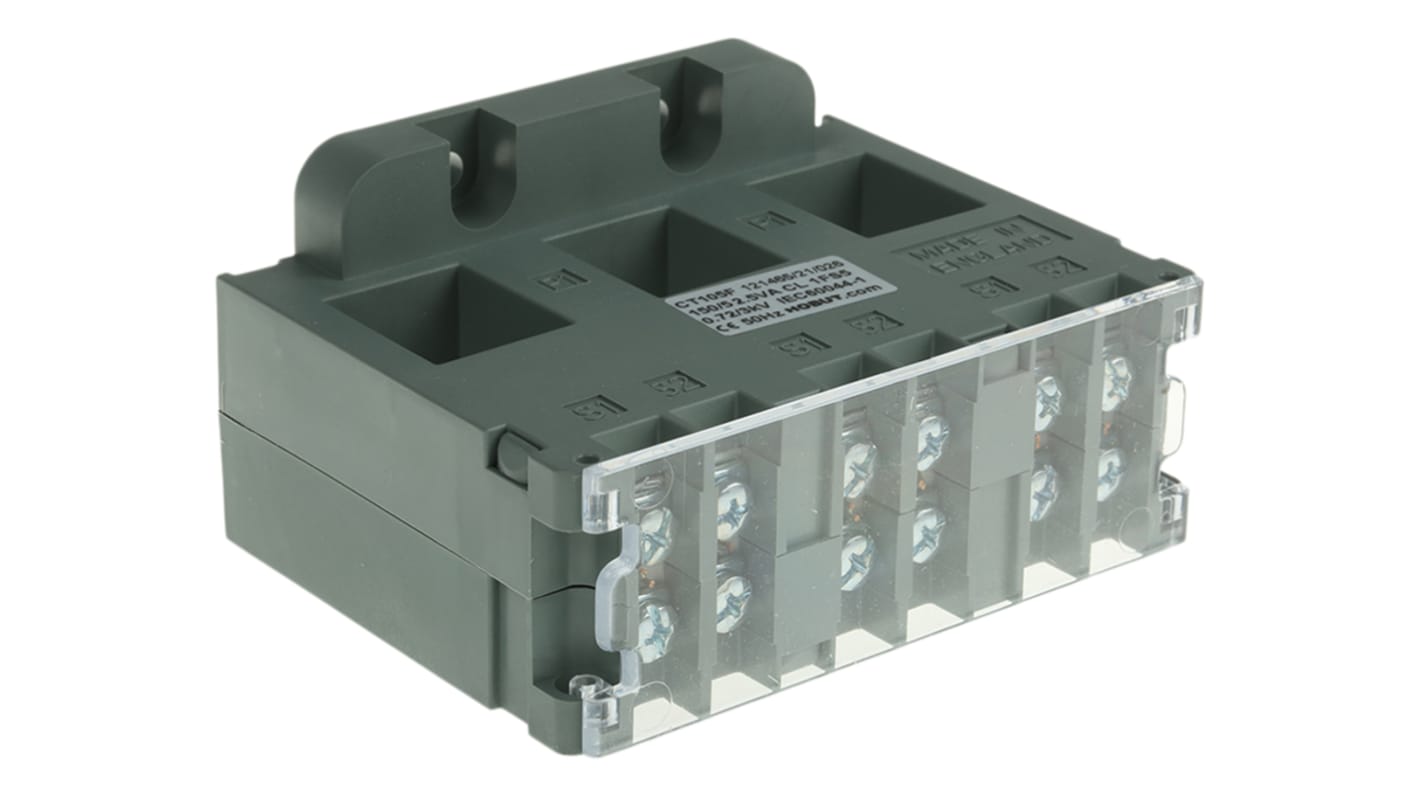

HOBUT CT105 Series Base Mounted Current Transformer, 150:5, 21mm Bore
- RS 제품 번호:
- 668-4055
- 제조사 부품 번호:
- CT105F150/5-2.5/1
- 제조업체:
- HOBUT
17 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩61,321.92
| 수량 | 한팩당 |
| 1 - 4 | ₩61,321.92 |
| 5 - 9 | ₩58,869.112 |
| 10 + | ₩56,418.029 |
- RS 제품 번호:
- 668-4055
- 제조사 부품 번호:
- CT105F150/5-2.5/1
- 제조업체:
- HOBUT
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
CT105 Series 3 Phase Moulded Case Current Transformers
Miniature three phase current transformers suitable for primary ranges from 100A-250A with 5A secondary.For installation onto cables or 21mm maximum busbars.The products have an overall width of 105mm allowing installation directly on top of moulded case circuit breakers.,Supplied with terminal cover and choice of fixings.
Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated system voltage 0.72/3kV
Ambient temperature range -30°C to 80°C
Frequency range 50-60Hz
Insulation level 3kV for 1 minute
Rated system voltage 0.72/3kV
Ambient temperature range -30°C to 80°C
Frequency range 50-60Hz
Insulation level 3kV for 1 minute
Current Transformers
사양
속성 | 값 |
|---|---|
| Current Ratio | 150:5 |
| Series | CT105 |
| Bore Size | 21mm |
| Transformer Type | Base Mounted |
| Overall Height | 79mm |
| Overall Width | 105mm |
| Overall Depth | 53mm |
| Minimum Temperature | -30°C |
| Maximum Temperature | +80°C |
| Mounting Type | Base Mounted |
