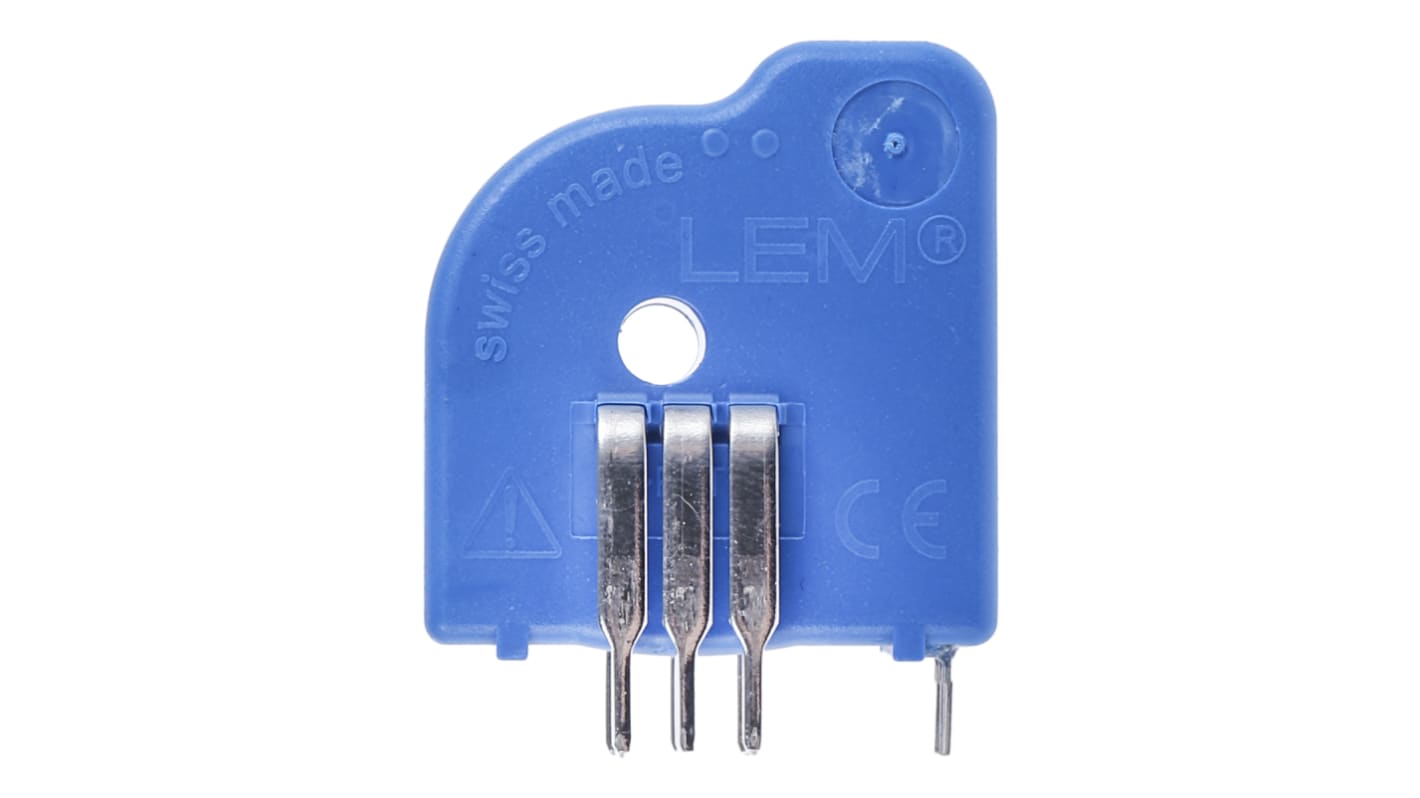

Closed Loop Hall Effect transducers for the accurate measurement of current. The ASIC based transducer offers a ref in/out pin allowing the user to trim out offsets.
AC/DC, and mixed current measurement Closed Loop, high accuracy (better than 1%) Unipolar 5V supply Different measurement ratings by altering pin configuration Compact format Excellent precision and linearity Low temperature drift PCB mounting
Note
No longer suitable for new designs. Direct replacement is LXS/LXSR (with aperture and primary jumpers) and LES/LESR (with primary jumpers only).
