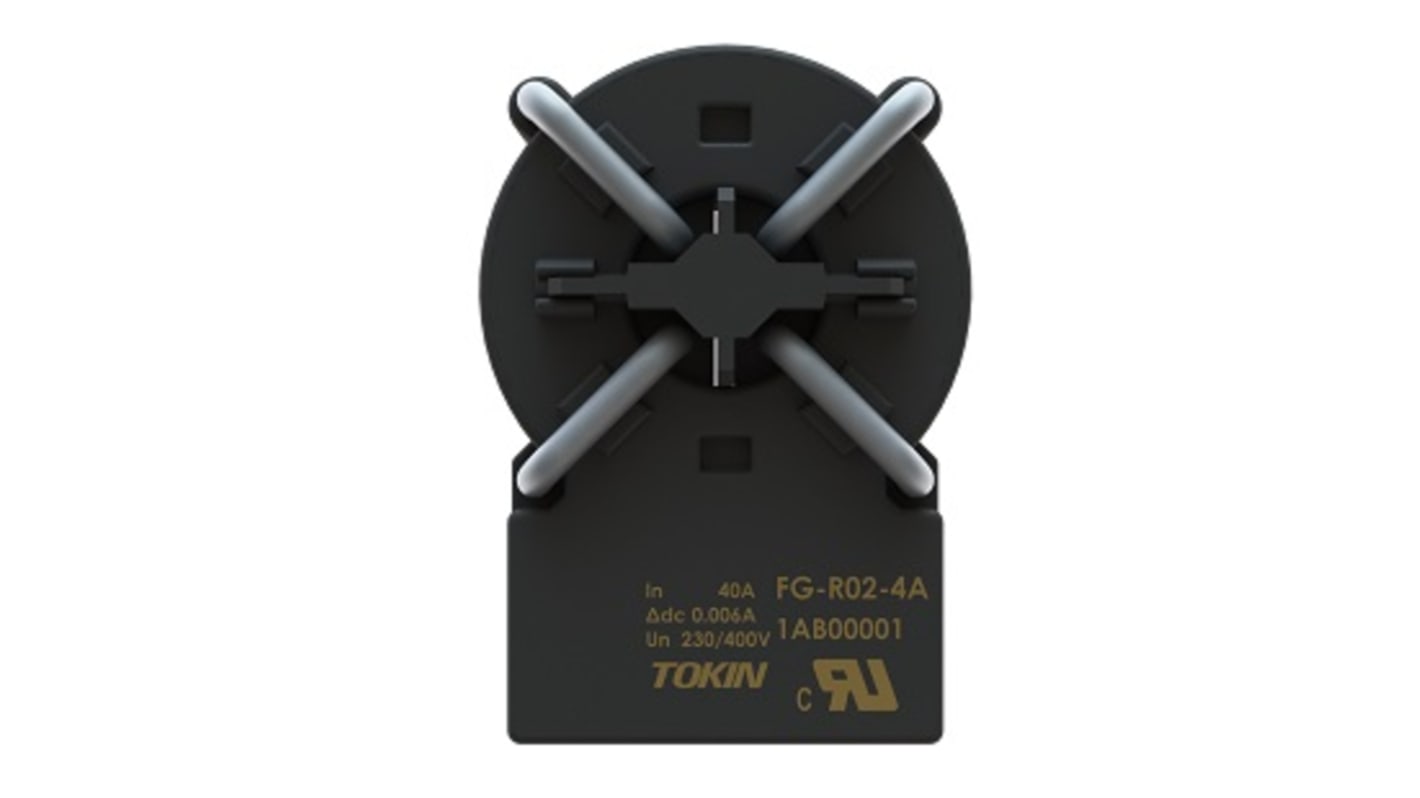

KEMET FG Series Fluxgate Current Sensor, +/-50mA Input, 4A, 6 → 20 mA Output, 34.45mm Bore, 5 V
- RS 제품 번호:
- 268-0568
- 제조사 부품 번호:
- FG-R02-4A
- 제조업체:
- KEMET
29 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩67,497.062
| 수량 | 한팩당 |
| 1 - 4 | ₩67,497.062 |
| 5 - 9 | ₩64,024.838 |
| 10 - 19 | ₩57,896.269 |
| 20 + | ₩54,129.087 |
- RS 제품 번호:
- 268-0568
- 제조사 부품 번호:
- FG-R02-4A
- 제조업체:
- KEMET
제정법과 컴플라이언스
제품 세부 사항
The KEMET Current Sensor is a high sensitivity AC and DC leakage current sensor. This current sensor has individual open drain alarms and an analogue output for leakage current indication. Also this current sensor offers integrated test coil which can be initiated by test input to perform a functional alarm test. This residual current sensor can be use for protection devices or wall box and in cable control applications.
PCB mounting
Digital output of fault detection
Conform to IEC 62752 2016 A1 2018
Conform to IEC 62955 2018 at Conditional
Conform to UL 2231 2
RoHS compliant
3000 A surge current capability
Digital output of fault detection
Conform to IEC 62752 2016 A1 2018
Conform to IEC 62955 2018 at Conditional
Conform to UL 2231 2
RoHS compliant
3000 A surge current capability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Current Ratio | 4A |
| Bore Size | 34.45mm |
| Series | FG |
| Transformer Type | Fluxgate |
| Sensor Technology | Open Loop |
| Supply Voltage | 5 V |
| Input Current | +/-50mA |
| Output Current | 6 → 20 mA |
