Lovato DM Series Solid Core Current Transformer, 4000:5A, 5 A Output, 70x60 mm, 80x50 mm, 100x30 mm Bore
- RS 제품 번호:
- 246-6492
- 제조사 부품 번호:
- DM4T4000
- 제조업체:
- Lovato
일시 품절-다음 입고 날짜는 11/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩310,495.799
수량 | 한팩당 |
1 + | ₩310,495.799 |
- RS 제품 번호:
- 246-6492
- 제조사 부품 번호:
- DM4T4000
- 제조업체:
- Lovato
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

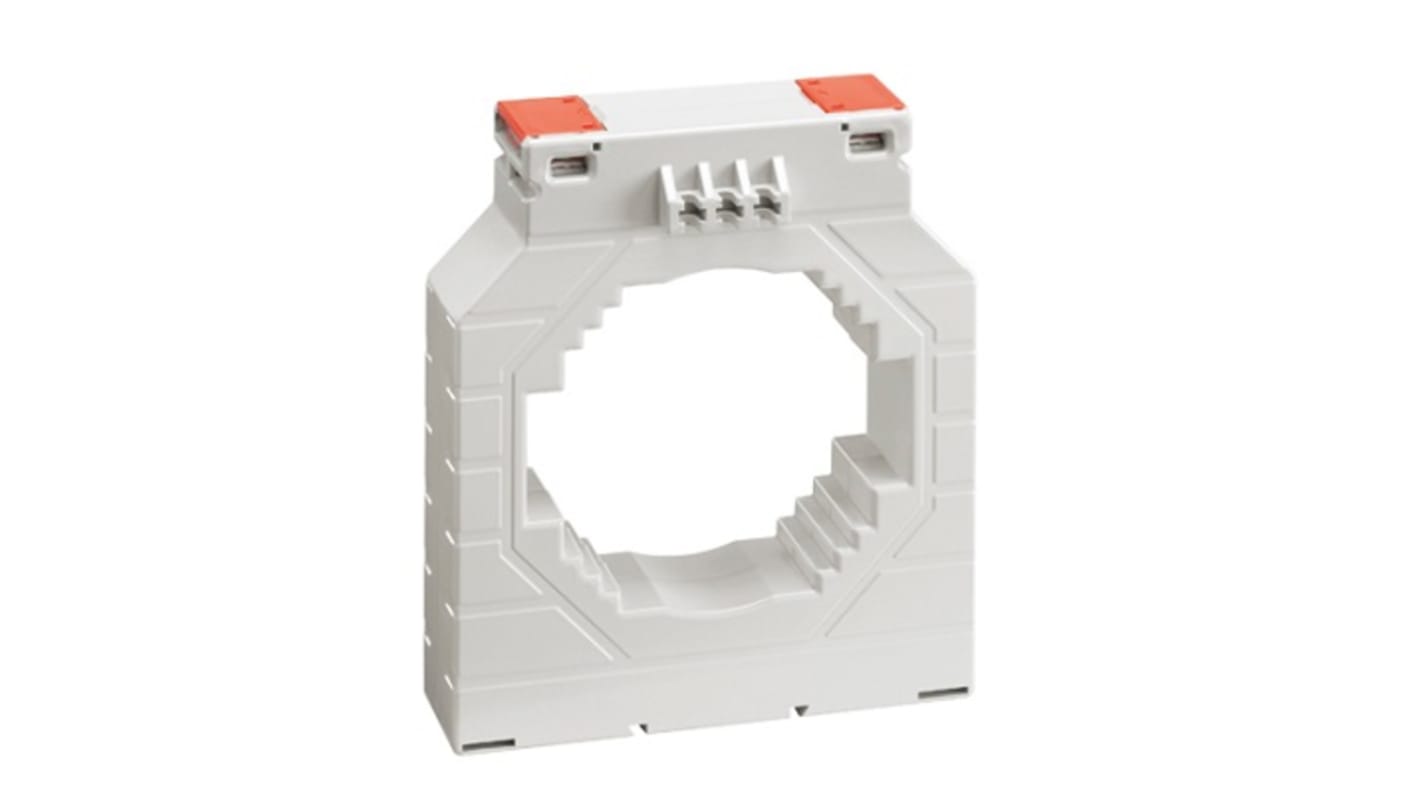

The Lovato Current transformer is a solid-core transformer used for 100 x 30, 80 x 50, 70 x 60 mm busbars for 86 mm cable with primary current 4000 A and secondary output current 5 A.
Operational frequency 60 Hz
Terminals type screw
DIN rail or by screw fixing
Operating temperature +50 °C
Protection degree IP30
Terminals type screw
DIN rail or by screw fixing
Operating temperature +50 °C
Protection degree IP30
사양
속성 | 값 |
---|---|
Current Ratio | 4000:5A |
Bore Size | 70x60 mm, 80x50 mm, 100x30 mm |
Series | DM |
Transformer Type | Solid Core |
Sensor Technology | Current Transformer |
Output Current | 5 A |
