- RS 제품 번호:
- 226-9617
- 제조사 부품 번호:
- CSDC1BA
- 제조업체:
- Honeywell
단종
- RS 제품 번호:
- 226-9617
- 제조사 부품 번호:
- CSDC1BA
- 제조업체:
- Honeywell
참조 문서
제정법과 컴플라이언스
제품 세부 사항

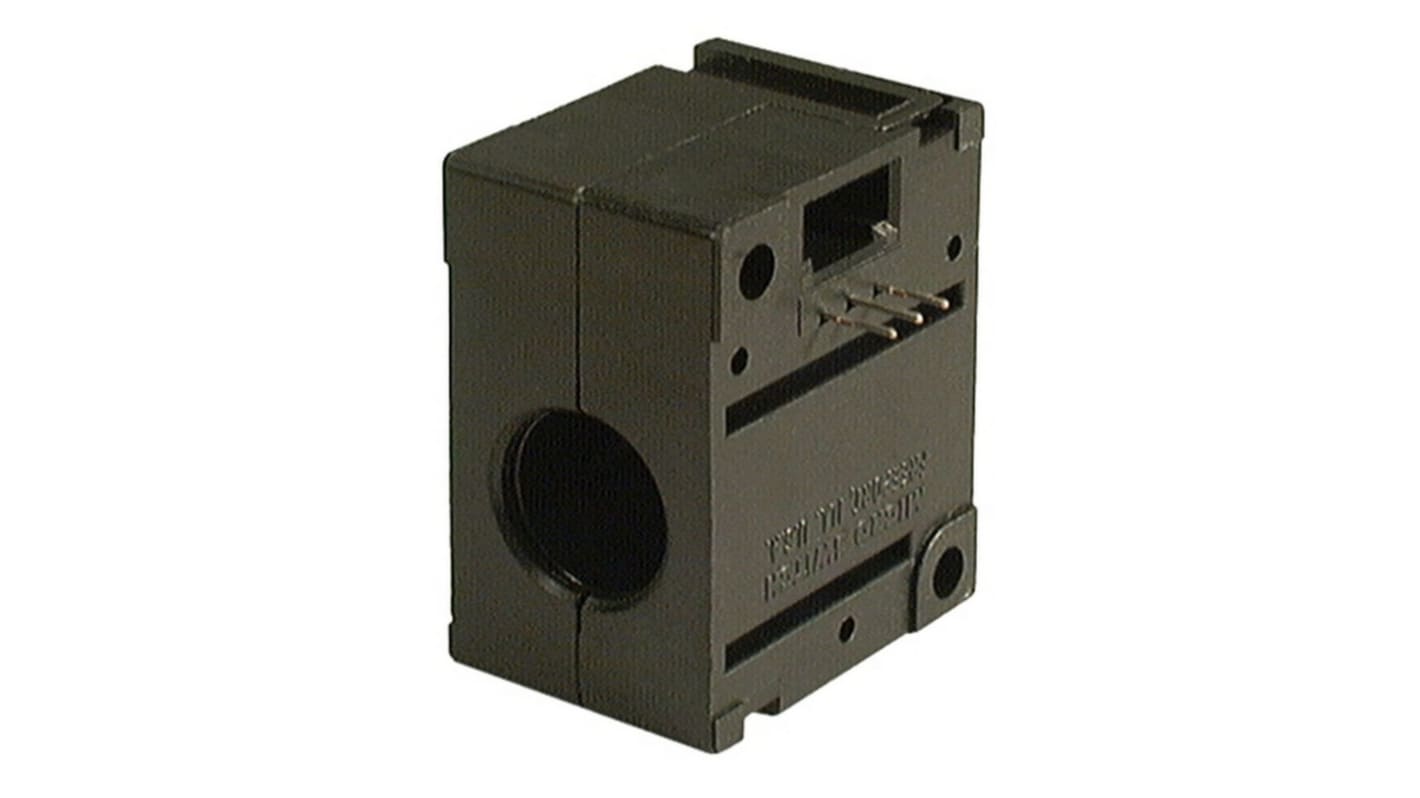

The Honeywell CS Series of current detectors have a single digital TTL logic level, open collector output that will sink 20mA of output current. This is an open collector output. Normal mounting is with two screws inserted through the mounting holes in the housing. Three 0.20 inch long printed circuit board mounting pins are optional.
These sensors did not get damaged by overcurrent in the sensed conductor.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Bore Size | 10.9mm |
Series | CS |
Sensor Technology | Open Loop |
Supply Voltage | 5 V dc |
Input Current | 320mA |
Output Current | 20 mA |
Overall Height | 31.8mm |
Overall Width | 25.4mm |
