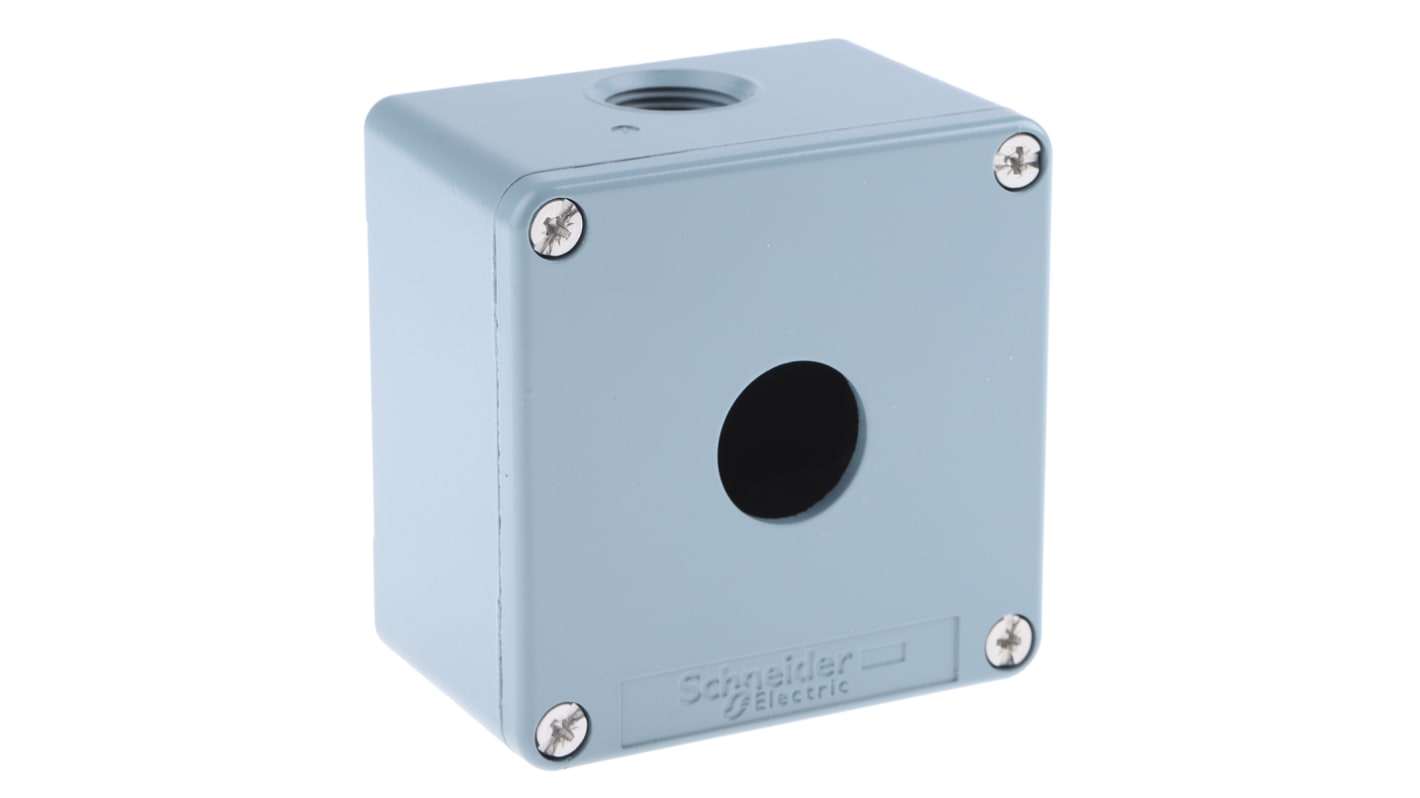

Schneider Electric Blue Metal Harmony XAP Push Button Enclosure - 1 Hole 22mm Diameter
- RS 제품 번호:
- 319-225
- 제조사 부품 번호:
- XAPM1201H29
- 제조업체:
- Schneider Electric
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 319-225
- 제조사 부품 번호:
- XAPM1201H29
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Series | Harmony XAP | |
| Cutout Diameter | 22mm | |
| Number of Cutouts | 1 | |
| Enclosure Colour | Blue | |
| Enclosure Marking | None | |
| Enclosure Material | Metal | |
| Length | 80mm | |
| Width | 80mm | |
| Depth | 49mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Dimensions | 80 x 80 x 49mm | |
| Operating Temperature Range | -25 → 70°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Series Harmony XAP | ||
Cutout Diameter 22mm | ||
Number of Cutouts 1 | ||
Enclosure Colour Blue | ||
Enclosure Marking None | ||
Enclosure Material Metal | ||
Length 80mm | ||
Width 80mm | ||
Depth 49mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Dimensions 80 x 80 x 49mm | ||
Operating Temperature Range -25 → 70°C | ||
해당 안됨
- COO (Country of Origin):
- MA
Zinc Alloy
Harmony is a machine and panel solution series from Schneider Electric, the series includes push buttons, pilot lights, switches and other panel solutions offering high-performance without compromise. Offering modern and stylish design, efficiency, robustness in harsh environments, the Harmony series is one of the most comprehensive ranges available.
The Harmony XAPM series is a variety of push button enclosures or control stations, which are compatible with other items in the Harmony range such as buttons and LEDs. Perfectly suited for many typical operator dialog functions, they have been specifically designed for simple installation whilst having a robust construction. Moulded from Zinc alloy and featuring the enclosure and screw lid, the XAPM enclosures feature 1 to 8 drilled holes. Compliant with IEC, UL and CSA standards, Harmony enclosures are also IP65 dust and damp proof providing durability and peace of mind even in the harshest of environments.
The Harmony XAPM series is a variety of push button enclosures or control stations, which are compatible with other items in the Harmony range such as buttons and LEDs. Perfectly suited for many typical operator dialog functions, they have been specifically designed for simple installation whilst having a robust construction. Moulded from Zinc alloy and featuring the enclosure and screw lid, the XAPM enclosures feature 1 to 8 drilled holes. Compliant with IEC, UL and CSA standards, Harmony enclosures are also IP65 dust and damp proof providing durability and peace of mind even in the harshest of environments.
Features and Benefits:
Blue paint finish
Control station enclosures
Control station enclosures
Protection ratings & Safety features:
• Overvoltage rating Class I conforming to NF C 20-030 and IEC 60536
• IP65 conforming to IEC 60529
• IP69K
• IP69 conforming to NF C 20-010
• IP65 conforming to IEC 60529
• IP69K
• IP69 conforming to NF C 20-010
Applications - Industry, service sector and infrastructure such as:
• Machine manufacturers
• Automotive
• Energy distribution
• Building
• Airports
• Public works
• Machine manufacturers
• Automotive
• Energy distribution
• Building
• Airports
• Public works
Note
Type A for standard push buttons. Type B for use when contact blocks are stacked or with transformer units without contact blocks.
Schneider Electric Push Button Enclosure XAPM1201H29
• This push button enclosure forms part of the Harmony XAP range of products from Schneider Electric
• It is an empty die-cast control station
• The from plate dimensions are 80 x 80 mm
• 1 cut out
• Both the cover and base are the colour blue
• Comprised of zinc alloy
• Cable entry 1 hole with blanking plug for ISO 429248 cable
• Gland has a measurement of 20 mm
• 1 hole without blanking plug for ISO 429248 cable
• Enclosures featured come with 22mm holes unless otherwise stated
• It is an empty die-cast control station
• The from plate dimensions are 80 x 80 mm
• 1 cut out
• Both the cover and base are the colour blue
• Comprised of zinc alloy
• Cable entry 1 hole with blanking plug for ISO 429248 cable
• Gland has a measurement of 20 mm
• 1 hole without blanking plug for ISO 429248 cable
• Enclosures featured come with 22mm holes unless otherwise stated
Enclosures
Enclosures featured come with 22mm holes unless otherwise stated.
