Schneider Electric, TeSys Deca Thermal Overload Relay 1 NO/1 NC, 48A, 65 A F.L.C, 65A Contact Rating, 37 kW, 6kV 3

RS 제품 번호:: 727-6217
제조사 부품 번호:: LRD365
제조업체:: Schneider Electric

Schneider Electric, TeSys Deca Thermal Overload Relay 1 NO/1 NC, 48A, 65 A F.L.C, 65A Contact Rating, 37 kW, 6kV 3

Subtotal (1 unit)*

₩278,128.50

추가로 2026년 5월 04일 부터 10 개 단위 배송
추가로 2026년 5월 15일 부터 12 개 단위 배송
추가로 2026년 6월 05일 부터 6 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩278,128.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:: 727-6217
제조사 부품 번호:: LRD365
제조업체:: Schneider Electric

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Product Type	Thermal Overload Relay
	FLC Motor Rating	48, 65A
	Relay Contact Current	65A
	Series	TeSys Deca
	Mount Type	DIN Rail
	Power Rating	37kW
	Pole and Throw Configuration	3
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw Clamp
	IP Rating	IP20
	Reset Method	Push Button
	Adjustable Current Range	48 to 65 A
	Number of Auxiliary Contacts	2
	Minimum Operating Temperature	-20°C
	Width	55mm
	Length	70mm
	Contact Voltage	1kV ac
	Maximum Operating Temperature	60°C
	Standards/Approvals	GB/T 14048.4, GB/T 14048.5, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1
	Depth	116mm
	Better World Product	Yes
	Supply Voltage	690V
	Control Voltage	6kV

	모두 선택
	브랜드 Schneider Electric
	Product Type Thermal Overload Relay
	FLC Motor Rating 48, 65A
	Relay Contact Current 65A
	Series TeSys Deca
	Mount Type DIN Rail
	Power Rating 37kW
	Pole and Throw Configuration 3
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw Clamp
	IP Rating IP20
	Reset Method Push Button
	Adjustable Current Range 48 to 65 A
	Number of Auxiliary Contacts 2
	Minimum Operating Temperature -20°C
	Width 55mm
	Length 70mm
	Contact Voltage 1kV ac
	Maximum Operating Temperature 60°C
	Standards/Approvals GB/T 14048.4, GB/T 14048.5, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1
	Depth 116mm
	Better World Product Yes
	Supply Voltage 690V
	Control Voltage 6kV

로그인하여 CAD 모델 다운로드

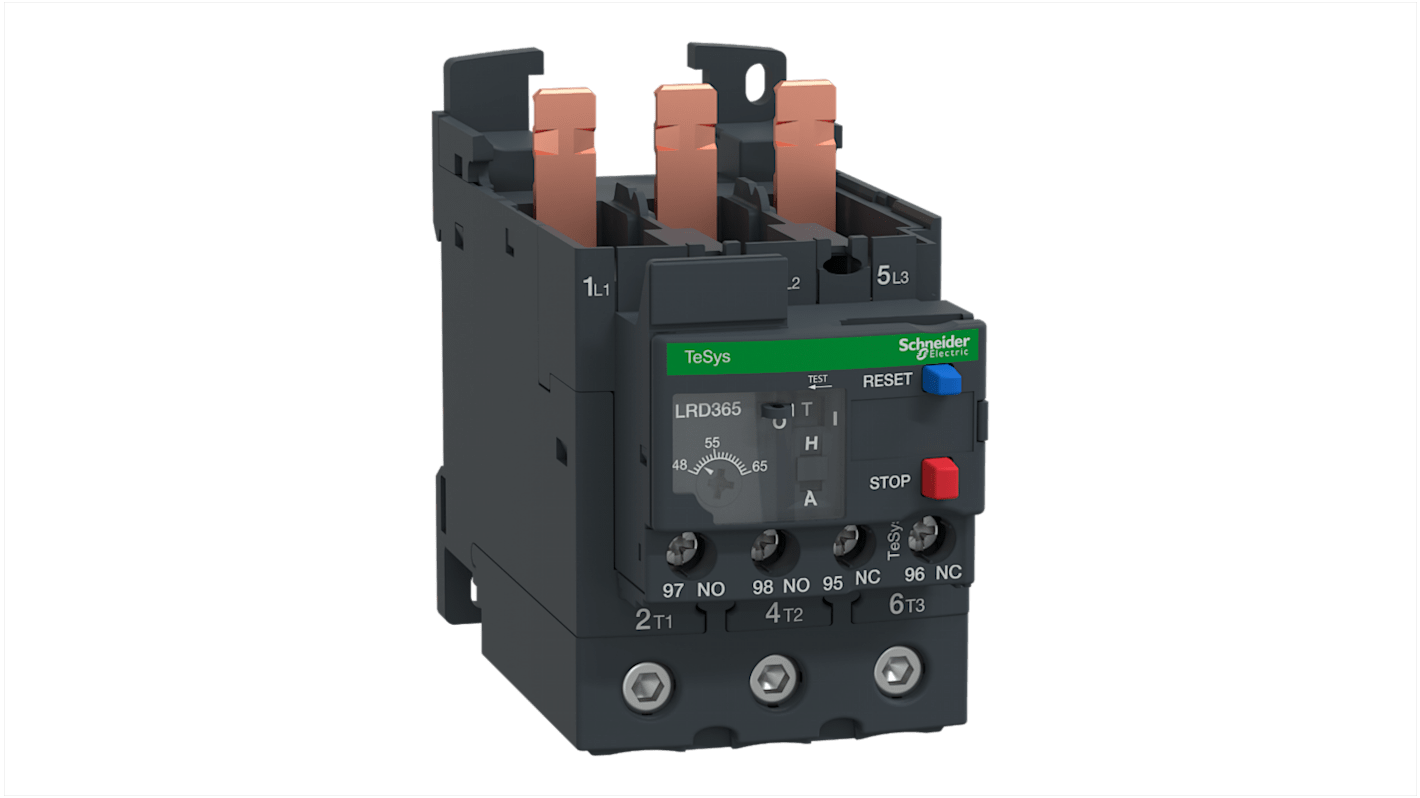

Schneider Electric LRD Series Thermal Overload Relay, 48 to 65A FLC Motor Rating, 65A Contact Current Rating - LRD365

This thermal overload relay offers reliable motor protection in industrial applications. Designed as a TeSys overload relay, it operates within a current rating of 48 to 65 A. With its compact dimensions of 55mm in width, 116mm in depth, and 70mm in height, this DIN rail mount relay is engineered for optimal performance even in challenging environmental conditions.

Features & Benefits

• Operates at a maximum temperature of +60°C

• Offers a push button reset method for ease of use

• Features a screw terminal design for reliable connections

• Includes two auxiliary contacts for additional functionality

• Thermal protection adjustment range tailored for diverse requirement

Applications

• Used with DC and AC motor systems for effective protection

• Ideal for integration with LC1D65A and LC1D50A contactors

• Suitable for environments requiring precise thermal management

• Used for industrial machinery needing overload protection

What is the tripping threshold for this relay?

The tripping threshold is set at 1.14 +/- 0.06 Ir according to IEC 60947-4-1 standards, ensuring accurate protection against overloads.

How does the thermal overload relay's environmental tolerance benefit its application?

It operates in ambient temperatures ranging from -20 to +60 °C, making it versatile for various climates, enhancing its usability across different environments.

What is the significance of the auxiliary contacts in this relay?

The inclusion of one normally open (NO) and one normally closed (NC) auxiliary contact allows for additional signalling and control, enhancing the relay's functionality in motor protection setups.

Standards

EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495.
