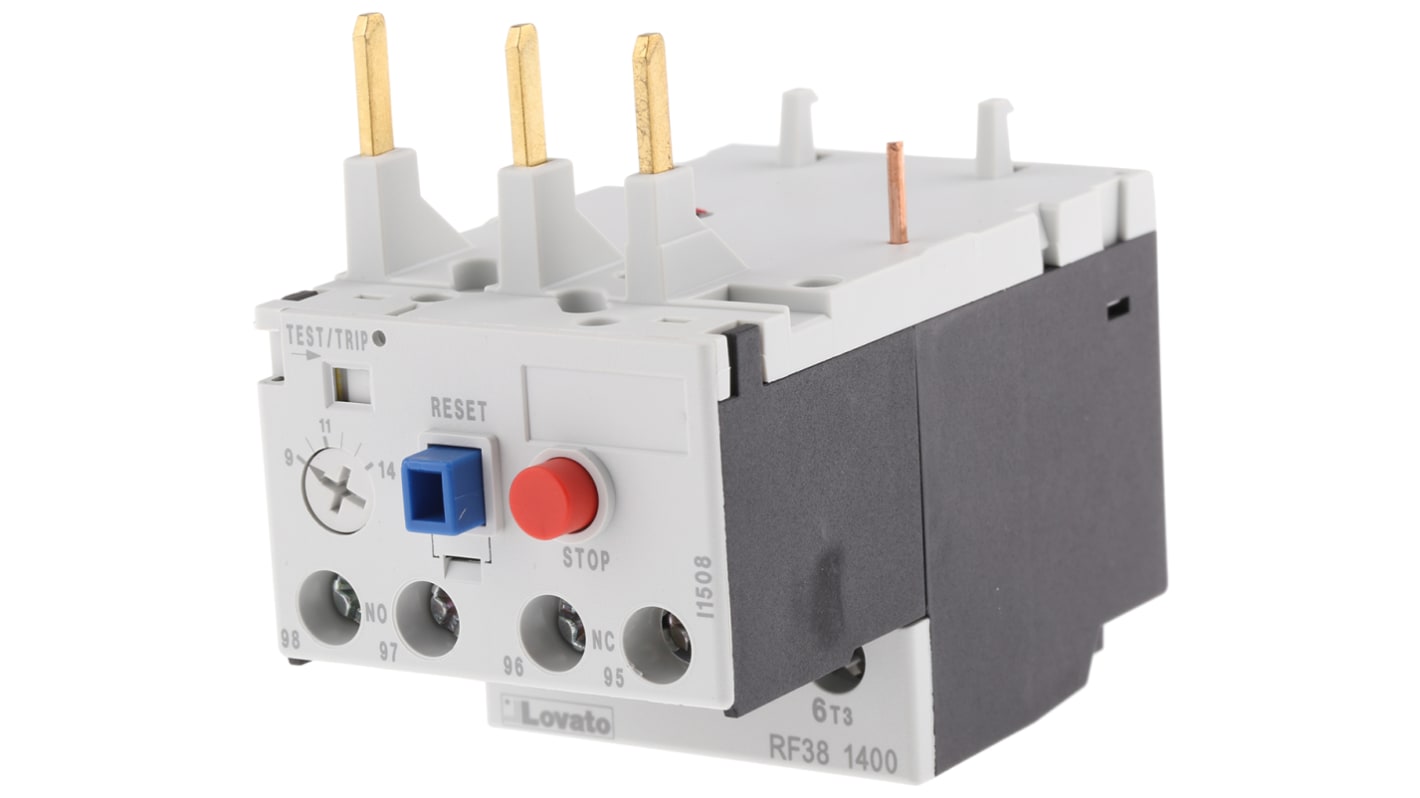

Lovato, RF38 Thermal Overload Relay NO/NC, 14A, 9 A F.L.C, 14A Contact Rating 3
- RS 제품 번호:
- 685-1328
- 제조사 부품 번호:
- RF381400
- 제조업체:
- Lovato
Subtotal (1 unit)*
₩120,822.00
재고있음
- 50 개 단위 배송 준비 완료
- 추가로 2026년 5월 14일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩120,822.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 685-1328
- 제조사 부품 번호:
- RF381400
- 제조업체:
- Lovato
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lovato | |
| FLC Motor Rating | 14, 9A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 14A | |
| Series | RF38 | |
| Mount Type | Direct | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | NO/NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Width | 45mm | |
| Adjustable Current Range | 9 to 14 A | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 60°C | |
| Length | 126mm | |
| Contact Voltage | 690V | |
| Depth | 81.2mm | |
| Standards/Approvals | CSA, EAC, IEC/EN 60947, UL 508 | |
| Supply Voltage | 690V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lovato | ||
FLC Motor Rating 14, 9A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 14A | ||
Series RF38 | ||
Mount Type Direct | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration NO/NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Width 45mm | ||
Adjustable Current Range 9 to 14 A | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 60°C | ||
Length 126mm | ||
Contact Voltage 690V | ||
Depth 81.2mm | ||
Standards/Approvals CSA, EAC, IEC/EN 60947, UL 508 | ||
Supply Voltage 690V | ||
Lovato RF38 Series Thermal Overload Relay, 14A Contact Current, +60 °C Maximum Operating Temperature - RF381400
The Lovato thermal overload relay, with a 14 Amp capacity and a 3P Pole Configuration, provides reliable protection for motors in various applications. This high-traffic relay ensures safe operation by monitoring the motor's FLC rating, operating temperature range, and offers automatic or manual reset options. With the ability to reset based on set parametres, the relay is a trusted solution for maintaining optimal motor performance.
Features & Benefits
• Monitors motor FLC rating to prevent overload conditions
• Wide operating temperature range of -25°C to +60°C ensures functionality in various environments
• 3P Pole Configuration for efficient power distribution and reliable performance
• Automatic and manual reset options for flexibility in resetting procedures
Applications
• Ideal for use in industrial automation applications
• Suitable for electrical and mechanical industries for motor protection
• Used in electronics to ensure motor reliability and safety
Can it monitor the FLC rating effectively to prevent motor overload?
Yes, the Lovato thermal overload relay is designed to monitor the motor's FLC rating effectively, ensuring protection against overload conditions.
Will it operate within a wide temperature range?
The relay is capable of operating in temperatures ranging from -25°C to +60°C, making it suitable for various environments and applications.
Is the 3P Pole Configuration reliable for efficient power distribution?
Yes, the 3P Pole Configuration of the relay ensures efficient power distribution and reliable performance for motors.
Can it automatically reset after a fault condition is detected?
The Lovato relay offers both automatic and manual reset options, allowing for flexibility in resetting procedures based on specific needs.
