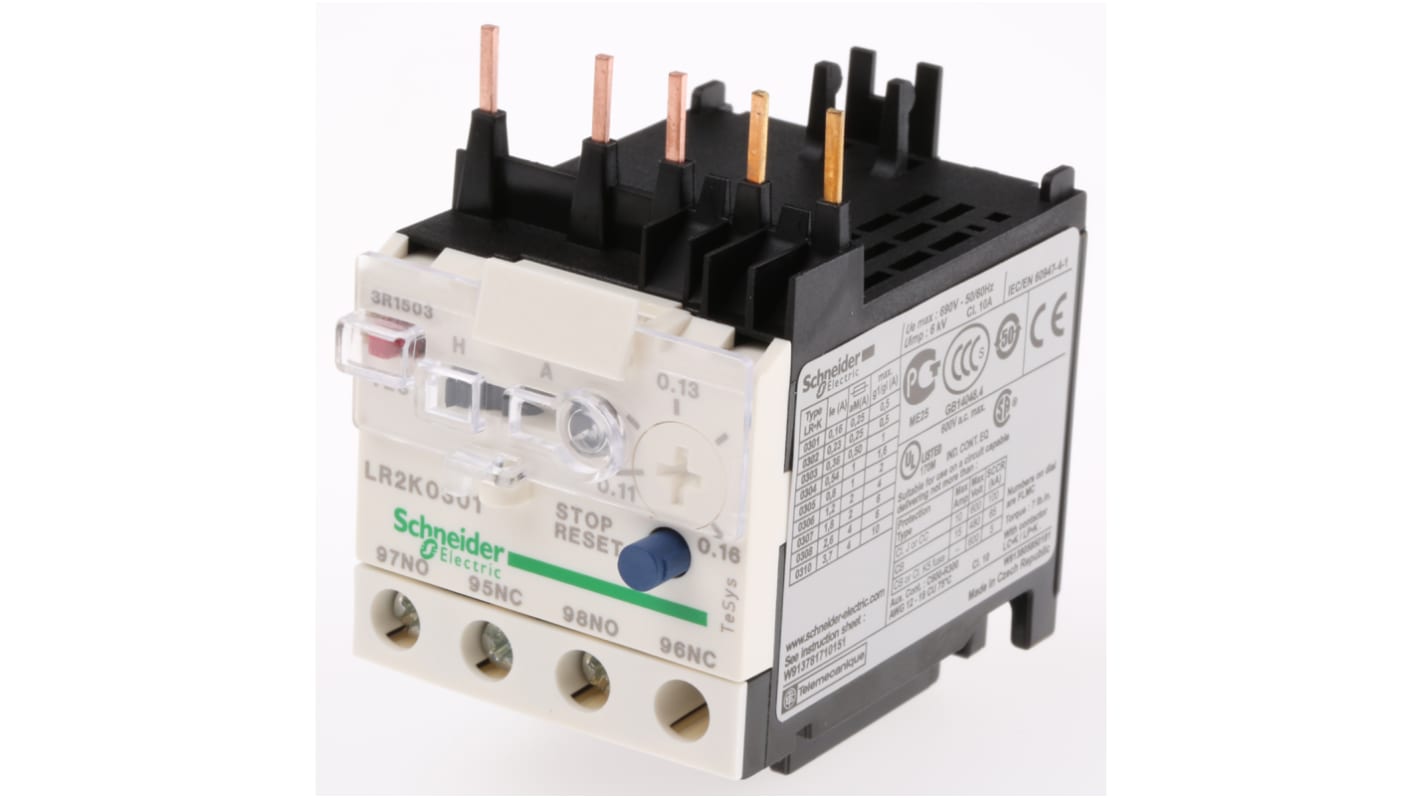

Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 0.11 → 0.16 A F.L.C, 160 mA Contact Rating, 100 W, 250
- RS 제품 번호:
- 372-8969
- 제조사 부품 번호:
- LR2K0301
- 제조업체:
- Schneider Electric
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩87,608.00
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩87,608.00 |
| 6 + | ₩84,111.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 372-8969
- 제조사 부품 번호:
- LR2K0301
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| FLC Motor Rating | 0.11 → 0.16 A | |
| Contact Current Rating | 160 mA | |
| Range | TeSys | |
| Pole Configuration | 3P | |
| Series | LR2K | |
| Mounting Style | Direct Contactor | |
| Power Rating | 100 W | |
| Normal State Configuration | NO/NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic, Manual | |
| Width | 45mm | |
| Number Of Auxiliary Contacts | 2 | |
| Depth | 65mm | |
| Length | 116mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Better World Product | Yes | |
| Operating Temperature Range | -20 → +55 °C | |
| Better World Verification | Green Premium | |
| Control Voltage | 250 V dc, 690 V ac | |
| Contact Voltage Rating | 690 V ac | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
FLC Motor Rating 0.11 → 0.16 A | ||
Contact Current Rating 160 mA | ||
Range TeSys | ||
Pole Configuration 3P | ||
Series LR2K | ||
Mounting Style Direct Contactor | ||
Power Rating 100 W | ||
Normal State Configuration NO/NC | ||
Terminal Type Screw | ||
Reset Method Automatic, Manual | ||
Width 45mm | ||
Number Of Auxiliary Contacts 2 | ||
Depth 65mm | ||
Length 116mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Better World Product Yes | ||
Operating Temperature Range -20 → +55 °C | ||
Better World Verification Green Premium | ||
Control Voltage 250 V dc, 690 V ac | ||
Contact Voltage Rating 690 V ac | ||
Thermal Overload Relays
Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
Features & Benefits
Phase failure sensitive
Test Button
Trip-Fault Indication
Manual or automatic reset facility
Temp. compensated trip -20 to +55°C
Test Button
Trip-Fault Indication
Manual or automatic reset facility
Temp. compensated trip -20 to +55°C
Applications of a Contactor and Control Overload Relay
• The majority of the time is to protect a motor
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics
Standards
IEC 947, BS4941, VDE 0660, NFC63-650
Approvals
CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB
