제조사부품번호

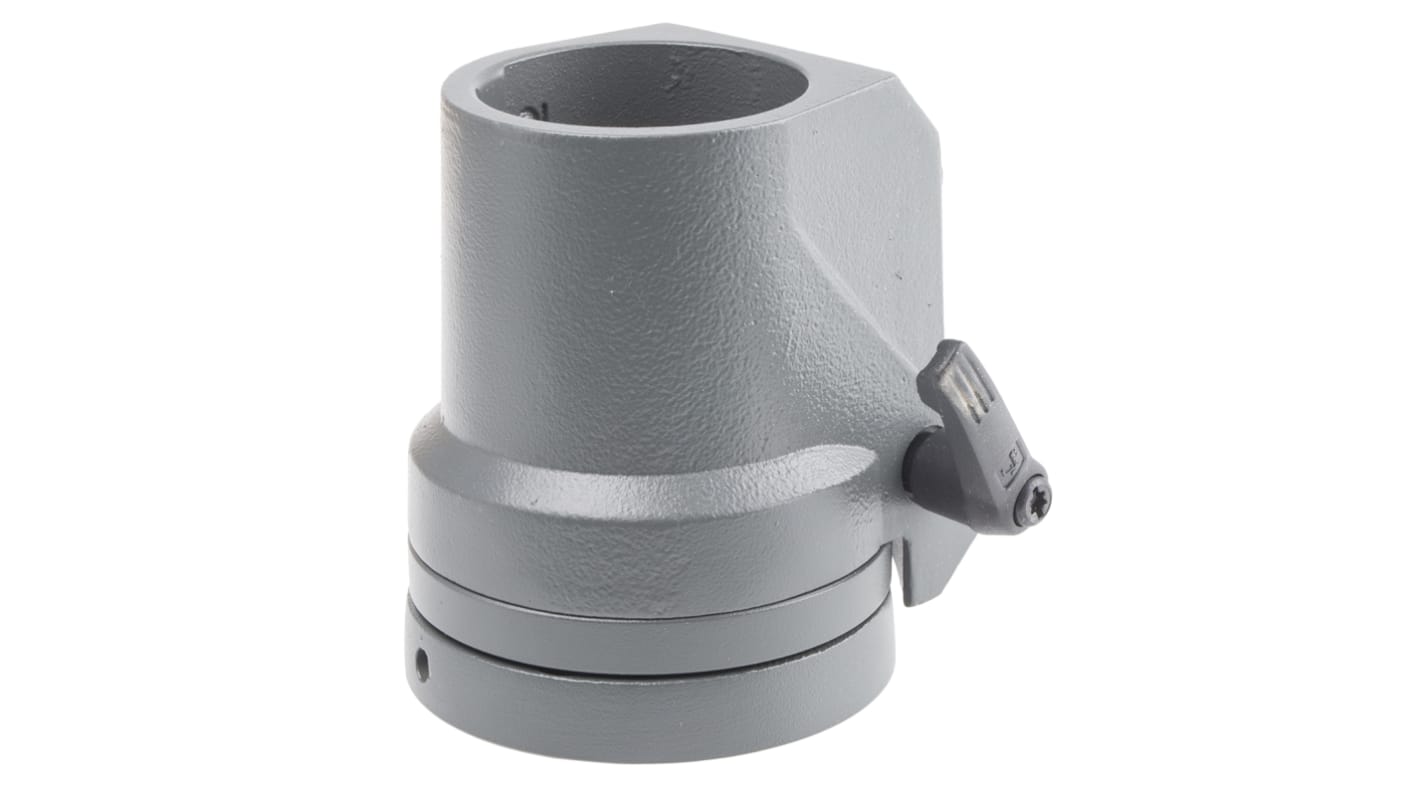

Rose Flange Clamp, Connecting Component, Strut Profile 48 mm, Groove Size 48 mm, Round Tube Size 48 mm

RS 제품 번호:: 435-6290
제조사 부품 번호:: 49497700
제조업체:: Rose

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩176,945.60

재고있음

5 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 5	₩176,945.60
6 +	₩169,181.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 435-6290
제조사 부품 번호:: 49497700
제조업체:: Rose

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Rose
	Product Type	Connecting Component
	Connector Type	Flange Clamp
	Compatible Groove Size	48 mm
	Compatible Strut Profile	48 mm
	Material	Aluminium
	Structural Element Type	Connector Bracket & Joint
	Compatible Tube Size	48 mm
	Product System	GT
	Standards/Approvals	No

	모두 선택
	브랜드 Rose
	Product Type Connecting Component
	Connector Type Flange Clamp
	Compatible Groove Size 48 mm
	Compatible Strut Profile 48 mm
	Material Aluminium
	Structural Element Type Connector Bracket & Joint
	Compatible Tube Size 48 mm
	Product System GT
	Standards/Approvals No

COO (Country of Origin):: DE

Flange Coupling GT KUF 48

Cast aluminium with inner steel tube

Large-surface flange fastening on enclosure

260° swing infinite adjustment

RK Equipment Carrier System

Range of Rose & Krieger equipment carrier components to support, contain, and protect control and communication cables.

Based on a standardised round steel tube 48mm in diameter, the different system elements can be combined so as to allow individual system structure to be set up within a short time

The steel tube is available in three different lengths for cutting to shorter length if required

Attachment to the system elements is made with self-tapping Allen screws

A free cable passage 40mm in diameter is provided

Rose Flange Clamp, Connecting Component, Strut Profile 48 mm, Groove Size 48 mm, Round Tube Size 48 mm

Flange Coupling GT KUF 48

RK Equipment Carrier System
