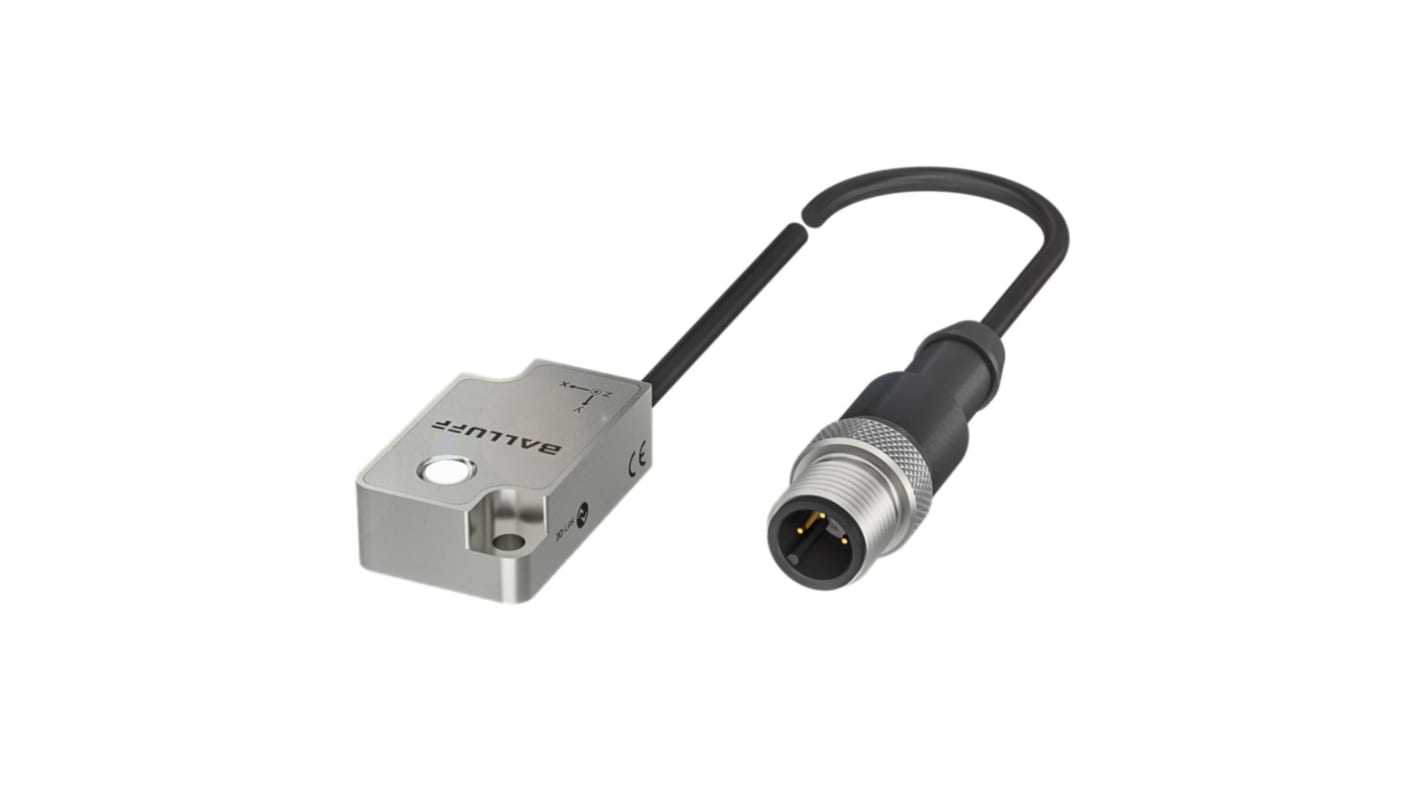

BALLUFF BCM Vibration Velocity, Vibration Acceleration, Vibration Severity Zone, Contact Temperature, Relative

모든 Condition Monitoring 열람하기

Subtotal (1 unit)*

₩1,404,164.48

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 1월 05일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,404,164.48

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
207-2208
제조사 부품 번호:
BCM0002
제조업체:
BALLUFF
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

BALLUFF

Monitoring Application

Vibration Velocity, Vibration Acceleration, Vibration Severity Zone, Contact Temperature, Relative Humidity, Ambient Pressure, Sensor Self-Awareness

Cloud Storage

Yes

Interface

IO-Link

Communication Protocol

IO-LINK

Input Type

Analog/Digital

Monitoring Cycle

Real Time

Software Included

No

IP Rating

IP67

Mounting Type

Direct Screw Mounting, Magnetic Base Option

Portable

Yes

Series

BCM

COO (Country of Origin):
DE
The Balluff condition monitoring sensors detects various physical variables such as vibration, temperature, relative humidity and barometric pressure, processes them and provides the desired data to a host system via IO-Link. The standardized IO-Link protocol means you can easily parameterize the sensors and match the processing in the sensor to your specific application. The process data structure allows up to five measured or pre-processed data to be freely configured and cyclically transmitted.

Function Vibration Velocity, Vibration Acceleration, Vibration Severity Zone, Contact Temperature, Sensor Self Awareness
Vibration, frequency range 2...3200 Hz
Vibration, number of measuring axes 3
Vibration velocity, measuring range RMS 0…220 mm/s @79.4 Hz
Vibration acceleration, measuring range RMS 0…16 g
