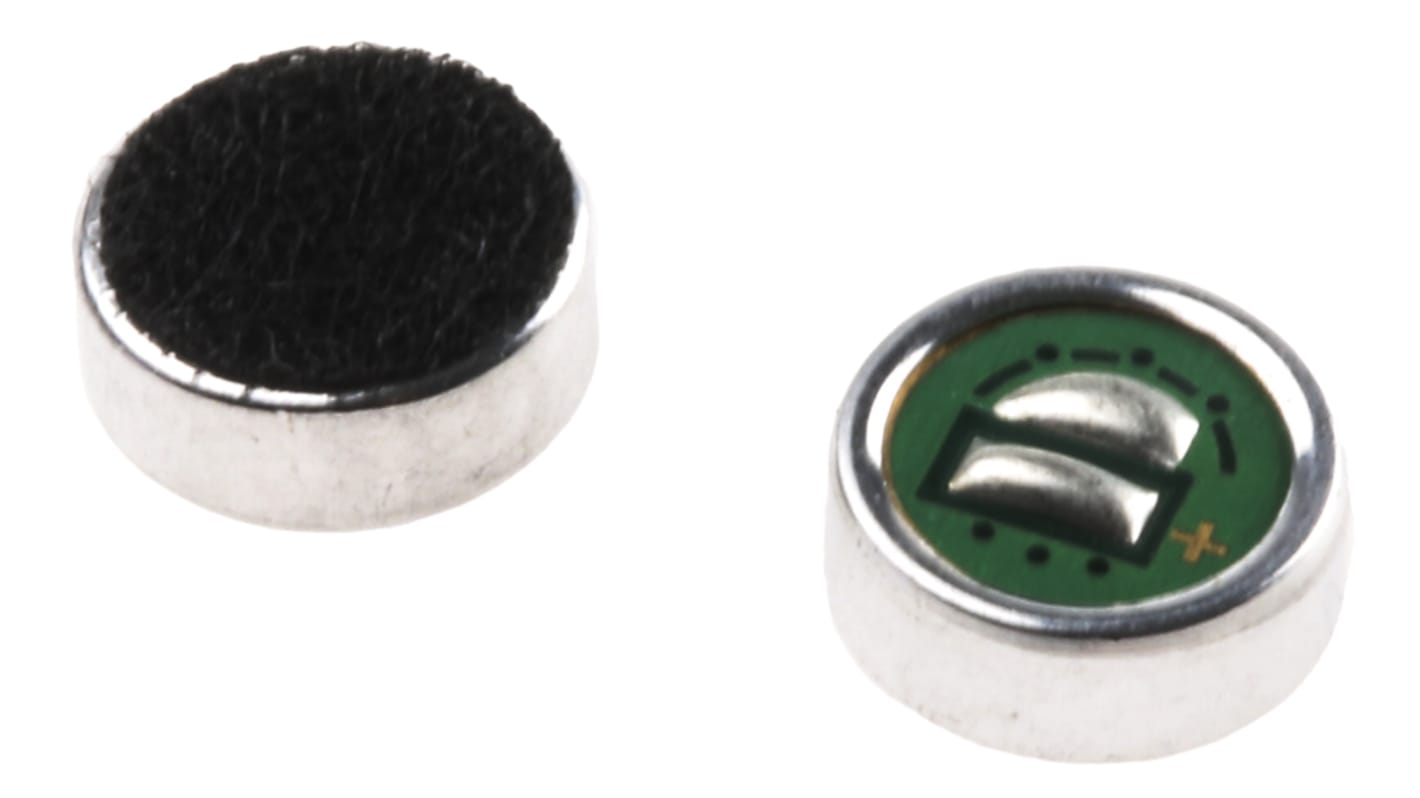

RS PRO Omni-Directional, Surface Mount 6mm Microphone Condenser -42dB
- RS 제품 번호:
- 724-3122
- 제조업체:
- RS PRO
240 <재고있음> 5-9영업일내 홍콩 발송
단가 개당가격(5개가 1팩안에)
₩1,718.00
| 수량 | 한팩당 | 한팩당* |
| 5 - 20 | ₩1,718.00 | ₩8,590.002 |
| 25 - 120 | ₩1,680.053 | ₩8,398.538 |
| 125 + | ₩1,381.645 | ₩6,911.674 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 724-3122
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Electret Microphone Inserts
Range of SMT and PCB mounting miniature electret condenser microphone inserts
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Sensitivity | -42dB |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
| Mounting Type | Surface Mount |
| Output Impedance | 2.2kΩ |
| Signal to Noise Ratio | 60dB |
| Maximum Supply Current | 0.5mA |
| Dimensions | 6 (Dia.) x 2.2mm |
| Diameter | 6mm |
| Height | 2.2mm |
| Maximum Frequency | 16kHz |
| Maximum Operating Temperature | +70°C |
| Minimum Frequency | 50Hz |
| Minimum Operating Temperature | -20°C |
