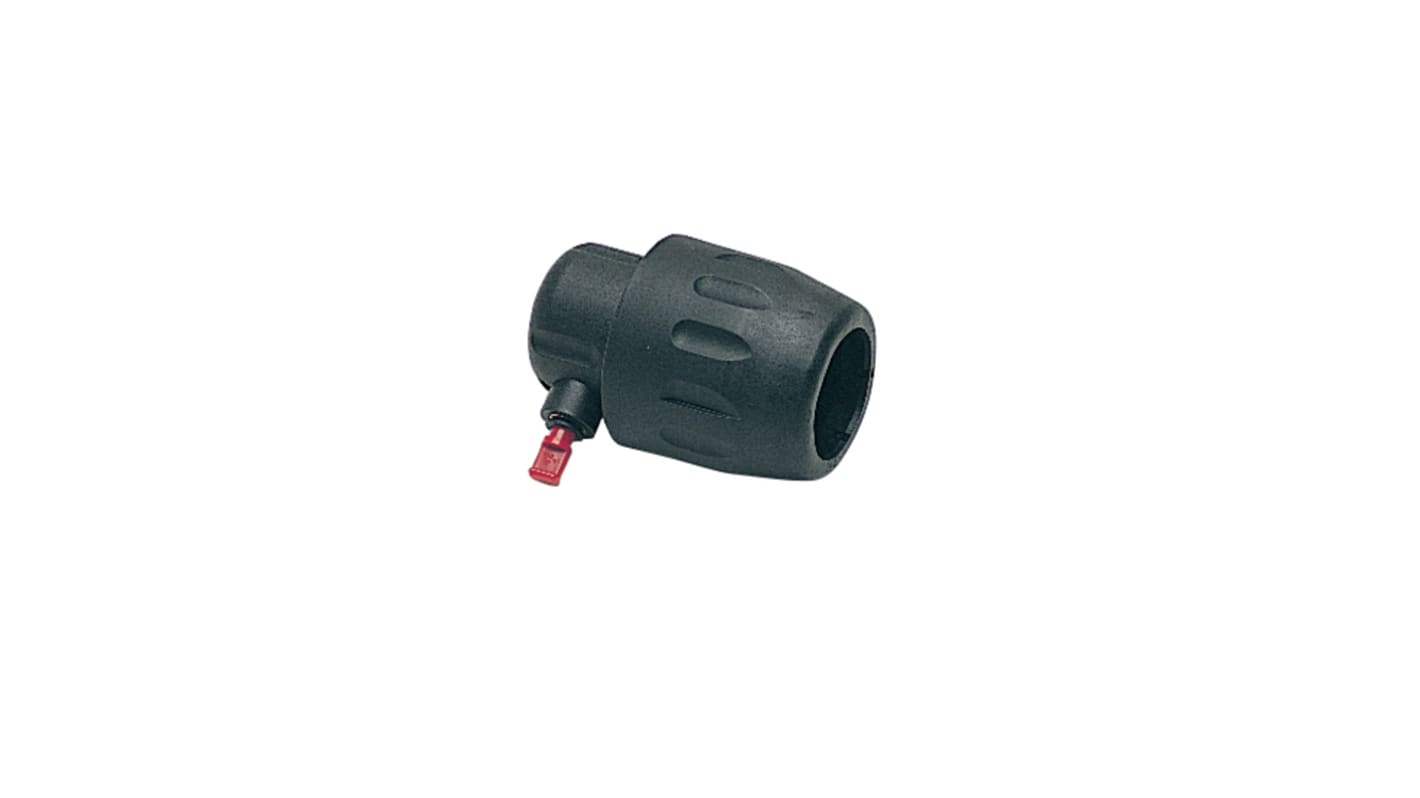

Transair 16 Bar Glass Fibre Reinforced PA Fitting, 45mm outside diameter
- RS 제품 번호:
- 214-3178
- 제조사 부품 번호:
- 6625 25 00
- 제조업체:
- Transair
1 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩47,522.72
수량 | 한팩당 |
|---|---|
| 1 + | ₩47,522.72 |
- RS 제품 번호:
- 214-3178
- 제조사 부품 번호:
- 6625 25 00
- 제조업체:
- Transair
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
The Parker Transair 6625 series vented end cap of pipe connector has an outer diameter of 25mm. This features a pressure rating of 232 psi and is made of a plastic material. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems.
Interchangeable and reusable
Full bore design
Non-flammable materials
Full bore design
Non-flammable materials
This fitting is only compatible with the aluminium pipes of the same brand.
사양
속성 | 값 |
|---|---|
| Pipe Outside Diameter 2 | 45mm |
| Material | Glass Fibre Reinforced PA |
| Maximum Operating Pressure | 16 Bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
