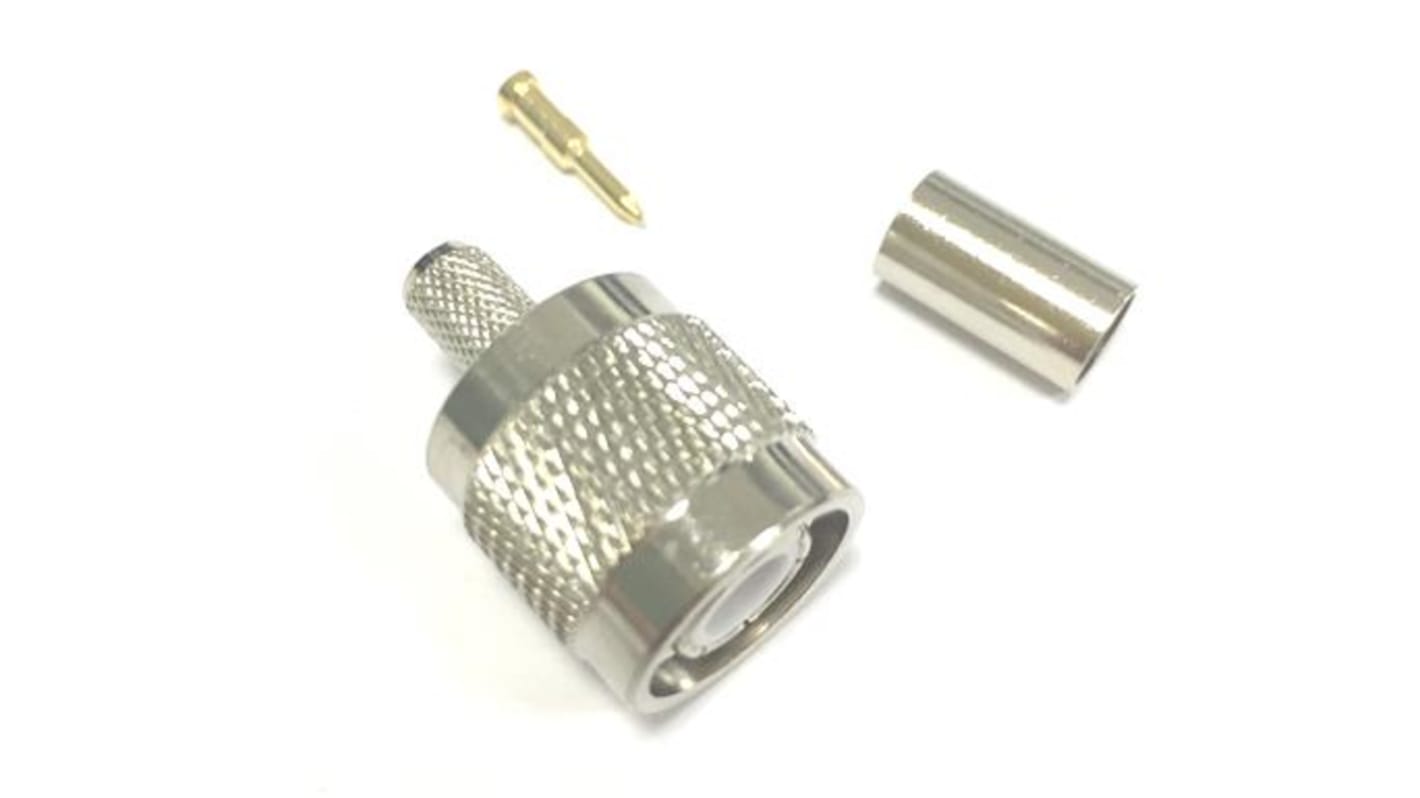

RS PRO, Plug Cable Mount TNC Connector, 50Ω, Straight Body

The RS PRO coaxial connectors keep on improving, here we are proud to introduce this TNC coaxial connector designed for use with RG58 cables. This straight cable mount connector plug includes a nickel-plated brass body, gold plated centre contact and rubber gasket that is terminated by pressure welding and boasts an impressive operating temperature range from -40° C to +65° C which makes this converter plug especially suitable for harsh conditions.

TNC cable mount connectors provides a secure and reliable connection, especially when comparing to BNC Connectors. TNC has a well-established position since the 1950s, and fully dedicated to providing smooth co-operation with coaxial cable formats.

• TNC coaxial connector
• Body Orientation: Straight
• Gender: Male Coaxial
• Nickel-plated body
• Brass contacts
• Heavy-duty structural quality
• Termination: Pressure welding
• Impedance: 50Ω
• Excellent RF communication up to 11 GHz

• Antennas
• Wireless
• Broadband
• Military
• Industrial

What is the two primary TNC Connector assembly method?

The two main methods of assemblies are;

1. Compression gland type does not require any special tools to assemble, making an ideal production cable line used in laboratories with the intention of small production.

2. Crimp type, on the other hand, requires greater accuracy and correct crimping tools to make sure that the Connector is appropriately crimped. This method is ideal for mass production runs as this method is faster and more cost-effective.

Both TNC assembles methods should have the same amount of insulation stripped from each other as this will ensure accurate, safe, and effective assembly.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

CE, ROHS
