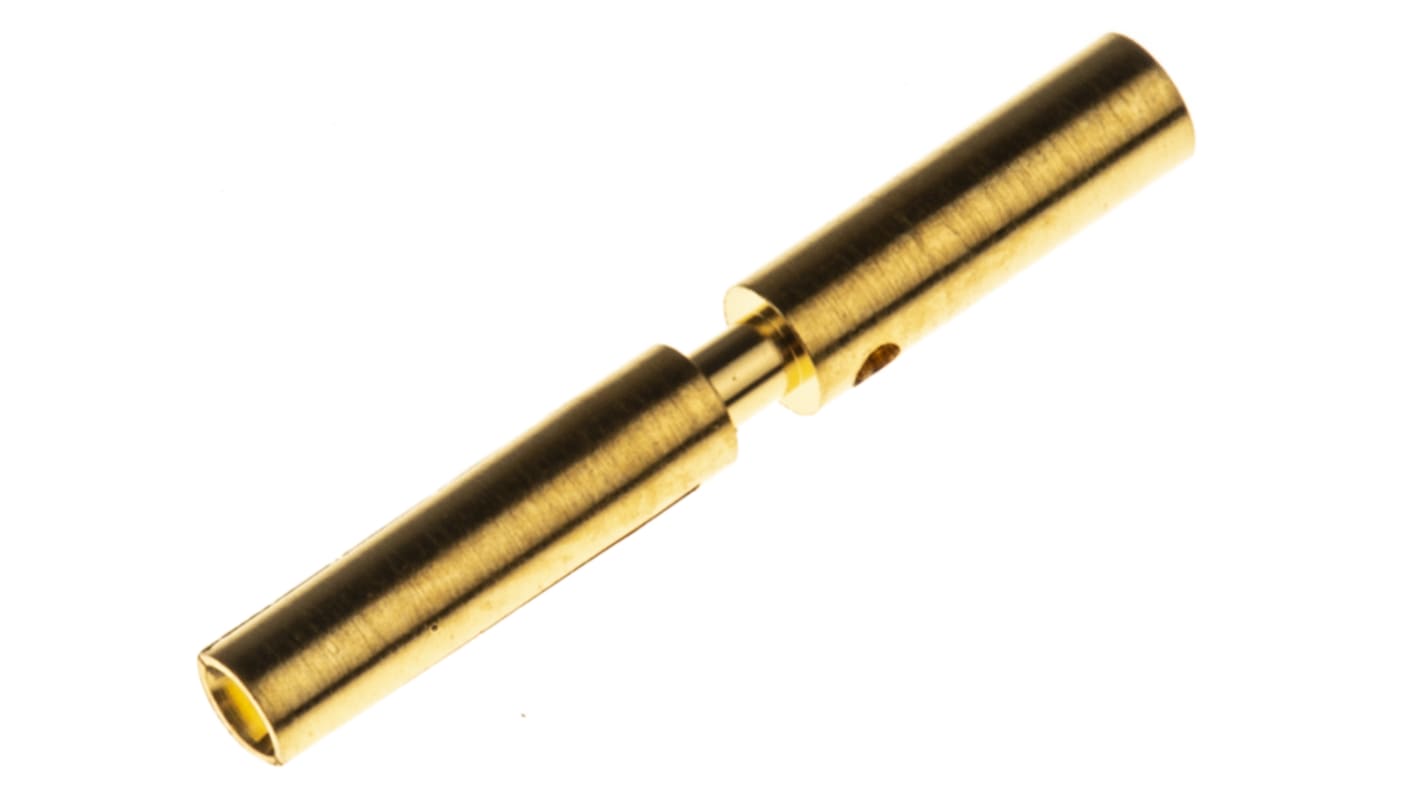

Phoenix Contact Female Crimp Circular Connector Contact, Contact Size 0.8mm, Wire Size 0.34 → 0.5 mm²
- RS 제품 번호:
- 907-5836
- 제조사 부품 번호:
- 1621573
- 제조업체:
- Phoenix Contact
30 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5개가 1팩안에)
₩5,524.855
| 수량 | 한팩당 | 한팩당* |
| 5 - 20 | ₩5,524.855 | ₩27,620.824 |
| 25 - 245 | ₩5,302.343 | ₩26,515.163 |
| 250 + | ₩5,081.555 | ₩25,411.227 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 907-5836
- 제조사 부품 번호:
- 1621573
- 제조업체:
- Phoenix Contact
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Phoenix Contact M23 Crimp Contacts
The SF range of circular connector contacts from Phoenix contact are designed to be used with the M23 circular connectors. The connector contact is the component within a connector that carries the electrical signal across a connection.
Features and Benefits
• Male and Female available
• Crimp range of 0.8mm to 2mm
• Low contact resistance
• High tensile strength of connection
• Crimp termination method
• Temperature and vibration resistant assembly
• Crimp range of 0.8mm to 2mm
• Low contact resistance
• High tensile strength of connection
• Crimp termination method
• Temperature and vibration resistant assembly
사양
속성 | 값 |
|---|---|
| Gender | Female |
| Contact Size | 0.8mm |
| Wire Size | 0.34 → 0.5 mm² |
| Termination Method | Crimp |
| Series | SF-08KS020 |
| For Use With | Circular Connector |
| Length | 11.65mm |
| Mounting Type | Panel Mount |
| Series Number | 08KS020 |
