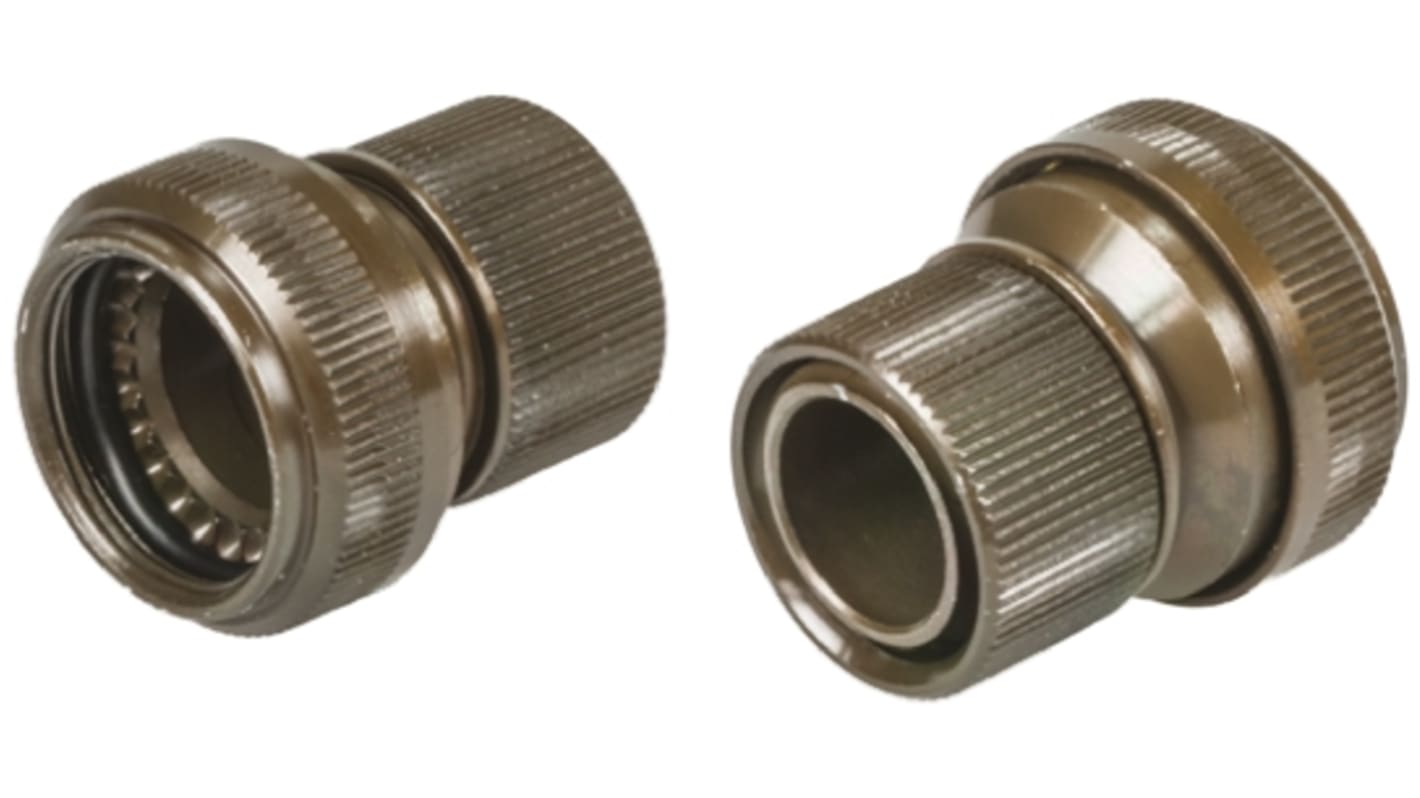

    AB Connectors, ABACSize 11 Straight Backshell, For Use With MIL-DTL-38999 Connector Series III

    RS 제품 번호:
    760-0515
    제조사 부품 번호:
    ABAC1005W11
    제조업체:
    AB Connectors
    AB Connectors

    본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

    본 제품군 열람하기
    일시 품절-문의: krenquiry@rs-components.com
    Add to Basket
    수량

    본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.

    죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.

    추가완료!

    단가 Each

    ₩86,908.50

    수량한팩당
    1 - 4₩86,908.50
    5 - 24₩84,301.40
    25 - 49₩81,694.30
    50 - 99₩79,955.20
    100 +₩78,217.65

    대체품

    이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

    RS 제품 번호:
    760-0515
    제조사 부품 번호:
    ABAC1005W11
    제조업체:
    AB Connectors

    비준수

    COO (Country of Origin):
    GB

    제정법과 컴플라이언스

    비준수

    COO (Country of Origin):
    GB

    제품 세부 사항

    ABAC MIL-DTL-38999 Series III Screen Trap Backshells


    AB Connectors MIL-DTL-38999 series III screen trap backshells are designed with simplicity of assembly in mind, the unique method of securing the shielding or braid is achieved by securing it between a male and female thread at the cable entry point of the backshell which provides the bonding joint, no special additional tools are required (capable of terminating single, double or optimised screening), this in turn can be rubber booted for additional protection. These Mil-DTL-38999 backshells are available in small or larger cable entry types and feature mechanical strain relief and environmental sealing with a grounded backshell, manufactured from aluminium and cadmium plated. These backshells are ideally suited for use in defence and aerospace applications such as surveillance systems, thermal imaging, fixed wing, landing and missile systems etc. when used in conjunction with the appropriate AB Connectors MIL-DTL-38999 Series III circular connector.



    AB Connectors ABAC MIL-DTL-38999 Series III


    These ABAC MIL-DTL-38999 Series III connectors were developed to meet the stringent requirements of the Military, Industrial and Aerospace Industries. The Robust design of these versatile 38999 connectors is ideal for use where shock and EMI/RFI protection is required, also these MIL-DTL-38999 connectors have a quick mate threaded coupling system combined with a high performance anti-vibration mechanism. A unique feature of these connectors is a stub acme style thread on the coupling nut and receptacles to avoid the possibility of cross threading which also ease of blind mating. The EMI-RFI performance of these 38999 series III connectors is enhanced further by the built in grounding spring mechanism.


    사양

    속성
    For Use WithMIL-DTL-38999 Connector Series III
    Shell Size11
    Body OrientationStraight
    Housing MaterialAluminium
    IP RatingIP67
    Length28.58mm
    SeriesABAC
