Polamco, 91Size 18 Straight Circular Connector Backshell, For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603
- RS 제품 번호:
- 241-1345
- 제조사 부품 번호:
- 91D1-18-12-1-ZB
- 제조업체:
- Polamco
일시 품절-다음 입고 날짜는 10/03/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩234,074.105
| 수량 | 한팩당 |
| 1 - 4 | ₩234,074.105 |
| 5 - 24 | ₩227,052.037 |
| 25 - 49 | ₩220,242.132 |
| 50 - 99 | ₩213,635.765 |
| 100 + | ₩207,226.036 |
- RS 제품 번호:
- 241-1345
- 제조사 부품 번호:
- 91D1-18-12-1-ZB
- 제조업체:
- Polamco
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

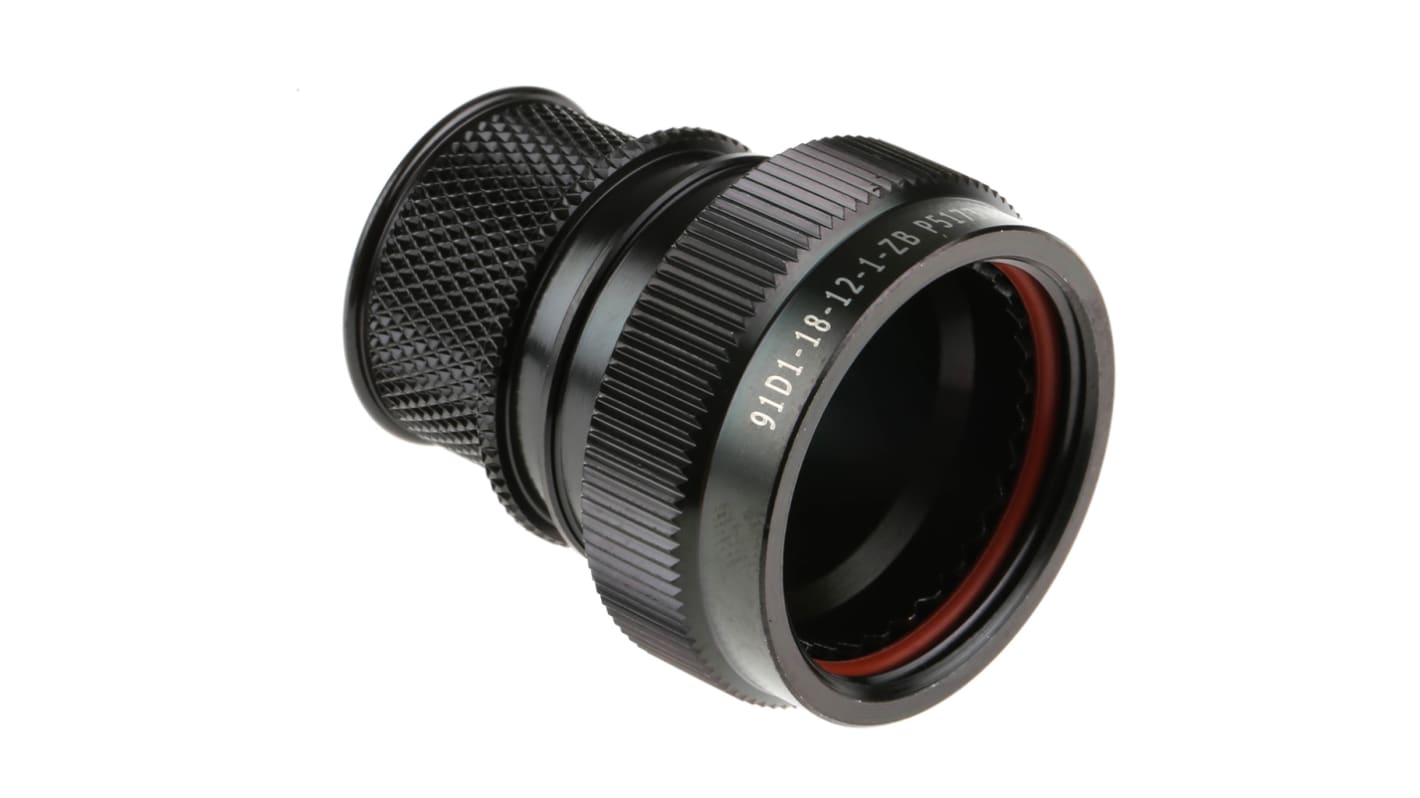

91 Series Spin Coupling Backshells, Polamco
Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.
Note
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors,Series 2 fits the commercial threaded (MIL-C-5015) connectors,Series 3 fits the industrial bayonet (MIL-C-5015) connectors,Series 4 fits professional threaded (MILD38999) connectors
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| For Use With | MIL-DTL-26482 Series I, PATT 105, PATT 603 |
| Shell Size | 18 |
| Body Orientation | Straight |
| Housing Material | Aluminium Alloy |
| Spring Clip Size | 3 |
| Thread Size | UNEF 1-1/16-18 |
| Length | 34mm |
| Series | 91 |
