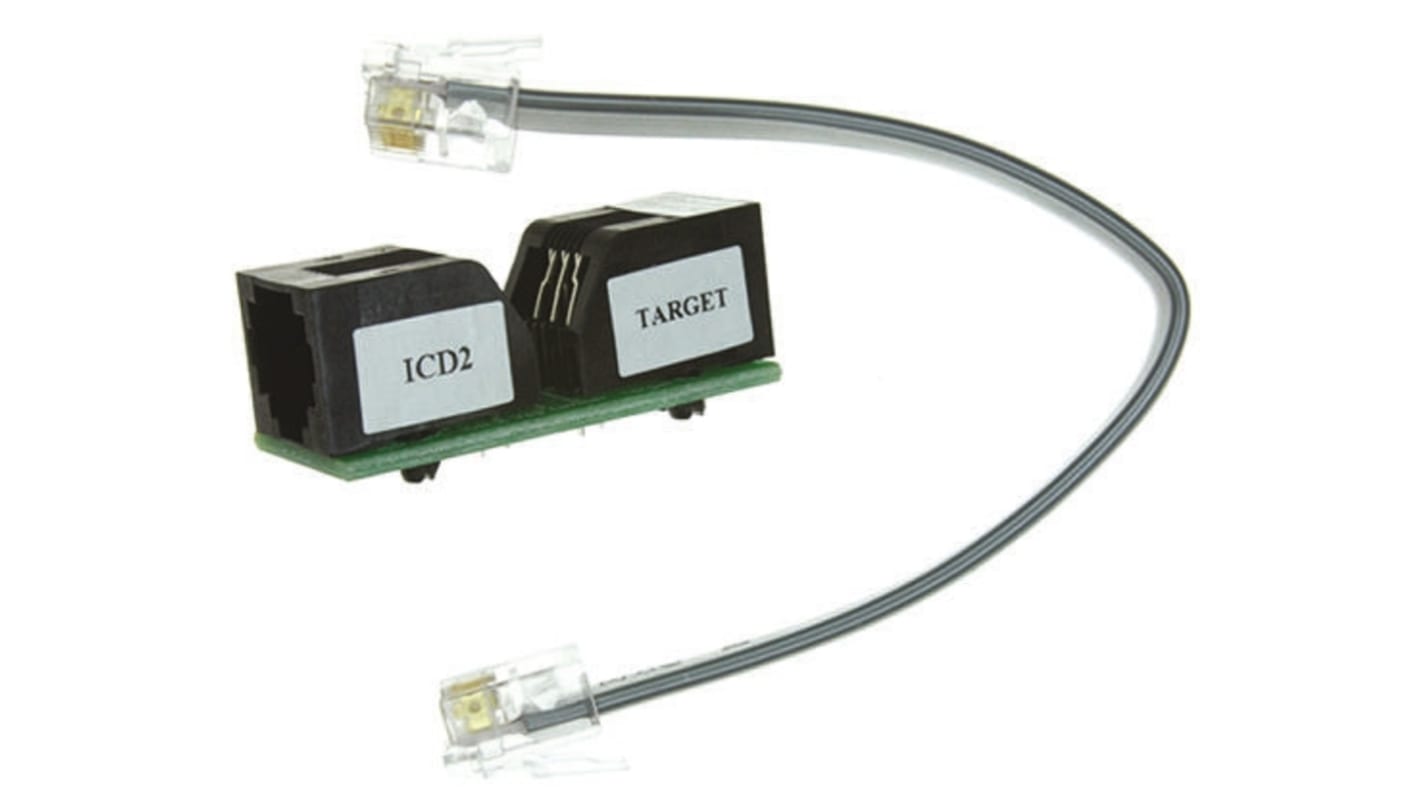

Microchip AC164112, Chip Programming Adapter MPLAB ICD 2 for Vpp Voltage Limiter

In-Circuit Debugger (ICD 2) allows the debugging of a range of PIC microcontrollers through the MPLAB® Integrated Development Environment (IDE). The ICD 2 module connects between the PC and the user's target board allowing direct in-circuit debugging of the target microcontroller in real time. A range of header interfaces is available to allow users to connect the ICD 2 to their target board IC socket where a suitable ICD modular connection is not available.

USB (full speed 2Mbits/sec) and RS-232 interface to host PC
Real-time background debugging
Firmware upgradable from the PC
Supports low voltage target systems (+2.0 to +6.0V)
Diagnostic LEDs (Power, Busy, Error)
Reading/Writing memory space and stack of target microcontroller
Freeze on halt

USB (full speed 2MB/second), RS-232 interface for host PC
Real-time background debugger
Firmware can be upgraded from PC
Supports low voltage target system (+2.0 to +6.0V)
Diagnostic LED(power, busy, error)
Read/write target microcontroller's memory space and stack
Freezes when paused

The ICD 2 uses MPLAB IDE (Integrated Development Environment) graphical user interface enabling various PIC microcontroller debuggers. It can be connected to PCs and user target boards with MPLAB ICD 2 modules and can directly connect with the target microcontroller in-circuit debugger in real time. A header interface is provided so by using this, the MPLAB ICD 2 can be connected to the target board IC socket when the suitable ICD module connection cannot be used.

Kit only: ICD interface cable, USB cable, RS-232 cable, PSU and PICDEM™ 2 Plus Demonstration Board - DV163022
