- RS 제품 번호:
- 914-8518
- 제조사 부품 번호:
- SRD-N16A-8121-1-4-0B1
- 제조업체:
- Simex
일시 품절-다음 입고 날짜는 14/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩1,822,080.866
수량 | 한팩당 |
1 + | ₩1,822,080.866 |
- RS 제품 번호:
- 914-8518
- 제조사 부품 번호:
- SRD-N16A-8121-1-4-0B1
- 제조업체:
- Simex
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PL
제품 세부 사항

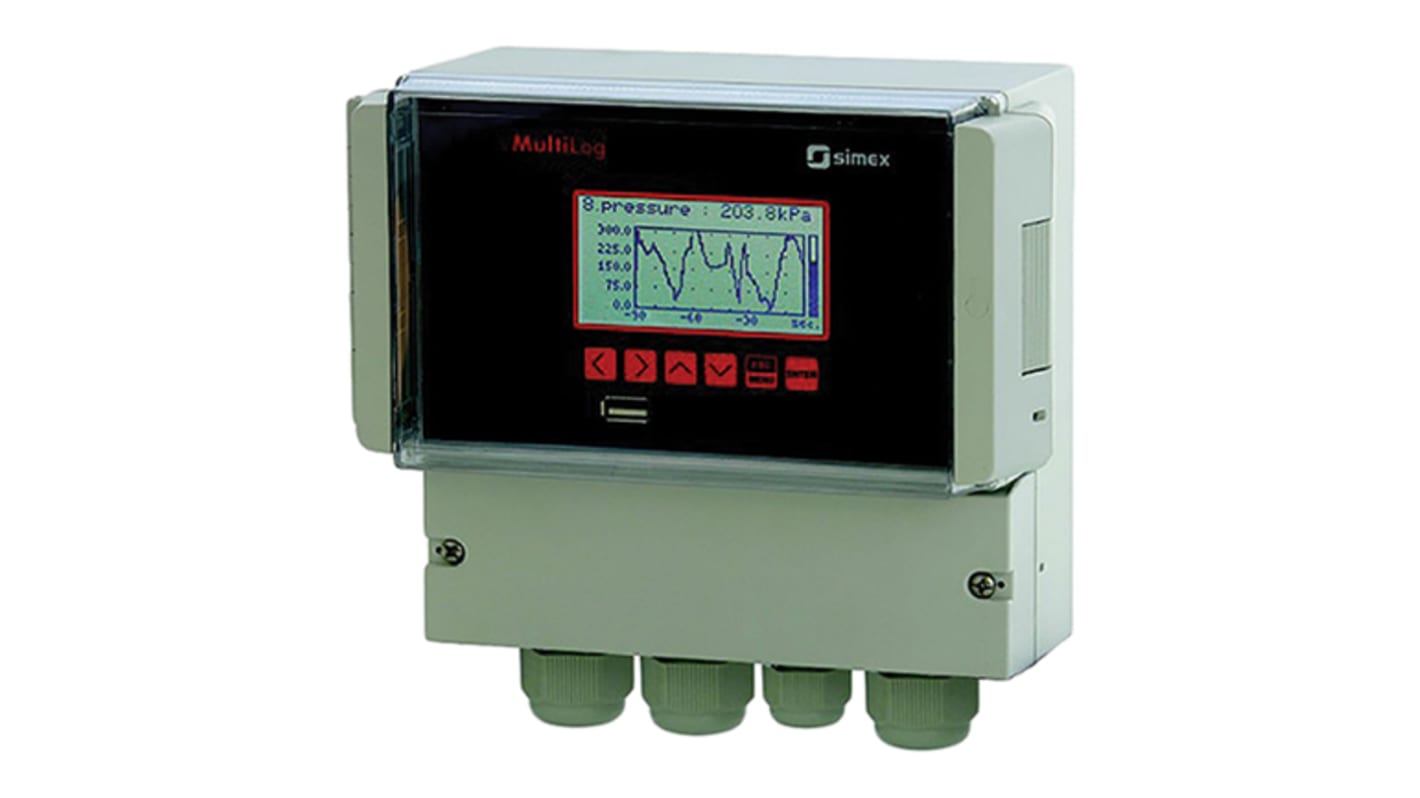

SRD-N16A MultiLog Chart Recorder
The MultiLog SRD-N16 is a chart recorder designed to record and display current values and present technological parameters in the form of charts. The recorder is equipped with 8 current inputs.
Configuration of the chart recorder is extremely easy due to the multi-language menu assisted with full text descriptions. Individual alphanumeric description text of each of the recorded channels is also available.
Configuration of the chart recorder is extremely easy due to the multi-language menu assisted with full text descriptions. Individual alphanumeric description text of each of the recorded channels is also available.
128 x 64 points graphic, LCD display (colour: amber)
Wall mounting
8 Current inputs
2 Relay outputs
USB host port for flash data storage
8 MB internal memory capacity
RS485/Modbus RTU communication port
Free configuration and recording software
IP65 protected casing
Wall mounting
8 Current inputs
2 Relay outputs
USB host port for flash data storage
8 MB internal memory capacity
RS485/Modbus RTU communication port
Free configuration and recording software
IP65 protected casing
Simex
사양
속성 | 값 |
---|---|
Chart Type | Graphical |
Number of Inputs | 8 |
Parameter Measured | Current |
Maximum Temperature Measurement | +1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1768 (R) °C, +1768 (S) °C, +1820 (B) °C, +400 (T) °C |
Maximum Current Measurement | 20mA |
Number of Outputs | 2 |
Maximum Operating Voltage | 260V ac/dc |
Recorder Input Type | RTD, Thermocouple |
Maximum Voltage Measurement | 10V |
Model Number p | SRD N16A |
IP Rating | IP65 |
Temperature Measurement Resolution | 0.1°C |
Minimum Operating Voltage | 85V ac/dc |
Voltage Measurement Resolution | 1mV |
Length | 166mm |
Width | 161mm |
Power Source | Mains |
Height | 103mm |
