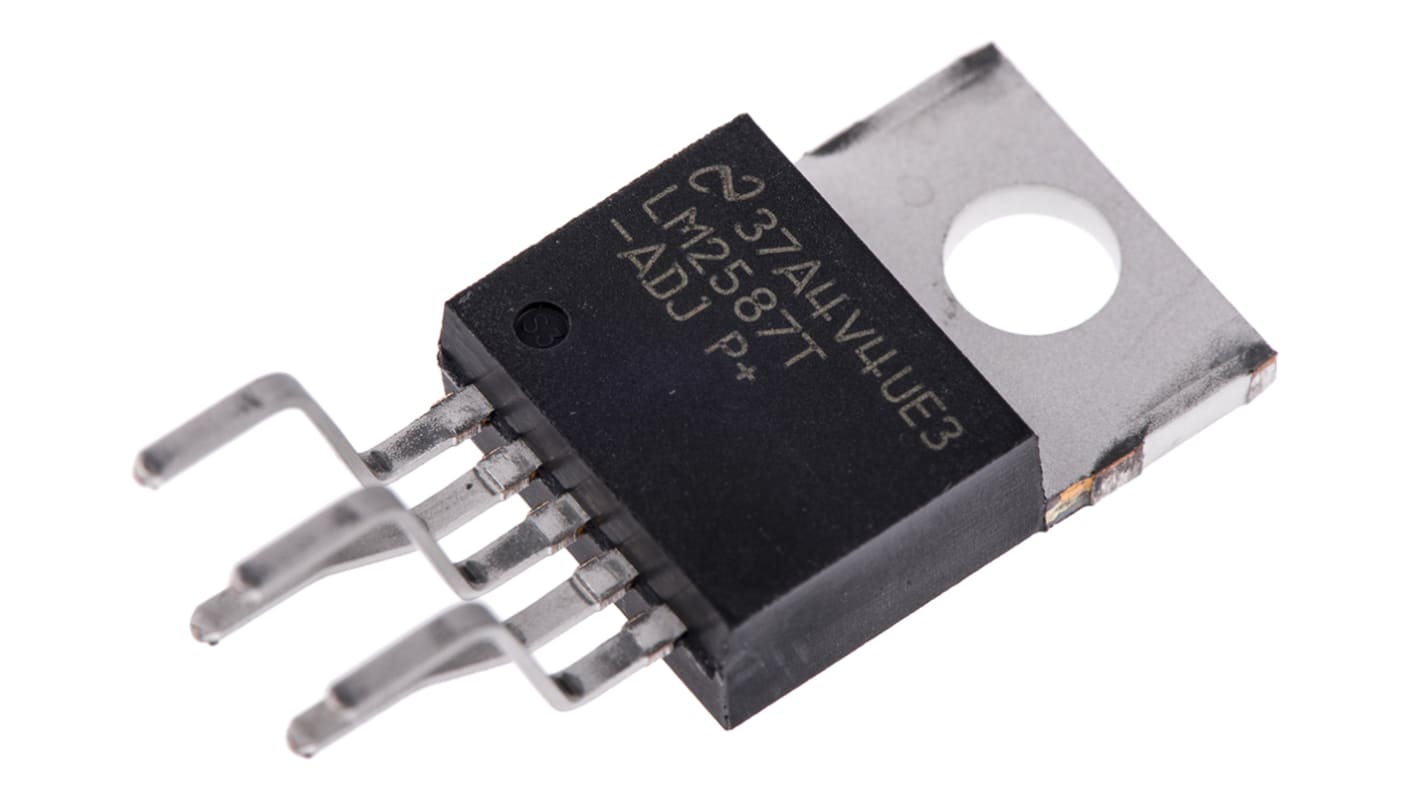

Texas Instruments Boost Converter, Through Hole, 12.6 V Output Voltage, 5 A Output Current, 5 Outputs

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Switching Regulators 열람하기

Subtotal (1 unit)*

₩18,668.40

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
1 +₩18,668.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
533-3399
제조사 부품 번호:
LM2587T-ADJ/NOPB
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Output Voltage 1

12.6 V

Product Type

Boost Converter

Output Current

5A

Mount Type

Through Hole

Number of Outputs

5

Efficiency

90%

Minimum Operating Temperature

125°C

Maximum Operating Temperature

-40°C

Series

LM2587

Number of Pins

5

Output Voltage 2

5.25V

Line Regulation

100 mV

Package Type

TO-220

Width

4.57 mm

Depth

4.57mm

Length

10.16mm

Standards/Approvals

JEDEC, RoHS

Maximum Input Voltage

40V

Minimum Input Voltage

4V

Load Regulation

100 mV

LM258x Boost/Flyback/Sepic SIMPLE SWITCHER® Regulator Series


The LM258x series of SIMPLE SWITCHER® regulators are designed for flyback, step-up (boost), SEPIC, and forward converter applications.

Requires few external components

Output voltage versions: 5V, 12V, and adjustable

Family of standard inductors and transformers

Wide input voltage range: 4V to 40V

Current-mode operation for improved transient response, line regulation, and current limit

Internal soft-start function reduces in-rush current during start-up

Output transistor protected by current limit, under voltage lockout, and thermal shutdown

System Output Voltage Tolerance of ±4% max over line and load conditions

LM2586/LM2588 with external shutdown capability

SIMPLE SWITCHER® Regulators, Texas Instruments


Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
