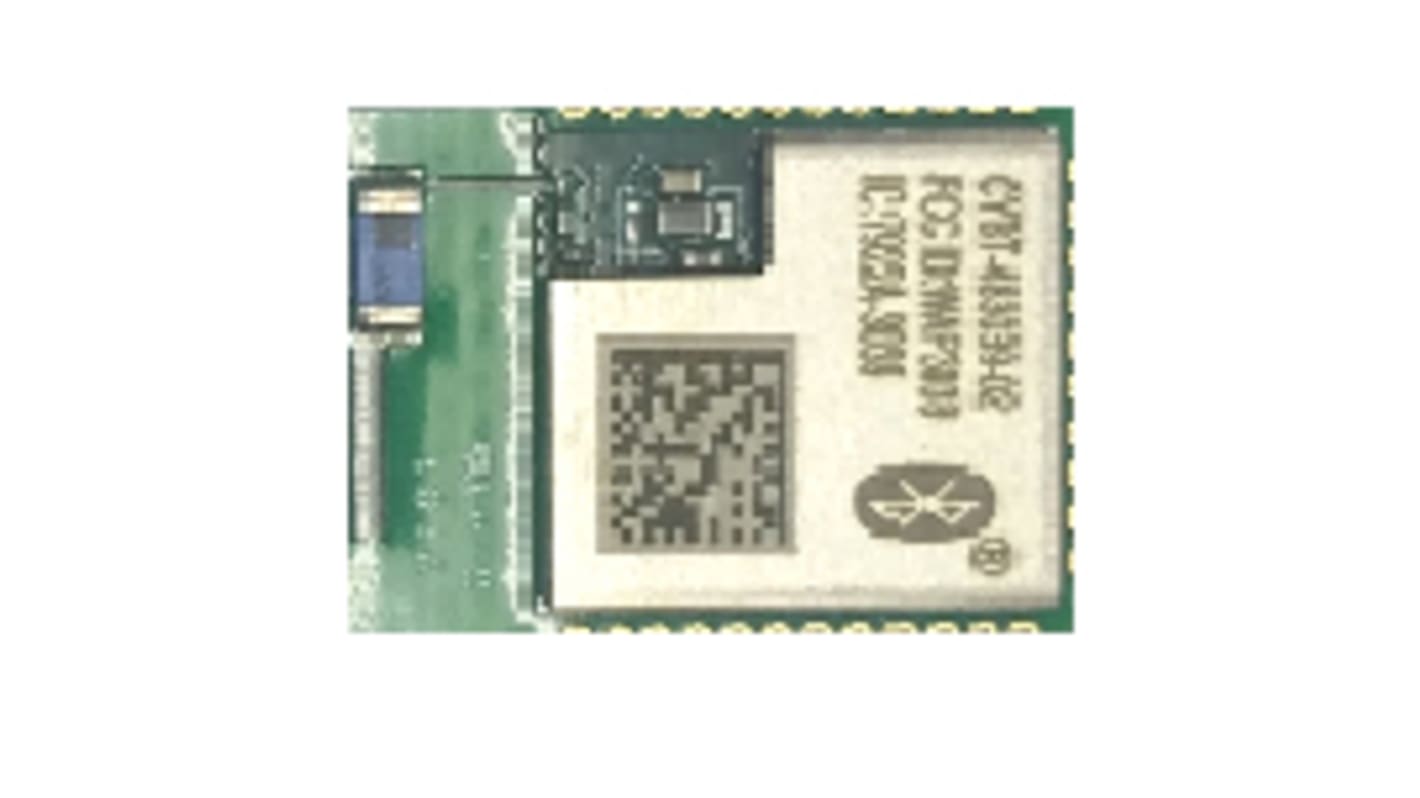

Cypress Semiconductor CYBT-483039-02 Bluetooth Module 5.0
- RS 제품 번호 188-5298
- 제조사 부품 번호 CYBT-483039-02
- 제조업체 Cypress Semiconductor
The CYBT-483039-02 is a dual-mode Bluetooth BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-483039-02 includes onboard crystal oscillators, passive components, PA/LNA, and the Cypress CYW20719 silicon device. The CYBT-483039-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols (UART, SPI, I2C, I2S/PCM). The CYBT-483039-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a 12.75 ´ 18.59 ´ 1.80 mm module form-factor. The CYBT-483039-02 includes an integrated chip antenna, on-board external power/low noise amplifier.
Module size: 12.75 mm ´ 18.59 mm ´ 1.80 mm
Up to one kilometer bidirectional line-of-sight communication (FCC/ISED)
Up to 15 GPIOs
1024-KB flash memory, 512-KB SRAM memory
Industrial temperature range: -30 °C to +85 °C
Integrated ARM Cortex-M4 microprocessor core with floating point unit (FPU)
| 속성 | 값 |
|---|---|
| Bluetooth Class | Class 1 |
| Bluetooth Version | 5.0 |
| Maximum Output Power | 20dBm |
| Receiver Sensitivity | -95dBm |
| Supported I/O Interfaces | I2C, SPI, UART |
| Dimensions | 18.59 x 12.75 x 1.8mm |
| Height | 1.8mm |
| Length | 18.59mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -30 °C |
| Width | 12.75mm |
