The BM64 stereo audio module is a Bluetooth module for designers who want to add Bluetooth wireless audio and voice applications to their products. This module provides a complete wireless solution with Bluetooth stack, integrated antenna, and worldwide radio certifications in a compact surface mount package. This stereo module has integrated Li-Ion charger and contains a digital audio interface. It supports HSP, HFP, SPP, A2DP, and AVRCP profiles.

On-board Bluetooth Stack
Transparent UART mode for seamless serial data over UART interface
Easy to configure with User Interface (UI) tool, a Windows® configuration utility or directly by MCU
USB firmware upgrade supported
Supports both digital audio I2S format and analog audio output
Compact surface mount module: 32 x 15 x 2.5 mm3
Castellated surface mount pads for easy and reliable host PCB mounting
Ideal for portable battery-operated devices

모두 선택	제품 정보	값
	브랜드	Microchip
	Bluetooth Class	Class 1, Class 2
	Bluetooth Version	4.2
	Receiver Sensitivity	-90dBm
	Dimensions	15 x 32 x 0.25mm
	Height	0.25mm
	Length	15mm
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	-20 °C
	Width	32mm

	모두 선택
	브랜드 Microchip
	Bluetooth Class Class 1, Class 2
	Bluetooth Version 4.2
	Receiver Sensitivity -90dBm
	Dimensions 15 x 32 x 0.25mm
	Height 0.25mm
	Length 15mm
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature -20 °C
	Width 32mm

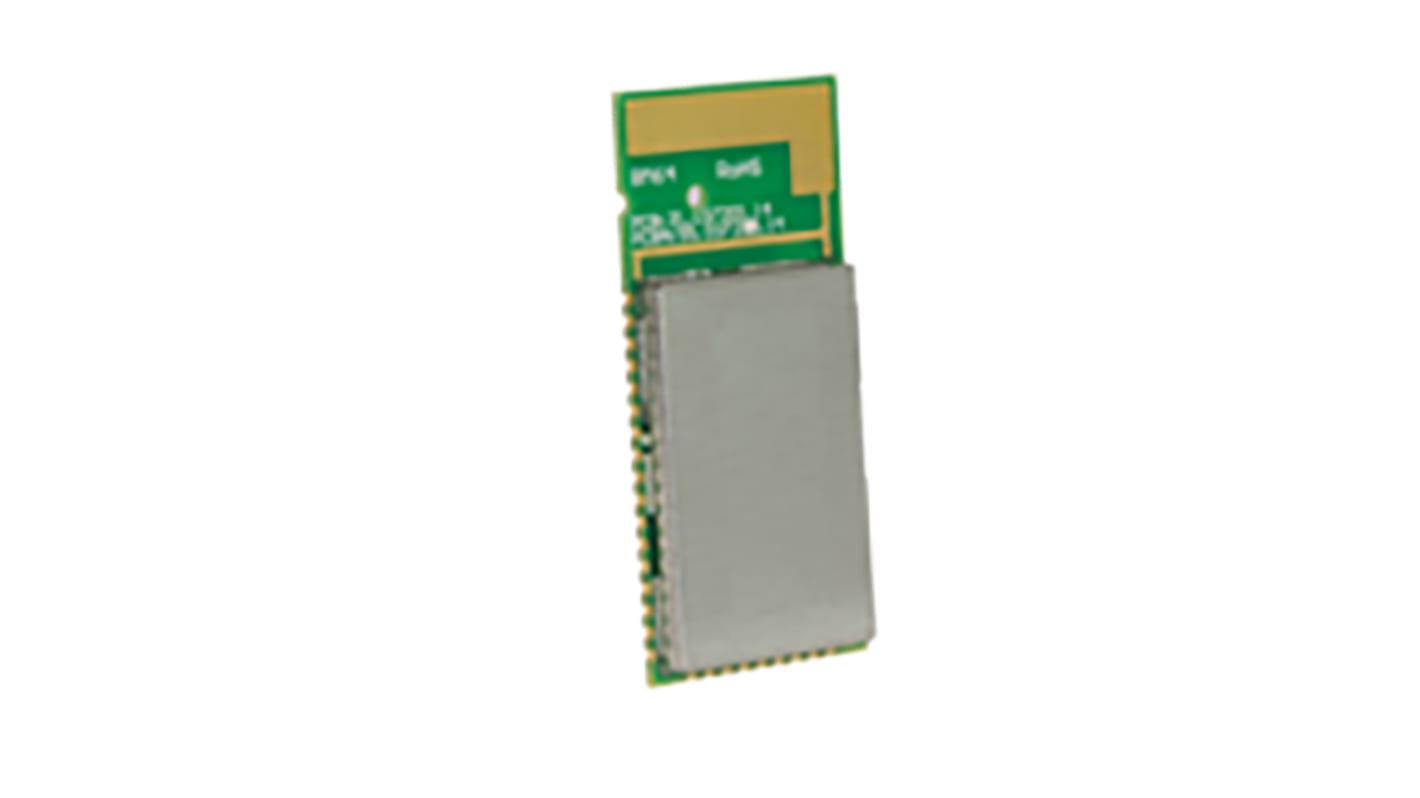

Microchip BM64SPKS1MC2-0001AA Bluetooth Chip 4.2
