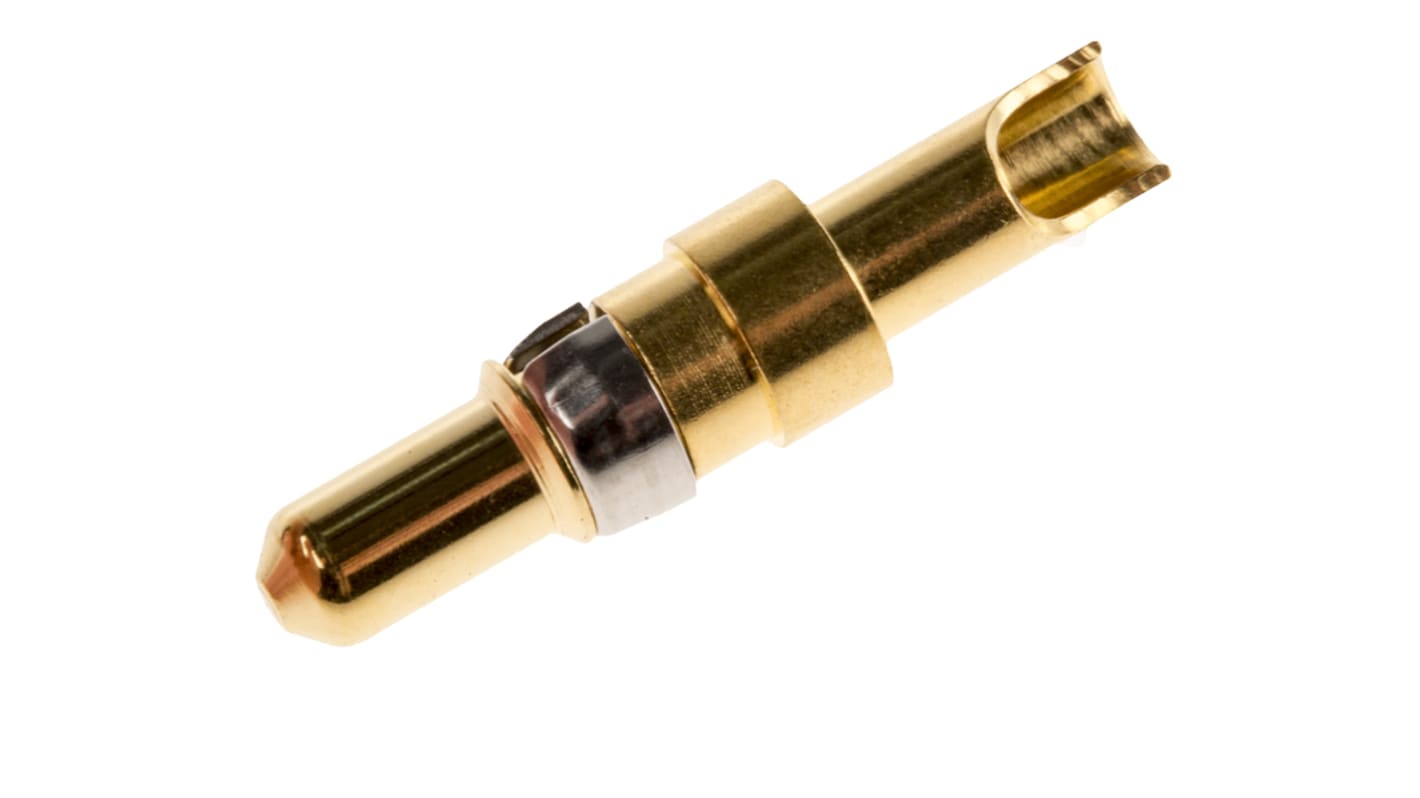

RS PRO DIN 41612, Straight RG178B/U, RG174A/U , Male Gold , Copper Alloy, Backplane Connector Contact
- RS 제품 번호:
- 301-6878
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩5,918.25
재고있음
- 추가로 2026년 5월 04일 부터 403 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 14 | ₩5,918.25 |
| 15 - 49 | ₩5,762.25 |
| 50 - 99 | ₩5,616.00 |
| 100 - 499 | ₩5,491.20 |
| 500 + | ₩4,518.15 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 301-6878
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Series | DIN 41612 | |
| Product Type | Backplane Connector Contact | |
| Orientation | Straight | |
| For Use With | DIN41612 Type M Male Connector | |
| Cable Type | RG178B/U, RG174A/U | |
| Current | 20A | |
| Gender | Male | |
| Contact Plating | Gold | |
| Maximum Contact Resistance | 1mΩ | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Series DIN 41612 | ||
Product Type Backplane Connector Contact | ||
Orientation Straight | ||
For Use With DIN41612 Type M Male Connector | ||
Cable Type RG178B/U, RG174A/U | ||
Current 20A | ||
Gender Male | ||
Contact Plating Gold | ||
Maximum Contact Resistance 1mΩ | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
DIN 41612 M Contacts
Power plug and socket contacts in both solder bucket and 90° terminations rated up to 40A
Contact resistance <3mΩ
Gold plated class 1
50Ω coaxial contacts accept RG178B/U & RG174A/U (RG316) cables by crimp and solder terminations
75Ω coaxial contacts accept RG179 cables by crimp or solder terminations
Coaxial contact resist. <10mΩ centre, <3Ω outer
High voltage inserts contact resistance, outer conductor = <3 mΩ
DIN41612 - Mixed Contact Range
DIN 41612 / 41617 and module connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. The different connection variants include:
Connection between plug-in cards at right angle to backplane wiring
Connection between two parallel PCB's arranged one above the other
For front or rear I/O
