- RS 제품 번호:
- 168-3124
- 제조사 부품 번호:
- 749196517
- 제조업체:
- Wurth Elektronik
일시 품절-다음 입고 날짜는 15/10/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(120개가 1릴안에)
₩14,420.164
수량 | 한팩당 | Per Reel* |
120 - 120 | ₩14,420.164 | ₩1,730,357.584 |
240 - 360 | ₩14,059.66 | ₩1,687,097.092 |
480 + | ₩13,842.323 | ₩1,661,140.796 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 168-3124
- 제조사 부품 번호:
- 749196517
- 제조업체:
- Wurth Elektronik
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항

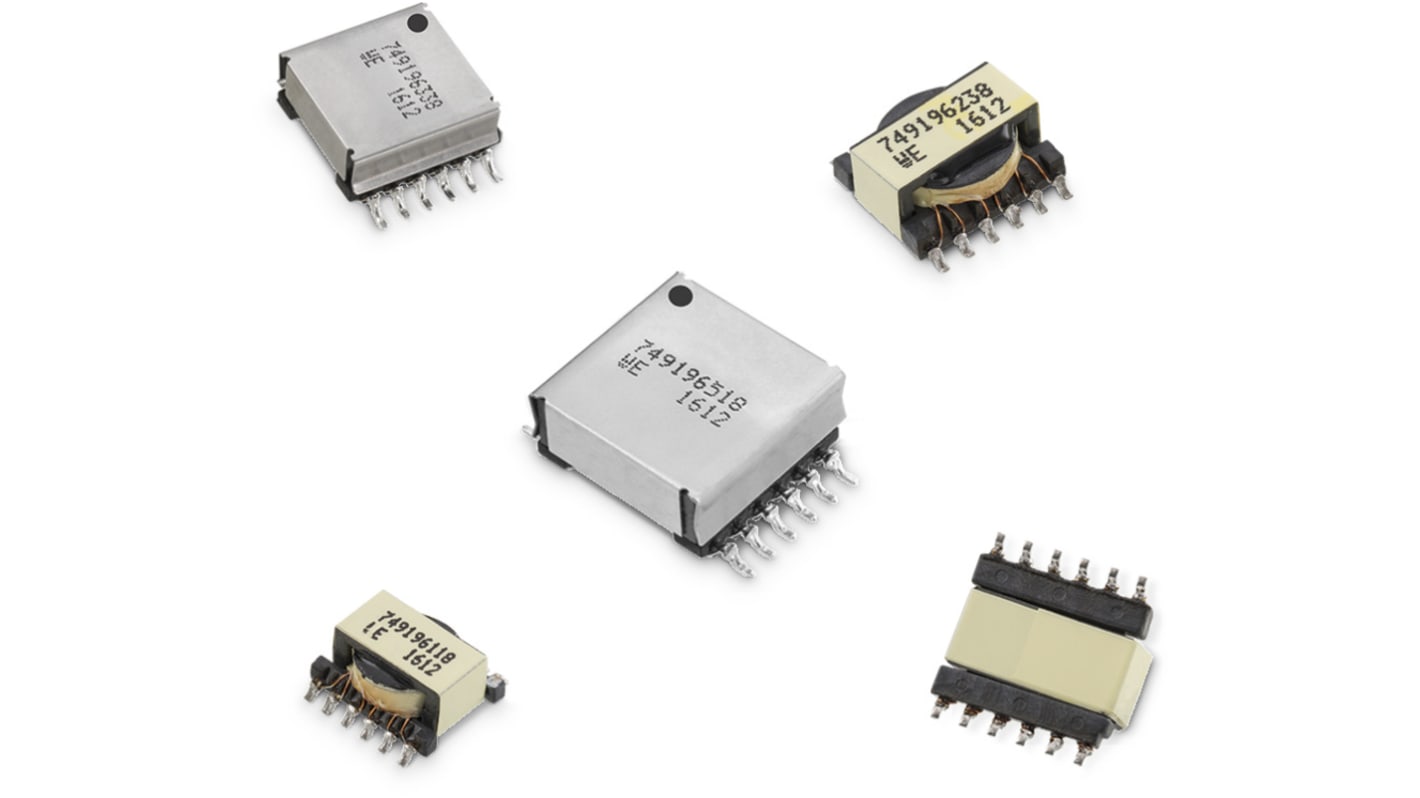

Transformer with 6 identical windings
4 sizes with 5 different lengths of air gap each
Isolation voltage up to 1.5 kVAC
Low leakage inductance
Operating temperature: -40 ºC to +125 ºC
By using different circuits more than 375 transformer solutions and about 125 choke solutions possible. Consequently, quick prototyping possibilities
EFD size parts provide Basic insulation for a working voltage of 250VRMS when they are connected appropriate
Flyback converters
Forward converters
Push-pull converters
Step-up/step-down converters
SEPIC
4 sizes with 5 different lengths of air gap each
Isolation voltage up to 1.5 kVAC
Low leakage inductance
Operating temperature: -40 ºC to +125 ºC
By using different circuits more than 375 transformer solutions and about 125 choke solutions possible. Consequently, quick prototyping possibilities
EFD size parts provide Basic insulation for a working voltage of 250VRMS when they are connected appropriate
Flyback converters
Forward converters
Push-pull converters
Step-up/step-down converters
SEPIC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Primary DC Resistance | 36mΩ |
Current Rating | 2.3A |
Dimensions | 21.5 x 21 x 12mm |
Mounting Type | Surface Mount |
Termination Type | Solder |
Depth | 12mm |
Length | 21.5mm |
Width | 21mm |
Maximum Temperature | +125°C |
Turns Ratio | 1:1:1:1:1:1 |
Construction | Enclosed |
Minimum Temperature | -40°C |
