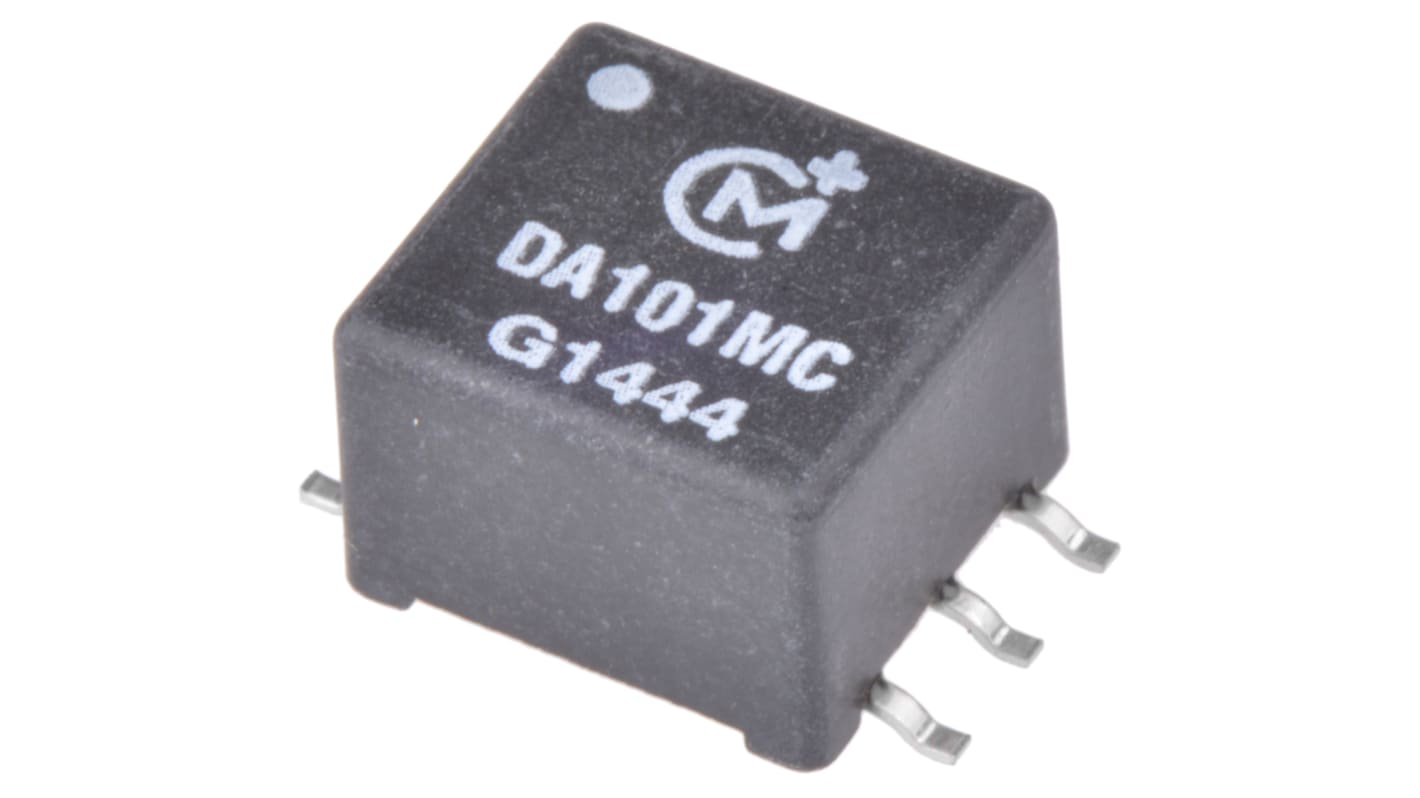

Surface Mount Audio Transformer
- RS 제품 번호:
- 106-8576
- 제조사 부품 번호:
- DA101MC
- 제조업체:
- Murata Power Solutions
단종
- RS 제품 번호:
- 106-8576
- 제조사 부품 번호:
- DA101MC
- 제조업체:
- Murata Power Solutions
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Murata Digital Audio Transformers, DA100 Series
The DA100 Digital Audio Range of transformers is designed to improve the balance of transmitter and receiver circuitry in hi-fi equipment, video games and other applications requiring high-performance digital audio transmission.
Compliant with AES/EBU recommendations for the digital audio interface, offering optimised shunt capacitance between primary and secondary windings.
Capable of operating over the audio data rate frequency range, providing isolation from 50-60Hz noise
Compliant with AES/EBU recommendations for the digital audio interface, offering optimised shunt capacitance between primary and secondary windings.
Capable of operating over the audio data rate frequency range, providing isolation from 50-60Hz noise
사양
속성 | 값 |
|---|---|
| Dimensions | 9.52 x 9 x 6.35mm |
| Mounting Type | Surface Mount |
| Weight | 0.9g |
| Depth | 6.35mm |
| Length | 9.52mm |
| Width | 9mm |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
| Maximum Operating Frequency | 3MHz |
| Minimum Operating Frequency | 100kHz |
