RS PRO 6A 115/250 V ac 50 → 60Hz, DIN Rail Power Line Filter, Terminal Block, Single Phase
- RS Stock No.:
- 286-7296
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
₩84,759.80
재고있음
- 추가로 2025년 12월 15일 부터 5 개 단위 배송
- 추가로 2025년 12월 30일 부터 16 개 단위 배송
- 추가로 2026년 2월 24일 부터 16 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 - 9 | ₩84,759.80 |
| 10 - 24 | ₩78,824.64 |
| 25 - 49 | ₩73,297.44 |
| 50 - 99 | ₩68,178.20 |
| 100 + | ₩63,403.00 |
*price indicative
- RS Stock No.:
- 286-7296
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | RS PRO | |
| Maximum Current Rating | 6A | |
| Maximum Voltage Rating | 115/250 V ac | |
| Mounting Type | DIN Rail | |
| Termination Style | Terminal Block | |
| Number of Phases | 1 | |
| Number of Stages | Two Stage | |
| Operating Frequency | 50 → 60Hz | |
| Length | 73mm | |
| Depth | 56mm | |
| Capacitance | 0.1µF | |
| Height | 44mm | |
| Inductance | 2 x 8.0mH | |
| Dimensions | 73 x 56 x 44mm | |
| Leakage Current | 0.4/0.8mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 1MΩ | |
| Select all | ||
|---|---|---|
브랜드 RS PRO | ||
Maximum Current Rating 6A | ||
Maximum Voltage Rating 115/250 V ac | ||
Mounting Type DIN Rail | ||
Termination Style Terminal Block | ||
Number of Phases 1 | ||
Number of Stages Two Stage | ||
Operating Frequency 50 → 60Hz | ||
Length 73mm | ||
Depth 56mm | ||
Capacitance 0.1µF | ||
Height 44mm | ||
Inductance 2 x 8.0mH | ||
Dimensions 73 x 56 x 44mm | ||
Leakage Current 0.4/0.8mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 1MΩ | ||
- COO (Country of Origin):
- CN

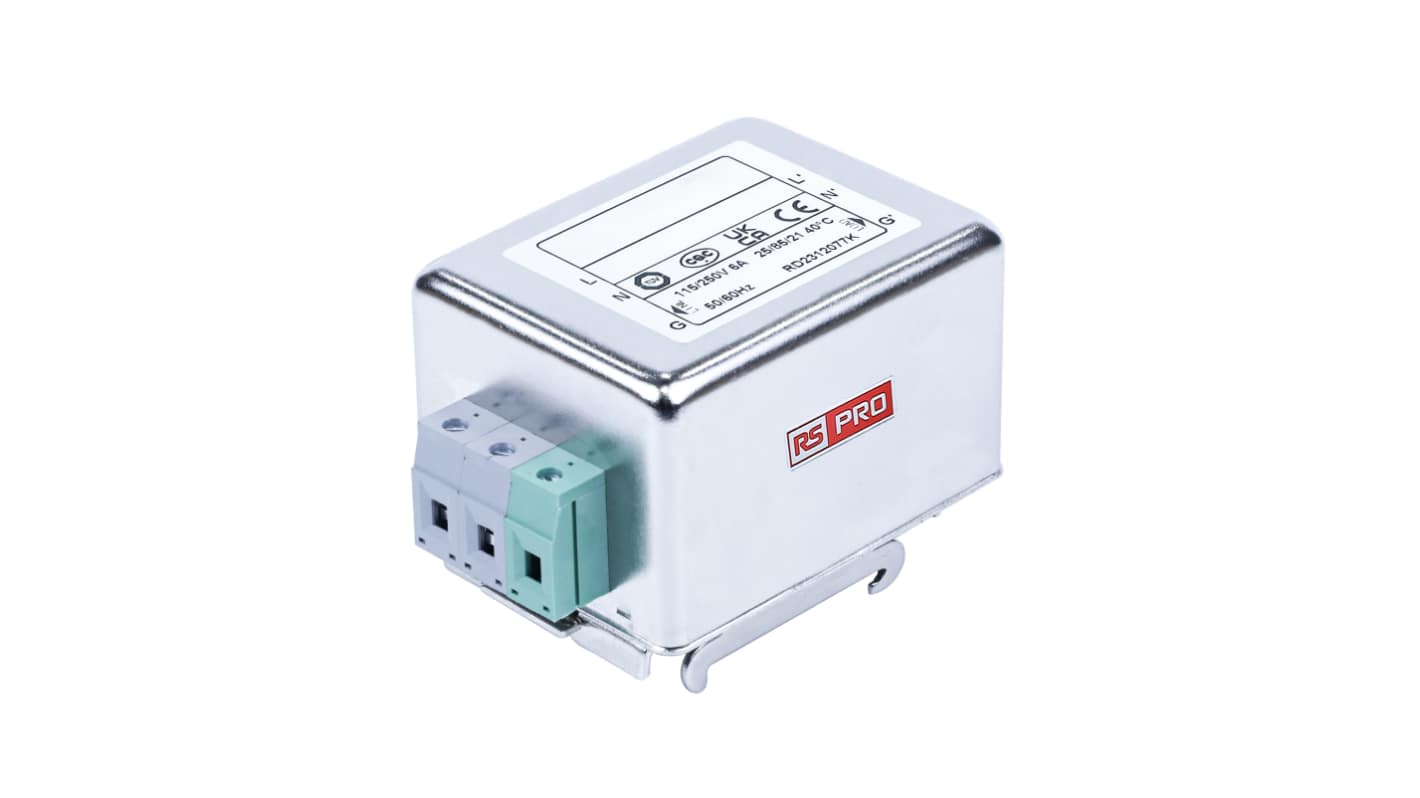

RS PRO 6A Single Phase Two Stage DIN Rail EMI Filter (115/250V)
A general purpose single phase two stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for DIN rail mounting and built to a compact size of 73 x 56 x 44mm the power line filter is ideal for areas with limited space and is easily connected via the terminal block.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter
Current rated to 6A
Resistance of 1MΩ
35mm DIN rail mount
Hipot Rating 2250vdc (line to ground), 500Vdc (line to line)
IP40 rated
Dimensions of 73 x 56 x 44mm
Terminal block connection
Weight of 500g
Standards and Approvals: TUV, CQC, CE, UKCA, EN 60939, GB/T 15287; GB/T 15288-1994.
