Digi International Xbee ZigBee Module, +12dBm, GPIO, SPI, UART, USB Pan, RS232, RS485

RS 제품 번호:: 771-6342
제조사 부품 번호:: XK8-DMS-0
제조업체:: Digi International

Digi International Xbee ZigBee Module, +12dBm, GPIO, SPI, UART, USB Pan, RS232, RS485

모든 WPAN 열람하기

단종

RS 제품 번호:: 771-6342
제조사 부품 번호:: XK8-DMS-0
제조업체:: Digi International

참조 문서

제정법과 컴플라이언스

COO (Country of Origin):: TH

제품 세부 사항

XBee 865/868MHz LP DigiMesh Development Kit

This kit is designed to make it easy to set up an 865/868MHz XBee DigiMesh network, send data from one XBee to another and adjust the XBee settings.

RS Product Codes
771-6342 XK8-DMS-0 Standard module kit
818-7341 XK8-DMSB-0 Programmable module kit

Note

For proper kit configuration and operation, X‐CTU software (vsn 5.15 or later) must be downloaded and installed. Download from: http://www.digi.com/products/xbee-rf-solutions/xctu-software/xctu

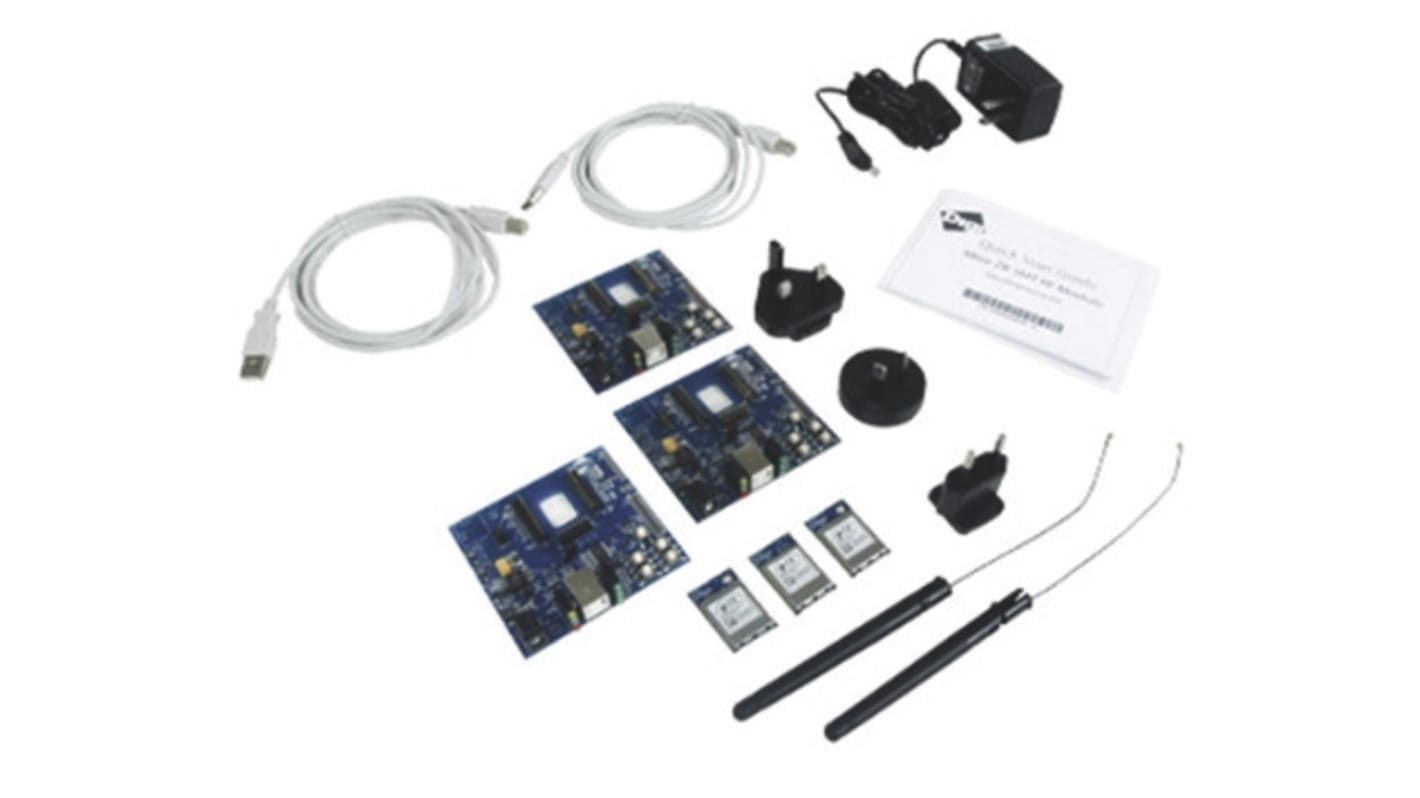

Supplied with

3 x XBee Interface boards, 3 x XBee modules, 3 x Antennas, 2 x USB cables, 2 x Power Supplies

Wireless Modules - Digi International

사양

속성	값
Receiver Sensitivity	-106dBm
Maximum Output Power	+12dBm
Supported Bus Interfaces	GPIO, SPI, UART, USB
Protocol Type	Xbee
Supported Network Interfaces	Pan, RS232, RS485
Supply Voltage	2.7 → 3.6V
Dimensions	1.33 x 22 x 0.08in
Height	2.03mm
Length	22mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Width	33.78mm
