- RS 제품 번호:
- 660-4535
- 제조사 부품 번호:
- VFC110AP
- 제조업체:
- Texas Instruments
- RS 제품 번호:
- 660-4535
- 제조사 부품 번호:
- VFC110AP
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항

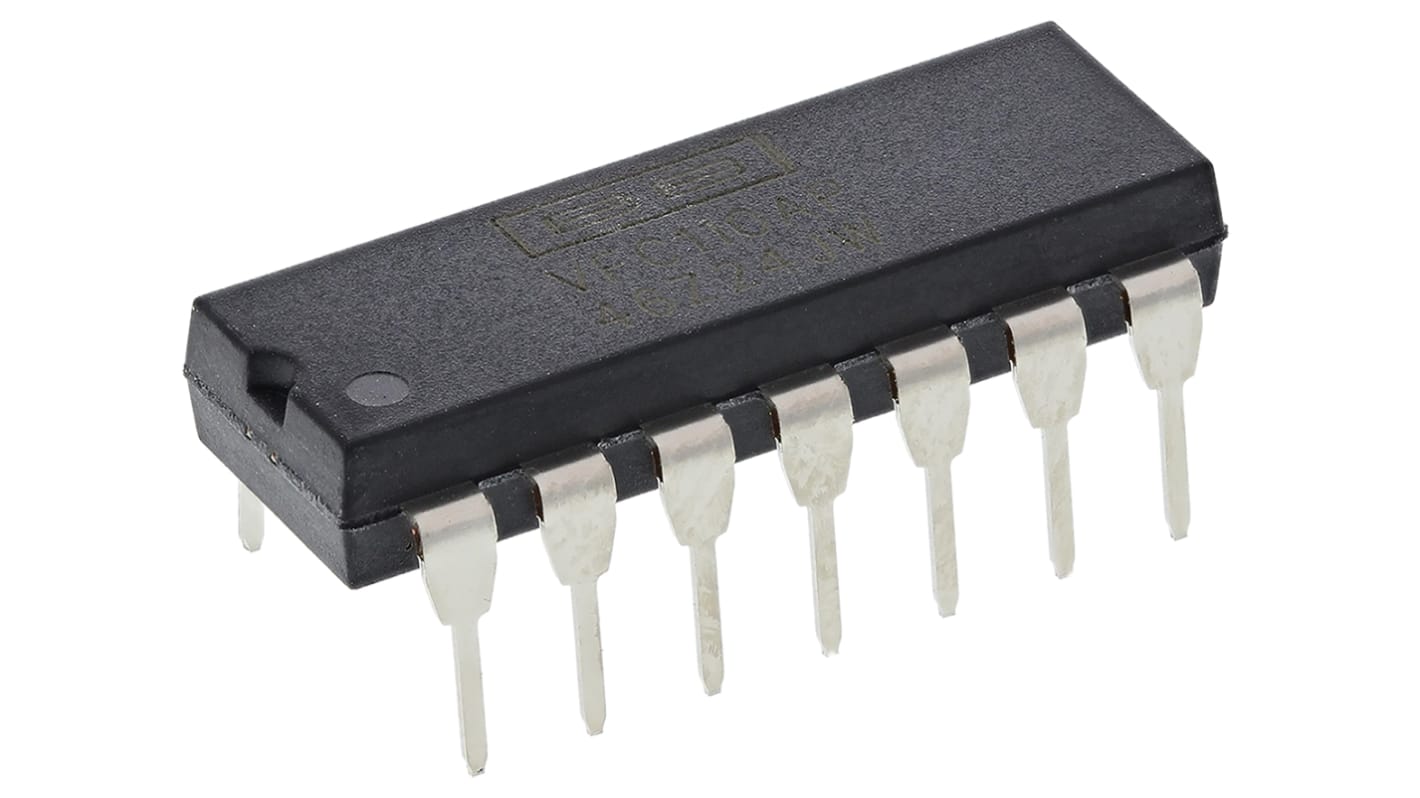

Voltage/Frequency Converters, Texas Instruments
This voltage to frequency converter features excellent linearity and either voltage or current input, providing an option between either voltage-to-frequency or frequency-to-voltage conversion. This device is typically used in applications such as isolated data transmission or motor speed control.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Converter Function | VFC |
Full Scale Frequency | 4000kHz |
Linearity Error | ±1%FSR |
Power Supply Type | Dual |
Typical Dual Supply Voltage | ±15V |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 14 |
Dimensions | 19.3 x 6.35 x 4.57mm |
Height | 4.57mm |
Length | 19.3mm |
Maximum Operating Temperature | +85 °C |
Width | 6.35mm |
Minimum Operating Temperature | -25 °C |
