- RS 제품 번호:
- 117-6056
- 제조업체:
- RS PRO
21 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩103,821.731
수량 | 한팩당 |
1 - 9 | ₩103,821.731 |
10 - 49 | ₩99,116.204 |
50 + | ₩81,572.246 |
- RS 제품 번호:
- 117-6056
- 제조업체:
- RS PRO
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PL
제품 세부 사항

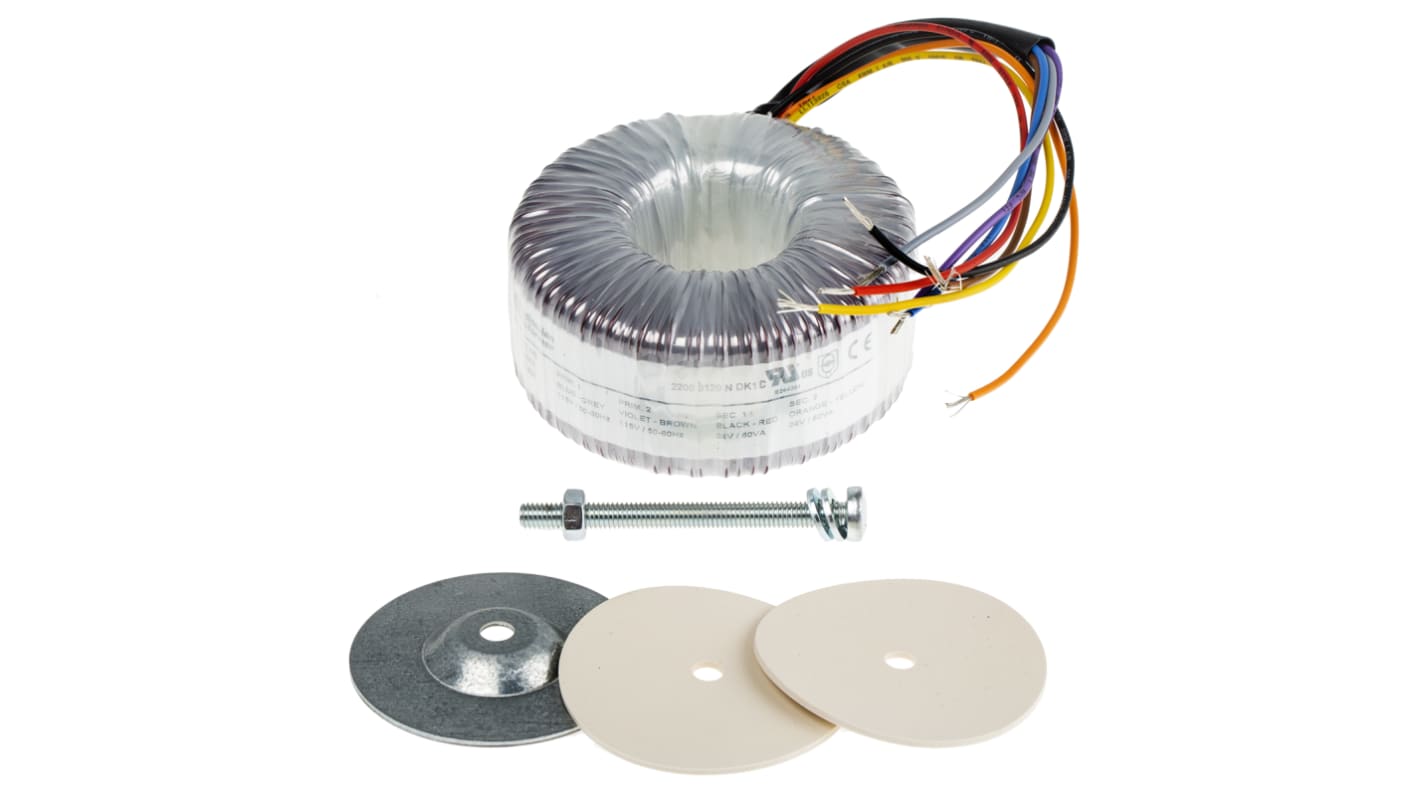

Toroidal Transformers Open 80VA -3000VA
RS Pro offer these open style toroidal transformers designed for use in control circuits and general applications. These high-quality toroidal transformers have low loss and low noise toroidal core. The transformers incorporate primary windings and twin secondary windings which can be connected in series or parallel or used independently.
Features
Environmentally friendly, low energy dissipation
High efficiency, low regulation design
100% electrical and flash tested
High efficiency, low regulation design
100% electrical and flash tested
사양
속성 | 값 |
---|---|
Primary Voltage Rating | 2 x 115V ac |
Secondary Voltage Rating | 2 x 24V ac |
Power Rating | 120VA |
Dimensions | 90 (Dia.) x 48mm |
Minimum Operating Frequency | 50Hz |
Maximum Operating Frequency | 60Hz |
Mounting Type | Surface Mount |
Termination Type | Termination Wire |
Standards Met | IEC 61558-2-6 |
Isolation Voltage | 4kV ac |
Maximum Temperature | +105°C |
