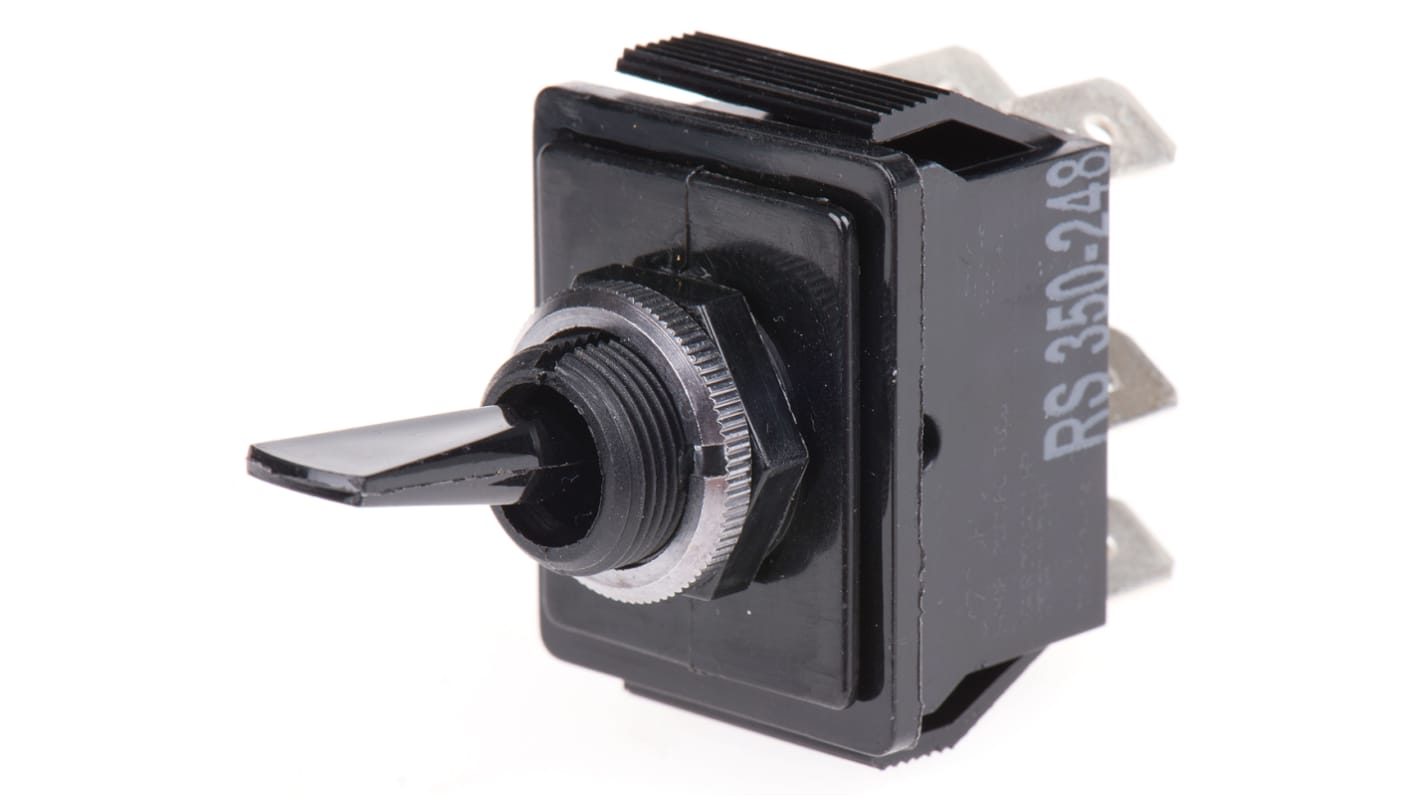

Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, On-Off, DPDT, Tab Terminal
- RS 제품 번호:
- 350-248
- 제조사 부품 번호:
- C1760HOAAF
- 제조업체:
- Arcolectric (Bulgin) Ltd
224 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩9,887.127
| 수량 | 한팩당 |
| 1 - 24 | ₩9,887.127 |
| 25 - 49 | ₩9,680.139 |
| 50 - 99 | ₩9,383.456 |
| 100 - 249 | ₩9,155.769 |
| 250 + | ₩8,955.681 |
- RS 제품 번호:
- 350-248
- 제조사 부품 번호:
- C1760HOAAF
- 제조업체:
- Arcolectric (Bulgin) Ltd
제정법과 컴플라이언스
- COO (Country of Origin):
- TN
제품 세부 사항
Toggle Switches, Std, 16 A Insulated
Insulated toggle switches, moulded in nylon 6.6 and BEAB approved to EN61058-1
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
ENEC, UL recognised component, CSA certified
Approvals
ENEC, UL recognised component, CSA certified
사양
속성 | 값 |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-Off |
| Contact Current Rating | 16 A |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| IP Rating | IP40 |
| Panel Cut Out Diameter | 12.7mm |
| Actuator Length | 16.4mm |
| Actuator Material | PC |
| Panel Cut Out Size | 12.7mm |
| Contact Resistance | 100mΩ |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | Maximum of +85°C |
