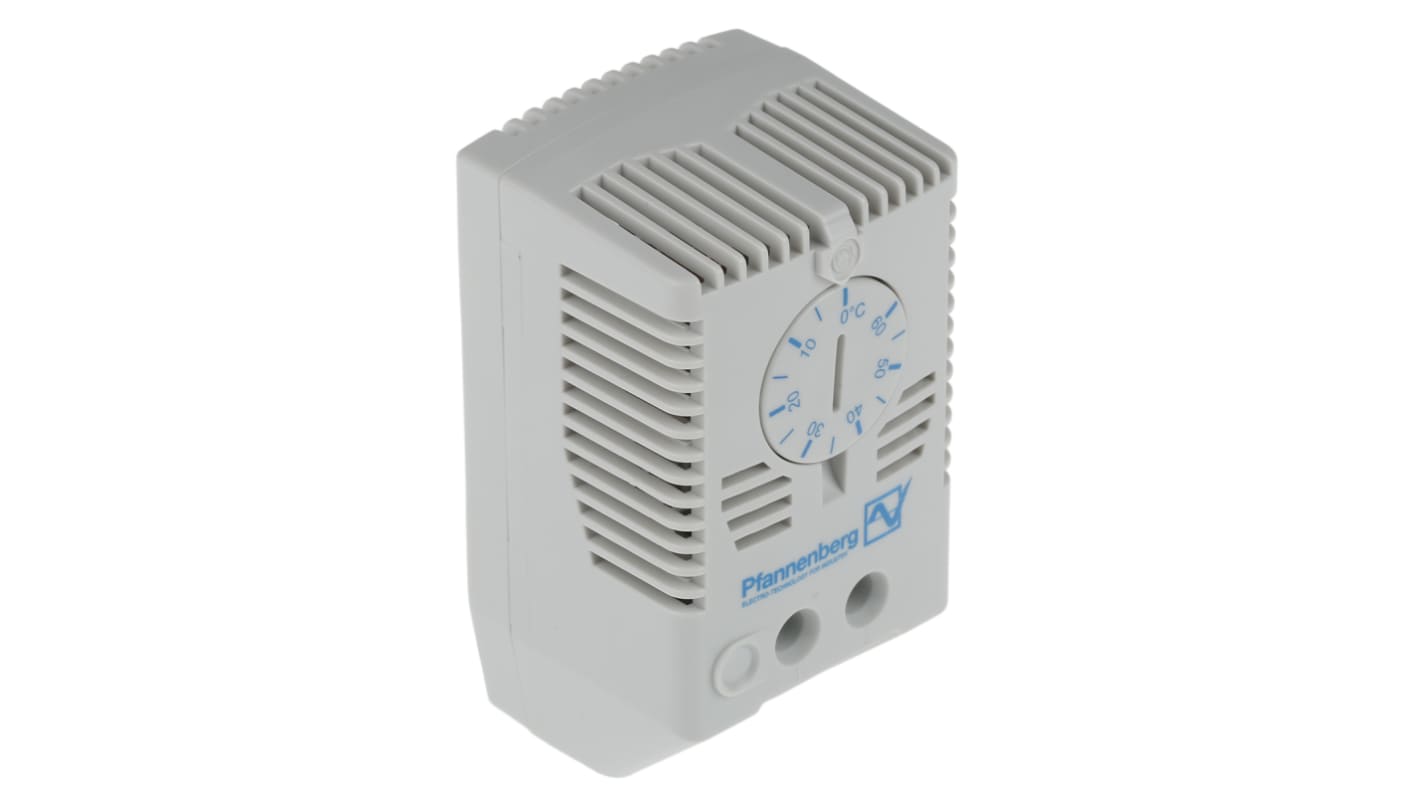

Pfannenberg FLZ NO Enclosure Thermostat, 120 → 240 V ac, 0 → +60 °C
- RS 제품 번호:
- 103-257
- 제조사 부품 번호:
- FLZ530 17121000000
- 제조업체:
- Pfannenberg
250 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩25,899.374
| 수량 | 한팩당 |
| 1 - 4 | ₩25,899.374 |
| 5 - 9 | ₩25,861.426 |
| 10 - 24 | ₩24,988.626 |
| 25 - 49 | ₩24,581.55 |
| 50 + | ₩23,691.502 |
- RS 제품 번호:
- 103-257
- 제조사 부품 번호:
- FLZ530 17121000000
- 제조업체:
- Pfannenberg
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
DIN Rail Thermostats - Pfannenberg FLZ Series
When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans.
Mechanical bi-metallic thermostat for temperature in enclosures
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Approvals
UL (FLZ520 & FLZ530)
사양
속성 | 값 |
|---|---|
| Switch Configuration | NO |
| Supply Voltage | 120 → 240 V ac |
| Maximum Temperature | +60 °C |
| Minimum Temperature | 0 °C |
| Temperature Range | 0 → +60 °C |
| Series | FLZ |
